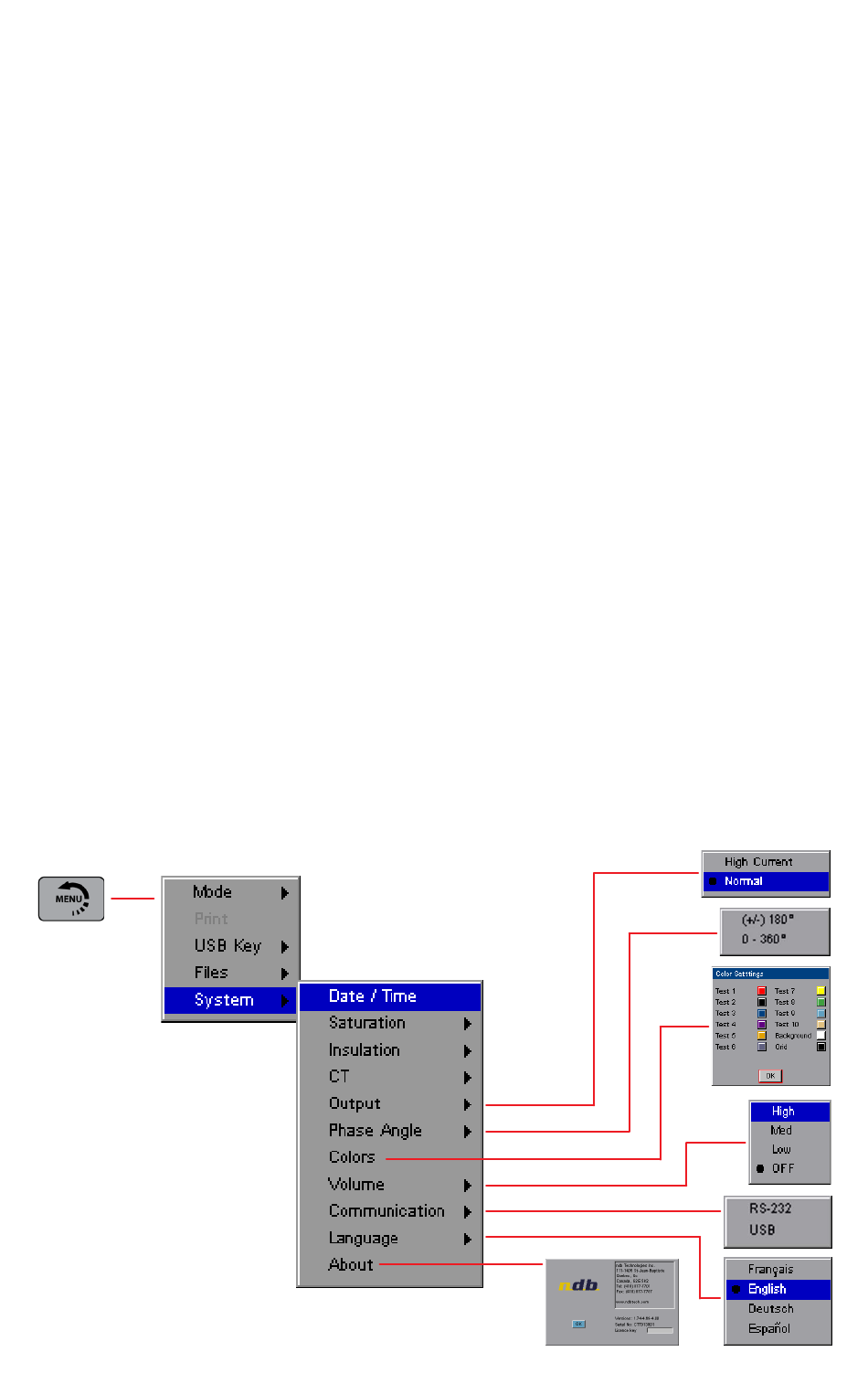

7.2.5 Menu - System
• Output: Selection of the test output power: Normal or High. For the vast
majority of tests, the saturation levels are less than 300mA and by default
the Normal selection is entirely appropriate. Selecting high current provides
higher current for the same saturation voltage levels. The CTT is thus used to
the maximum of its capacity. This use should be temporary and not the norm.
The High Current duty cycle is 5 min on, 5 min off.
• Phase Angle: Select the desired phase display between: ±180° and 0-360°
• Colors: Select the preferred color for the different saturation curves.
• Volume: The CTT will emit an audible warning to alert the operator that the
high voltage tests are in progress. Adjust the volume to your preference.
• Communication: Data export to a computer can be performed using a USB key,
DB9 (RS232) cable or USB cable. Prior to perform data transfer with the DB9 or
USB cable, the correct communication must be selected.
• Language: Select the preferred language.
• About: Displays information of ndb Technologies, software version and the
instrument serial number. The factory reset is also performed from the about
menu, refer to section 11.4.
