NDB Technologies CTT Series User Manual page 12

7. User Interface Overview
7.1 Tabs Overview

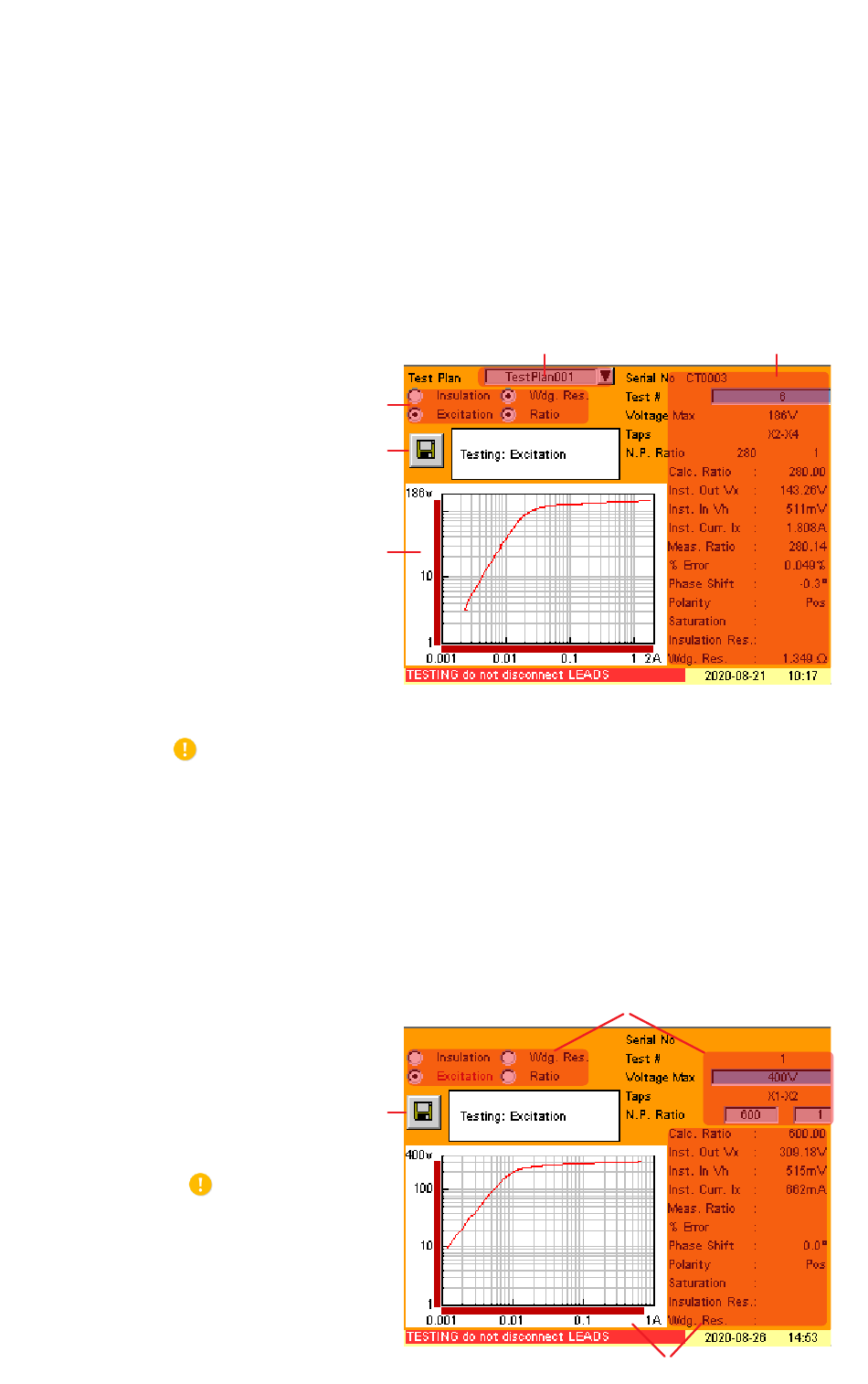

7.1.1 F1-Test tab (CTTx5 only)
The F1-Test tab found on the CTTx5 is where all tests (in automatic mode) will be
performed. The operator will select an existing test plan from the list, start the test,
consult results as the sequence
progresses and finally save to
memory.
1. Displays information of the
CT under test along with
live tests values including
saturation graph.
2. List of available test plans.
3. Tests to be performed are
checked. The test being
performed will flash in red.
4. Saves all tests results to
memory.
of the device under test is mandatory).
7.1.2 F1-Test tab (CTTx2 only)
The F1-Test tab found on the CTTx2 is where all tests (in automatic mode) will be
performed. The operator will configure test parameters, start a test, consult results
as the sequence progresses and finally save to memory.
1. Test parameters: (Left) check the test(s) to be performed, (right) type the max
test voltage and name plate
ratio.
2. Live tests values including
saturation graph.
3. Saves all tests results to
memory.
CT Info tab must be filled
prior saving (serial number
of the device under test is
mandatory).
C T T S e r i e s
Note the F2-CT Info tab must be filled prior saving (serial number
Note the F2-
