7.1.5 F4-Table tab

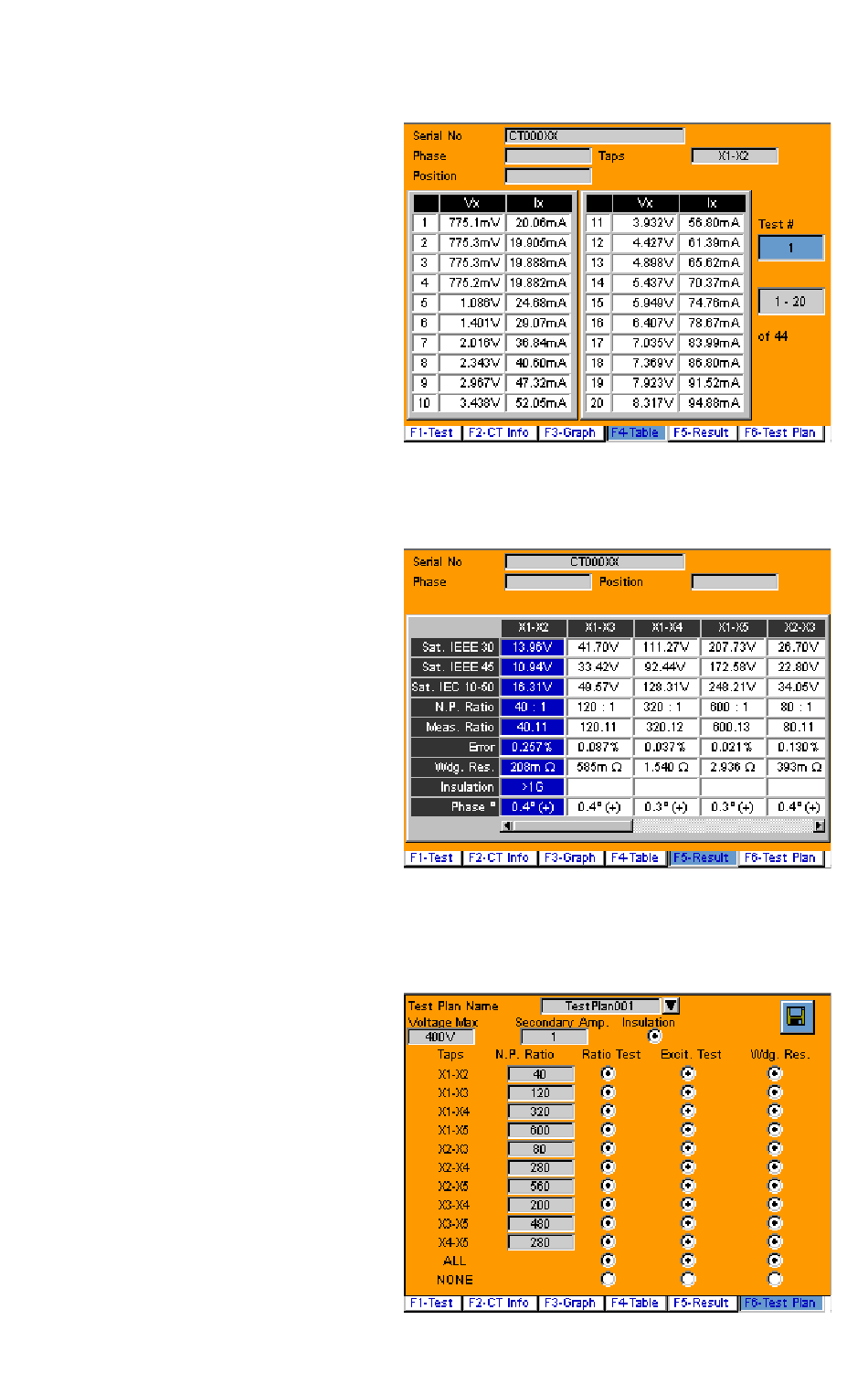

The F4-Table tab displays every
measurement sample (voltage and
current) taken while performing
the saturation test, for every ratio
combination. Serial number, phase
and position informations are
copied from the F2-CT Info tab.
7.1.6 F5-Result tab
The F5-Result tab displays every
test results of a completed test in
a single page. Rotate the knob to
scroll.
7.1.7 F6-Test Plan tab (CTTx5 only)
The F6-Test Plan tab (CTTx5 only)
is where a test plan is created
prior to testing a CT in automatic
mode. The test plan can be saved
in memory and recalled later on.
Refer to section 8.2.3 for more
information on how to create a
test plan.
