8.2.2 Device under test information

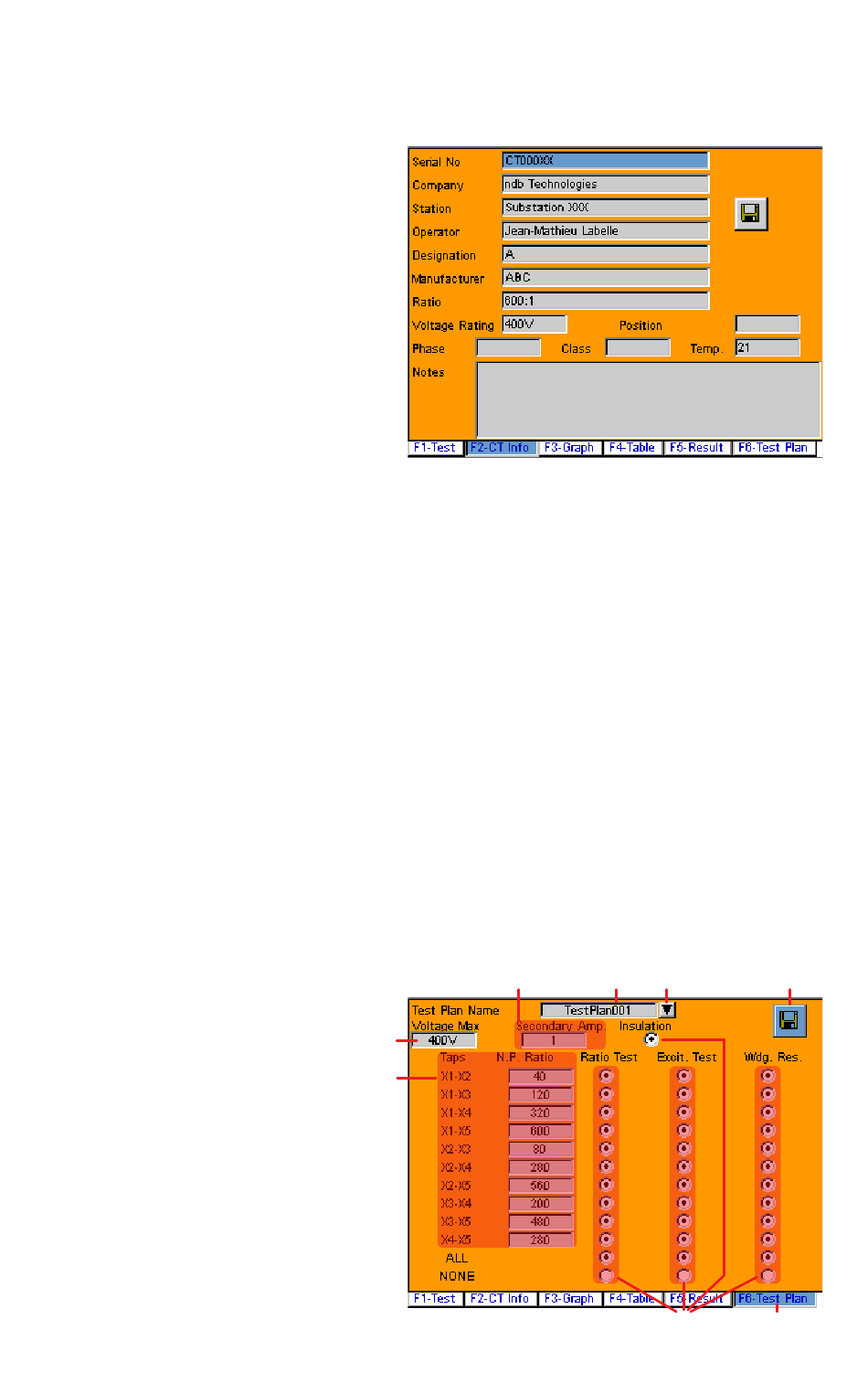

1. Press the Menu key.
2. Selection Mode - Automatic.
3. Go to the F2-CT Info tab.
4. Fill in the CT's information. Note
the Serial No field is mandatory
for saving a test report to
memory.
8.2.3 Create a test plan
8.2.3.1 CTTx5 test plan
Creating a test plan is mandatory when using the automatic mode. All test
parameters of a test plan can be saved to memory. A test plan can be created,
saved, edited later and re-saved under a new name.
1. Go to F6-TestPlan tab.
2. From the drop-down menu, select Blank to create a new test plan.
3. Select the Test Plan Name field, type a name under which the test plan will be
saved.
4. Set secondary current, typically 1 or 5 Amps.
5. Set the maximum
voltage either by rotating
the knob, or by typing in the
voltage. The max voltage
must be set according to
the specification of the CT's
largest winding, typically X1-
X5. Refer to section 11 for
more information on how to
set the max voltage.
