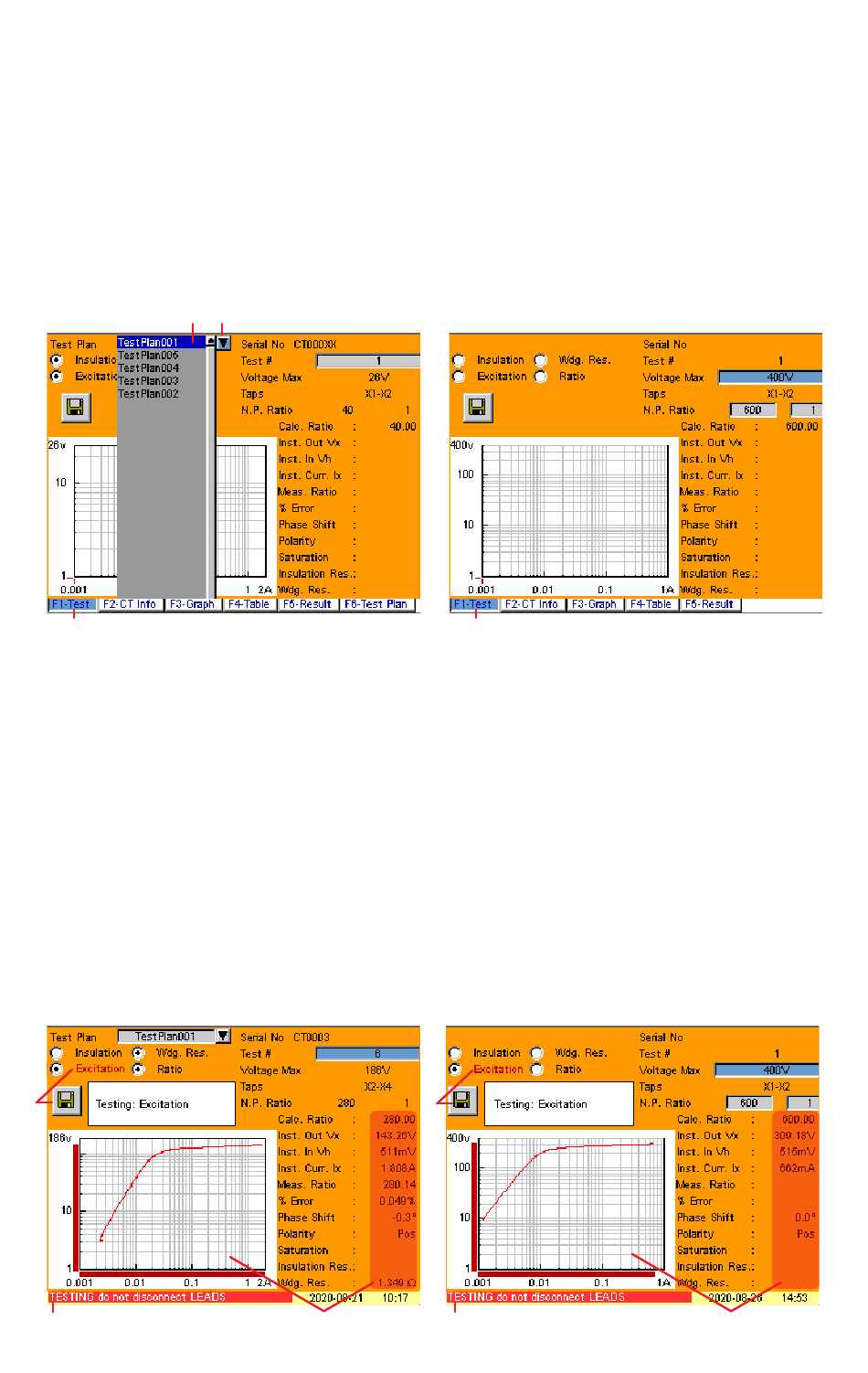

8.2.4 Run a test
1. Go to F1-Test tab.
2. Open the drop-down menu (CTTx5 only).
3. Select the appropriate test plan (CTTx5 only).
4. On the CTT, press the Start/Test key.
3
CTTx5
1
5. The instrument will run all selected tests. The test being performed will flash in
red, and a test box will be displaying the name of test being performed.
6. Live test values will be displayed on the right side of the screen. Saturation
curve(s) will be displayed in the left side graph.
7. A status message will be displayed at the bottom left of the screen.
8. If for any reason the test needs to be stopped before the end of the sequence,
press the Start/Test key. Alternatively, the emergency stop button can be used.
