Sunricher SR-2834-5C-DMX+RF Manual

RF + DMX512 RGB+Dual Color Controller
Important: Read All Instructions Prior to Installation

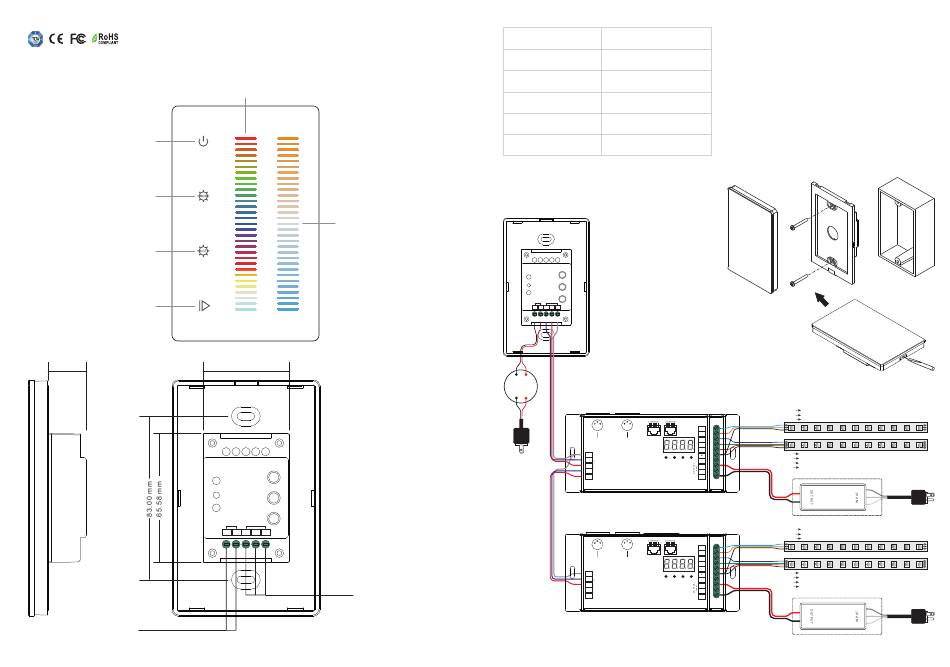

Function introduction
RGB slider, slide touch to select R/G/B color
Click to turn on/off
Press and hold down to increase/
decrease light intensity of RGB
channels
Press and hold down to increase/
decrease light intensity of dual
color channels
Click to play / pause the 10
built-in effects, press and hold
to speed up/down the effects
19.4 mm
DC Power input
09.284DU.04752.001
Dual color slider, slide touch to
adjust color temperature between
Warm White and Cool White
Front side
43.58 mm
DMX512 Wall Panel
Controller
DC INPUT DMX OUTPUT
V- V+ D- D+ GND
DMX512 signal output
Back side
Product Data
Output Signal DMX512+RF signal
Power Supply
12-24VDC
Power consumption < 20 mA
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
75x120x29.1mm
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
DMX512 Wall Panel
Controller
DC INPUT DMX OUTPUT
V- V+ D- D+ GND
12-24VDC
PSU
DMX in/out DMX in/out
3 3 DMX Signal
1 1
2 2
Pin1:Data+
Pin2:Data-
Pin7:GND
DMX Signal Pin1:GND DMX Signal Pin1:GND Pin8:GND
Female Pin2:D- Male Pin2:D-
Pin3:D+ Pin3:D+
GND
AC 100-240V
DMX512 & RDM Decoder
D-
Back Enter Up
D+
D-
D+
DMX in/out DMX in/out
3 3 DMX Signal
1 1
2 2
Pin1:Data+
Pin2:Data-
Pin7:GND
DMX Signal Pin1:GND DMX Signal Pin1:GND Pin8:GND
Female Pin2:D- Male Pin2:D-
Pin3:D+ Pin3:D+
GND
DMX512 & RDM Decoder
D-
Back Enter Up
D+
D-
D+
• Touch sensitive
• Glass interface(white & black)
• Standard DMX512 Signal output
• Control RGB+CCT color
• Control 1 zone
• Waterproof grade: IP20
Installation
CW- CW-
WW- WW-
V+ V+
RJ45
5/W2-
4/W1-
3/B-
2/G-
1/R-
B- B-
G- G-
Down V+
R- R-
V+ V+ V+
GND
GND
V- V+
L
V+ 12V/24V
N
CV PSU
V-
G
CW- CW-
WW- WW-
V+ V+
RJ45
5/W2-
4/W1-
3/B-
2/G-
1/R-
B- B-
G- G-
Down V+
R- R-
V+ V+ V+
GND
GND
V- V+
L
V+ 12V/24V
N
CV PSU
V-
G
CCT Color LED Strip
RGBW LED Strip
RGB LED Strip
CCT Color LED Strip
RGBW LED Strip
RGB LED Strip
