Sunricher SR-2834DMX-5C Quick Start Manual

RF + DMX512 RGB+Dual Color Controller
Important: Read All Instructions Prior to Installation

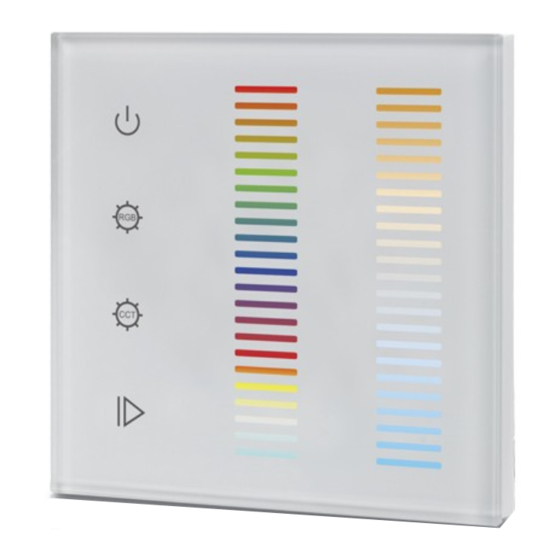

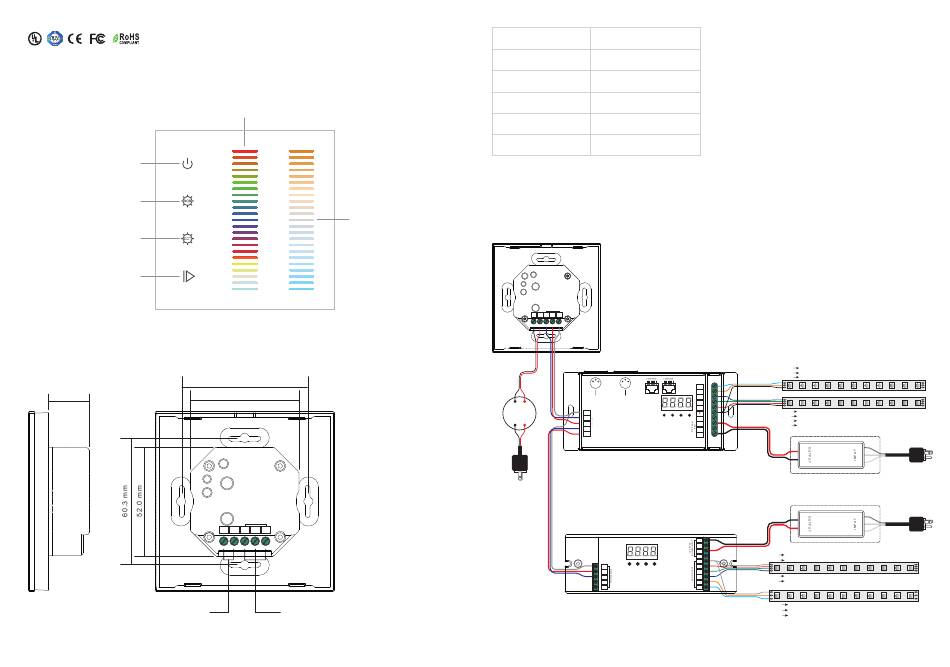

Function introduction

RGB slider, slide touch to select R/G/B color
Click to turn on/off
Press and hold down to
increase/decrease light
intensity of RGB channels
Press and hold down to
increase/decrease light
intensity of dual color
channels
Click to play / pause the
RGB 10 built-in effects
19.4 mm
DC Power input
Dual color slider, slide touch to
adjust color temperature between
Warm White and Cool White
Front side
60.3 mm
52.0 mm
DMX512 Wall
Panel Controller
DMX OUTPUT
V- V+ D- D+ GND
DMX512 signal output
Back side
Product Data
09.2845C.04717
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Wiring diagram

DMX512 Wall
Panel Controller
DMX OUTPUT
V- V+ D- D+ GND
DMX
12-24VDC
PSU
AC 100-240V
• Touch sensitive
DMX512 signal
• Glass interface(white & black)
12-24VDC
• Standard DMX512 Signal output
• Control RGB+CCT color
20 mA
• Control 1 zone/area
• Waterproof grade: IP20
0-40°C
8% to 80%
86x86x29.1mm
DMX in/out DMX in/out
3 3 DMX Signal
1 2 2 1 RJ45
Pin1:Data+
5/W2-
Pin2:Data-
Pin7:GND
Signal Pin1:GND DMX Signal Pin1:GND
Pin8:GND 4/W1-
Female Pin2:D- Male Pin2:D-
Pin3:D+ Pin3:D+
3/B-
2/G-
1/R-
GND
DMX512 & RDM Decoder
D-
Back Enter Up Down V+
D+
V+
D-
GND
D+
GND
V-
V-
V-
V-
V+
V+
+
GND 1/R-
Back Enter Up Down
D1+ 2/G-
3/B-
D - 1 DMX512 & RDM Decoder
D + 2 4/W-
D - 2 5/A-
CW- CW-
WW- WW-
V+ V+ CCT Color LED Strip
RGBW LED Strip
B- B- RGB LED Strip
G- G-
R- R-
V+ V+
V+
L
V+ 12V/24V
N
CV PSU
V-
G
L
V+ 12V/24V /36V
N
CV PSU
V-
G
V+
V+ V+
RGB LED Strip
R- R-
G- G-
B- B-
CCT LED Strip
V+ V+
WW- WW-
CW- CW-
