Sunricher SR-2834B Quick Start Manual

RF Dual Color Wall Mounted Controller
Important: Read All Instructions Prior to Installation

Function introduction

Dual color slider, touch to adjust color temperature
between Warm White and Cool White
Click to turn on/off
Press and hold down to save
colors;Click to recall the saved
19.4 mm
DC Power input
Brightness slider, touch to adjust
brightness

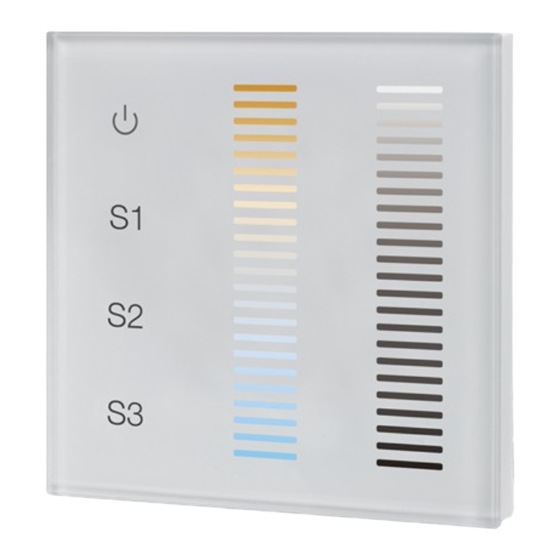

Front side
60.3 mm
52.0 mm
DC Version AC Version
RF Wall RF Wall
Panel Controller Panel Controller
V- V+
AC Power input
Back side
Product Data
09.284CE.04714
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers, radio frequency: 869.5/434MHz
• Control CCT color
• Control 1 zone of RF receiver
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

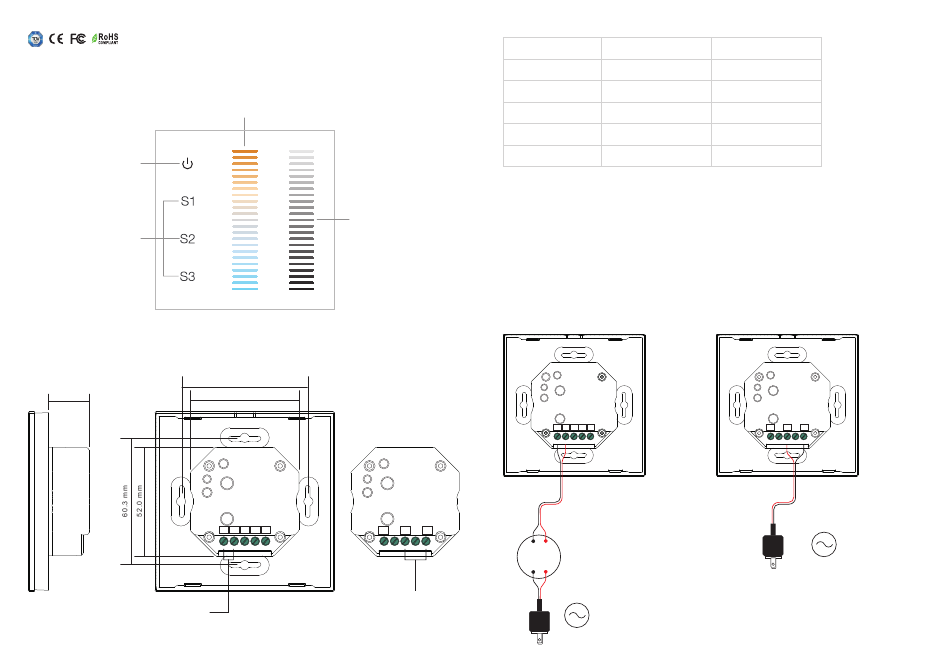

Wiring diagram

DC Version
RF Wall
Panel Controller
V- V+
L N
12-24VDC
PSU
AC Power
50/60Hz
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
86x86x29.1mm 86x86x29.1mm
AC Version
AC Version
RF Wall
Panel Controller
L N
AC 100-240V
AC Power
50/60Hz
