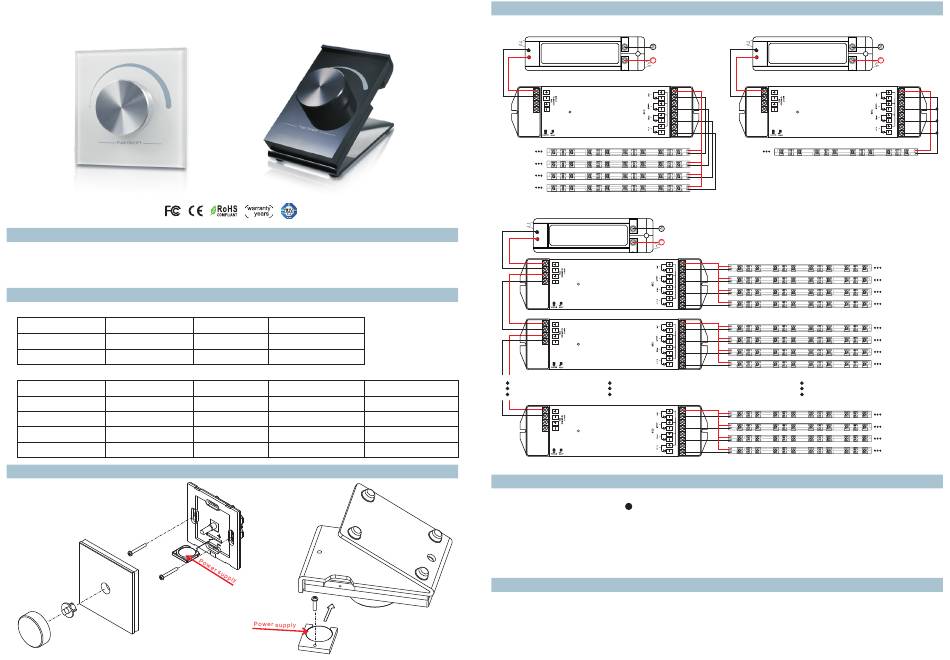

RF Single color controller
SR-2836DIM & SR-2836DDIM

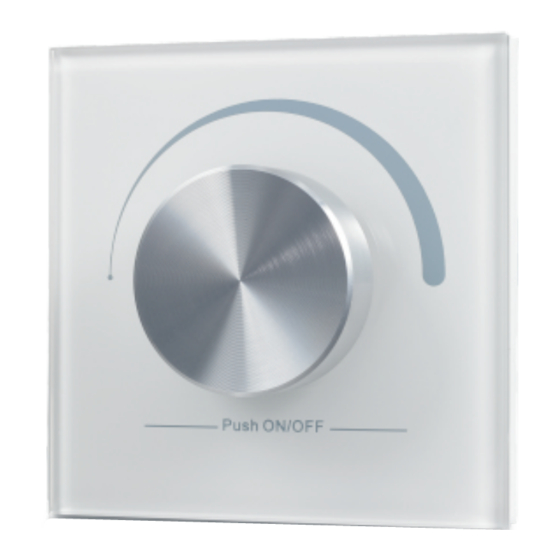

SR-2836DIM
Feature
SR-2836DIM & SR-2836DDIM are RF controllers for single color lighting. Each white can achieve 256 levels
brightness adjustment. Key part can be uninstall every easily to change battery and frames from other factory.
Receivers work with WIFI-RF convertor to be controlled by smart phone
Parameter
Remote
Operation Voltage
Part No.
SR-2836DIM
3VDC
Receiver
Input Voltage
Part No.
SR-1009FA
12-36VDC
SR-1009EA
12-36VDC
SR-1009FA3
12-36VDC
SR-1009FA7
12-36VDC
Installation
SR-2836DIM
SR-2836DDIM
5
Operation
Remarks
Frequency
916.63MHz
RF Wireless
Output Current
Output Power
4x5A
4x(60-180)W
Constant voltage
4x8A
4x(96-288)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA
4x(8.4-25.2)W
SR-2836DDIM
Wiring diagram
1)Receiver Connection Diagram for Single Unit
Single ColorLED Strip
Single ColorLED Strip
Single ColorLED Strip
Single ColorLED Strip
2)
Receiver
Connection Diagram for Multiple Units
Remarks
Constant current
Constant current
Operation
a.Learning
Press shortly the learning Key
lights will blink on the receiver. Do the same for the other receivers if you use them, you can add as many
optional receivers as you want
b.Operation
-Short push rotary button to switch ON/OFF
-Adjust dim brightness by the rotary button from left to right 1-100%
-Adjust dim brightness by the rotary button from right to left 100-1%
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Single ColorLED Strip
4x5A
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
on the receiver, then push the rotary button .Once successfully learn, the LED
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
4x10A
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Advertisement
Table of Contents
Related Manuals for Sunricher SR-2836DIM
Summary of Contents for Sunricher SR-2836DIM
- Page 1 Power Supply 110V-230VAC 12-36VDC SR-2836DIM & SR-2836DDIM are RF controllers for single color lighting. Each white can achieve 256 levels brightness adjustment. Key part can be uninstall every easily to change battery and frames from other factory. Single Color LED Strip...
- Page 2 4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product. 5) Never connect any cables while power is on and always assure correct connections to avoid short circuits before switching on. Please ensure that the cable is secured tightly in the connector 7) For update information please consult your supplier.
- Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
