Round Fountain
Basin
Coping

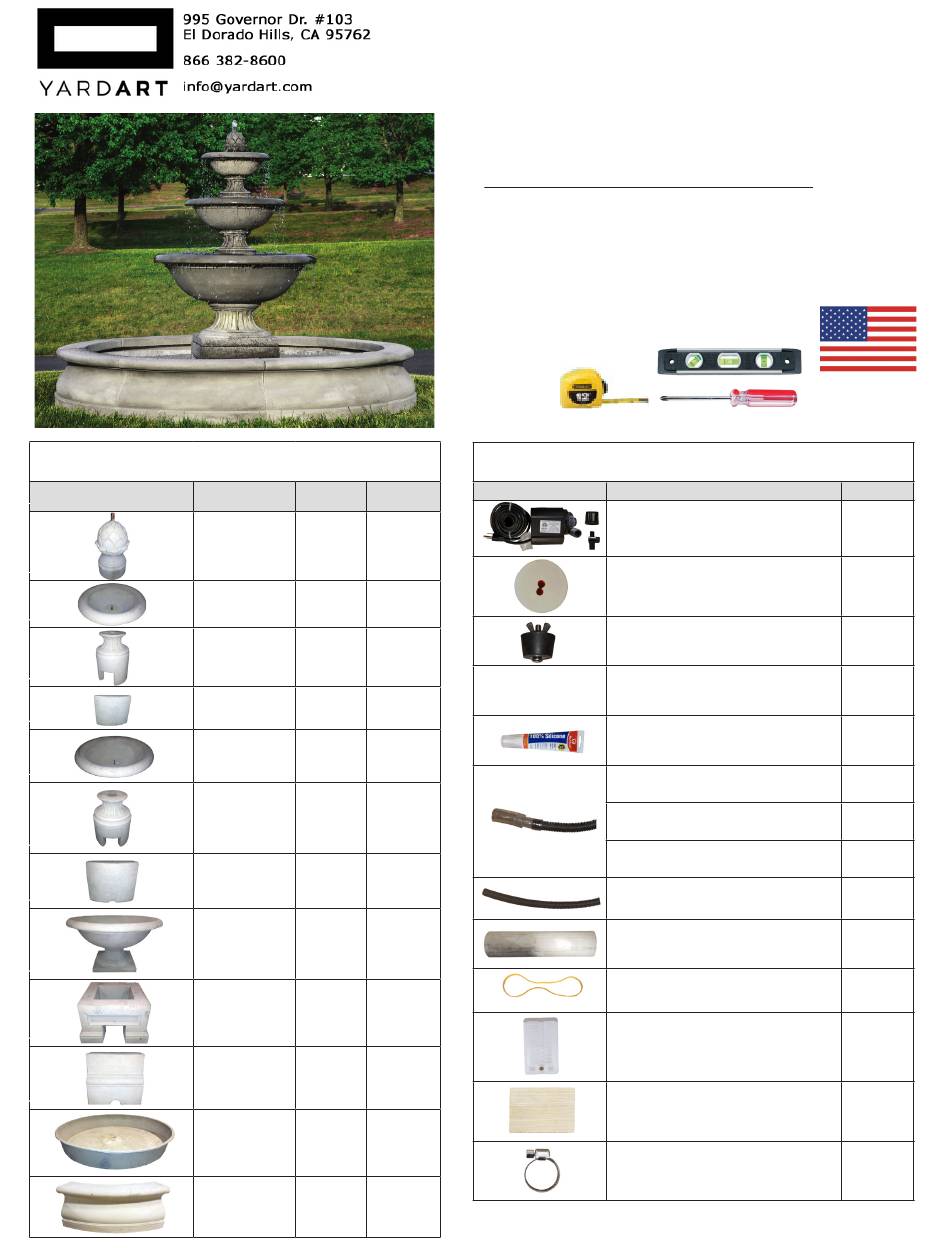

FT-272 Fonthill in Basin Fountain
Fountain Information:
• Professional installation is recommended for this fountain!
• This fountain holds approximately 240 gallons of water.
• This fountain uses a medium fountain cover: FTNCOV-MED
• Compatible with #10 Refill Device and LED kit
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPP800 - 800 GPH Pump 16 FT cord length
Tools Required:
Bubble Level
Screwdriver
Tape Measure
Component
Quantity
Item #
FT-271A
1
FT-271B
1
FT-271C
1
FT-271D
1
FT-271E
1
FT-271F
1
FT-271G
1
P-712
1
FT-271H
1
FT-271I
1
FGB-2020
1
FT-124K
8
Assembly Instructions
Pump Kit Parts List
Component
PK800
#10 Stopper with double hole
#7 Drain Stopper
Basin Plug (Already installed)
n/a
2.8 oz. tube of silicone
Approx. 2" length of 3/4" clear vinyl
Approx. 2" length of 5/8" clear vinyl
Approx. 72" length of 1/2" black
non-kink tubing
Approx. 18" length of 1/2" black
non-kink tubing
13.5" length of 1-1/2" PVC pipe to be
used as stand pipe
Rubber band
Wedges
Wood Spacers for Installation
Hose Clamps
Proudly
MADE IN USA
Quantity
2
1
2
1
1
2
tubing
2
tubing
2
1
1
1
10
8
3
rev 9/1/2022
