YARDART FT-423 Assembly Instructions Manual

Savannah estate fountain
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

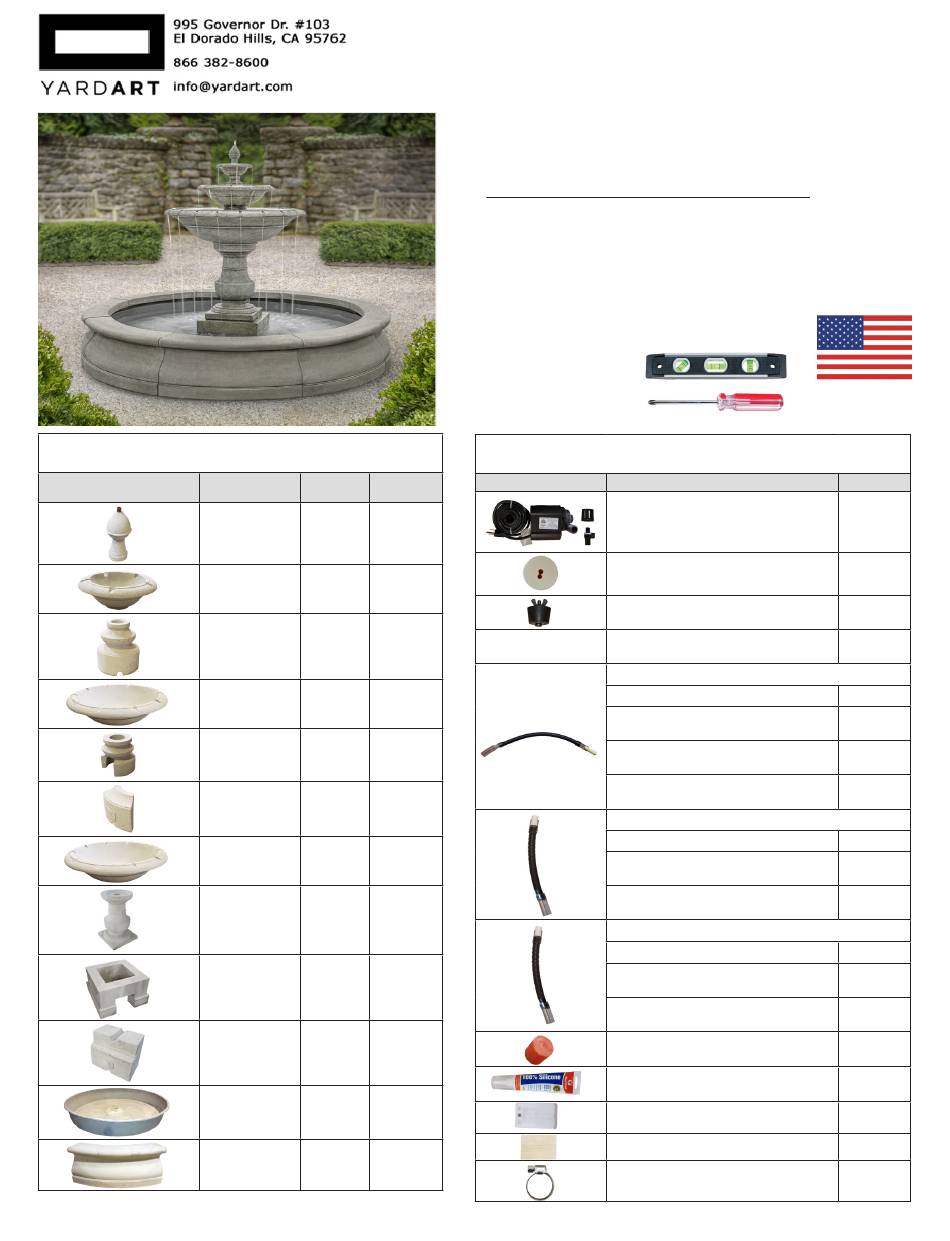

Fountain Components
Item Description
Savannah
Fountain - Finial
Savannah
Fountain - Sm
Bowl
Savannah
Fountain-Sm
Pedestal
Savannah
Fountain - Med
Bowl
Savannah
Fountain - Med
Pedestal
Savannah
Fountain - PH
Door
Savannah Estate
Fountain - Lg
Bowl
Savannah Estate
Fountain - Lg
Pedestal
Savannah Estate
Fountain -
Pedestal Base
Savannah Estate
Fountain -
Pedestal Base
Door
Round 7.5'
Fiberglass
Fountain Basin
Newport Ftn. -
Coping
FT-423 Savannah Estate Fountain
Fountain Information:
• Professional installation is recommended for this fountain!
• This fountain holds approximately 240 gallons of water.
• This fountain uses a medium fountain cover but does not cover the basin:
FTNCOV-MED
• Compatible with #10 Refill Device and LED kit
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPP800 - 800 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-388A
1
FT-388B
1
FT-388C
1
FT-388D
1
FT-388E
1
FT-388F
1
FT-423G
1
FT-423H
1
FT-423I
1
FT-423J
1
FGB-2020
1
FT-124K
8
Assembly Instructions
Pump Kit Parts List
Component
PK800
#10 Stopper
#7 Wing nut drain stopper
(DRAIN-7)
Metal plug for hole in side of basin
(already installed in basin)
Tubing Assemblies 1 and 2
Approx. 2" length of 1/2" CPVC pipe
Approx. 2" length of 3/4" clear vinyl
tubing
Approx. 2" length of 5/8" clear vinyl
tubing
Approx. 60" length of 1/2" black
non-kink tubing
Tubing Assembly 3
Approx. 1" length of 1/2" CPVC pipe
Approx. 1" length of 5/8" clear vinyl
tubing
Approx. 15" length of 1/2" black
non-kink tubing
Tubing Assembly 4
Approx. 1" length of 1/2" CPVC pipe
Approx. 1" length of 5/8" clear vinyl
tubing
Approx. 10" length of 1/2" black
non-kink tubing
5/8" Red Cap
2.8 oz. tube of silicone
Wedges
Wood Spacers for Installation
Hose Clamps
Proudly
MADE IN USA
Quantity
2
1
1
1
1
1
2
1
1
2
1
1
2
1
1
1
22
8
5
rev 03/21/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the FT-423 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YARDART FT-423

Summary of Contents for YARDART FT-423

  • Page 1 FT-423 Savannah Estate Fountain Assembly Instructions Fountain Information: • Professional installation is recommended for this fountain! • This fountain holds approximately 240 gallons of water. • This fountain uses a medium fountain cover but does not cover the basin: FTNCOV-MED •...
  • Page 2 FT-423 Savannah Estate Fountain Assembly Instructions Professional installation is recommended for this fountain! Assemble your fountain on a level surface using crushed stone, gravel, or cement pad as the base. Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
  • Page 3 FT-423 Savannah Estate Fountain Assembly Instructions Step 10 – Insert the CPVC ends of Tubing Assemblies 1 and 2 into the two CPVC couplings in the bottom of the large bowl (FT-423G) Step 11 – While lowering the large bowl (FT-423G) onto the large pedestal (FT-423H), feed the loose ends of Tubing Assemblies 1 and 2 through the pedestal and into the pump house (FT-423I).
  • Page 4 FT-423 Savannah Estate Fountain Assembly Instructions Step 23 - Connect the finial (FT-388A) to the inside of the small bowl (FT-388B). Note: The finial and small bowl fit together tightly. Gently rotate the finial left and right while pushing it into the bowl until the two pieces are secure.
  • Page 5 FT-423 Savannah Estate Fountain Assembly Instructions Step 28 - Place 1 piece of coping (FT-124K) directly against the fiberglass basin (FGB-2020). Step 29 - Place 1 wood spacer against the bottom outer edge of the first piece of coping. 29a - Leave about 1” of the spacer sticking out for easy removal.

  • Page 6: Maintenance

    Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - Ensure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
