CanyCom SC75PD Operator's Manual page 44

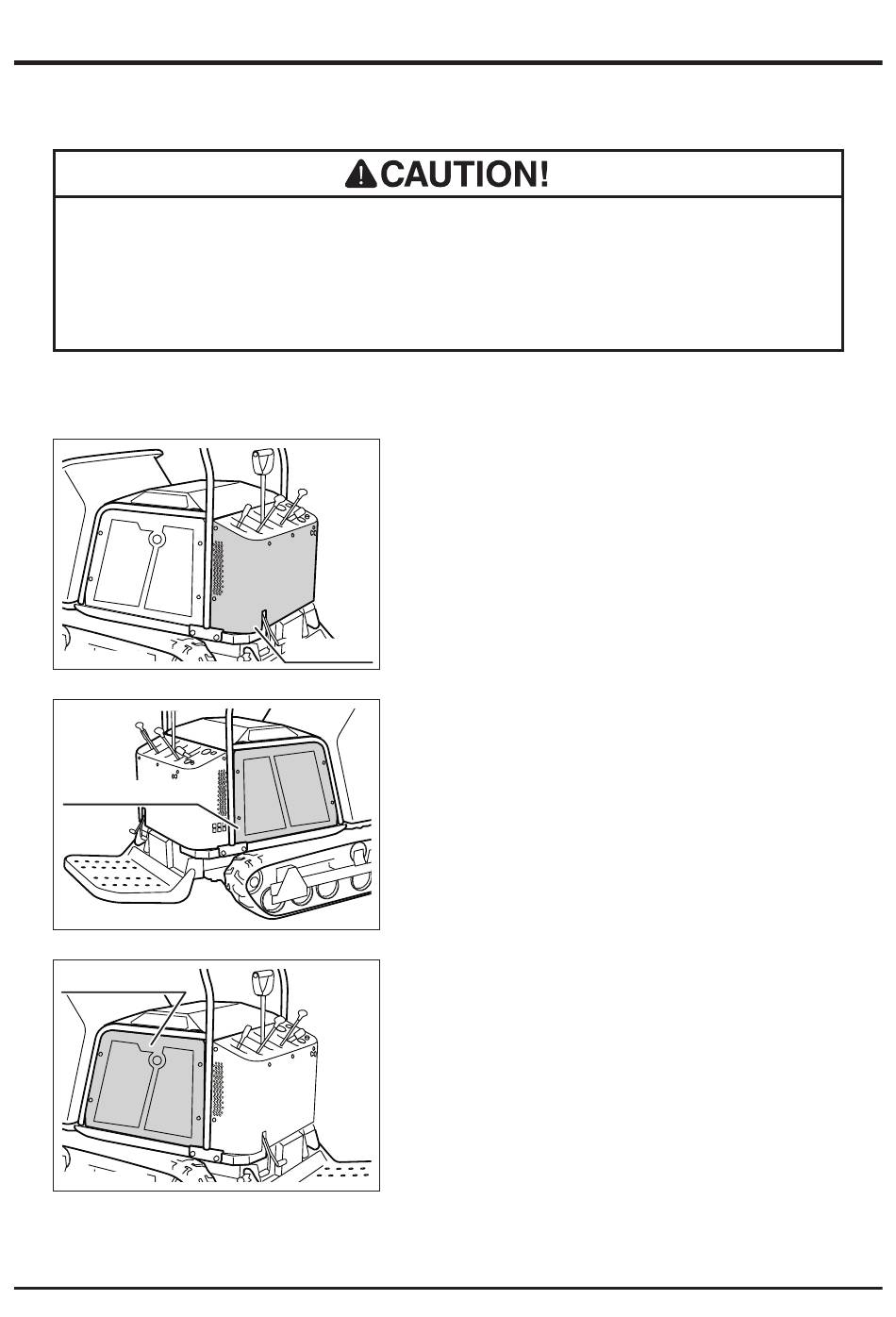

Removing and Installing Body Panels
• Cut or pinch hazard exists when removing or installing body panels; beware of
sharp edges and pinch points.
• Make certain to reinstall panels after removing for repairs or inspection.
Engine Compartment
3570M-0505-010E
Side Panel (Right)
3570M-0505-020E
Side Panel (Left)
3570M-0505-030E
Maintenance
Removing the Back Panel
1. Unfasten (9) bolts to remove the back panel.
Installing the Back Panel
1. Hold the back panel in place and fasten bolts
to install the back panel.
Back Panel
Removing the Side Panel (Right)
1. Unfasten (4) bolts to remove the right side
panel.
Installing the Side Panel (Right)
1. Hold the right side panel in place and fasten
bolts to install the right side panel.
Removing the Side Panel (Left)
1. Unfasten (4) bolts to remove the left side
panel.
Installing the Side Panel (Left)
1. Hold the left side panel in place and fasten
bolts to install the left side panel.
-35-
5
