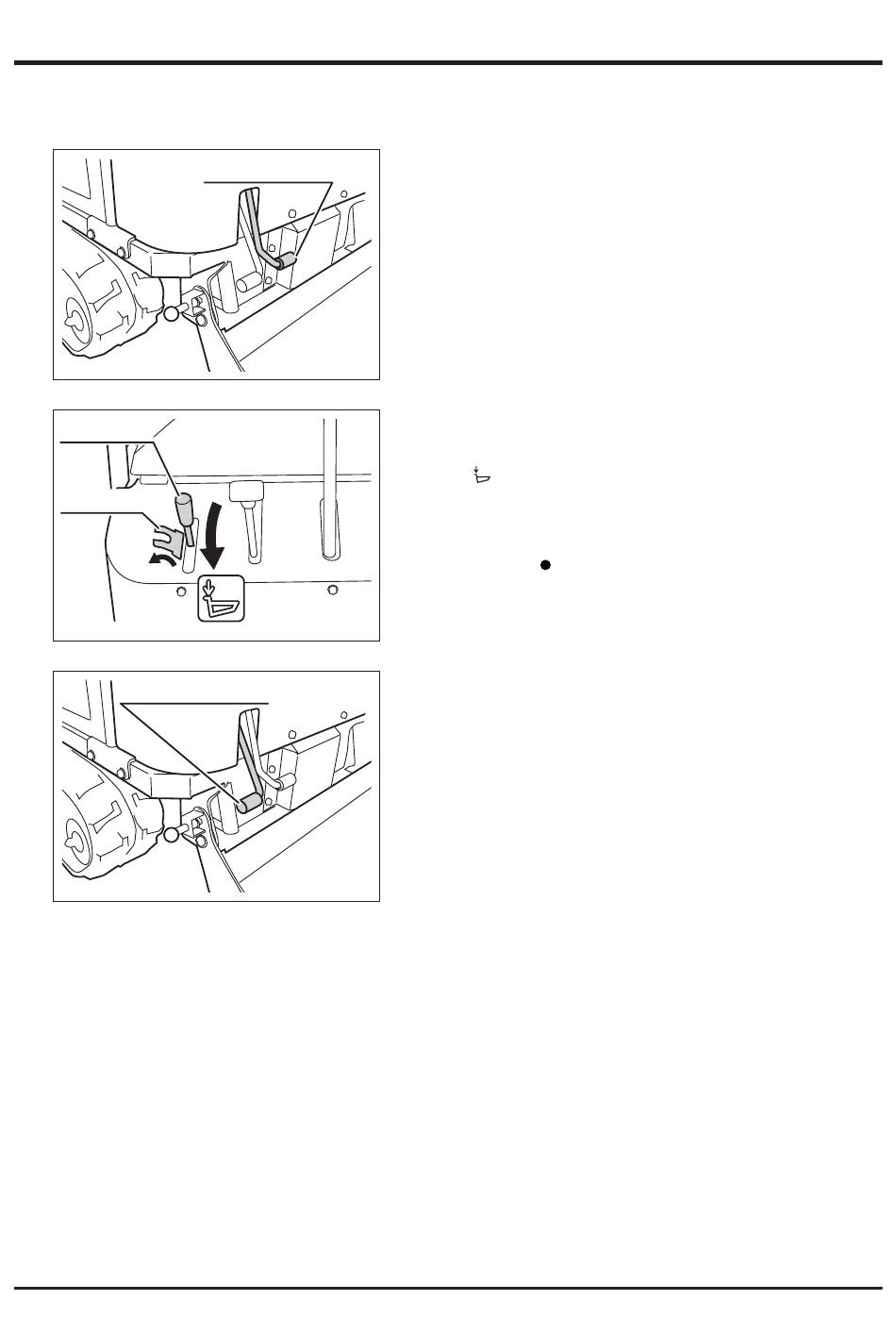

Dump Pedal (Up)
3570M-0403-030E
Dump Lever
Lock Plate
3570M-0403-040E
Dump Pedal (Down)
3570M-0403-050E
Operation
Raising the Bucket with Dump Pedal
2. Turn the lock plate on the dump lever to the
side so that the dump lever can be moved.
Dump pedal is linked to the dump lever.
3. Step lightly on the dump pedal (up) to raise
the bucket.
4. When the bucket reaches its upper limit, a
hissing noise is heard; release the pedal.
Lowering the Bucket with Dump Lever
5. Move the dump lever gradually toward
[ (down)] to lower the bucket.
6. When the bucket reaches its lower limit, a
hissing noise is heard; move the dump lever
back to [
7. Turn the lock plate back in place to lock the
dump lever.
Lowering the Bucket with Dump Pedal
5. Step lightly on the dump pedal (down) to
lower the bucket.
6. When the bucket reaches its lower limit, a
hissing noise is heard; release the pedal.
7. Turn the lock plate back in place to lock the
dump lever.
