Belden HIRSCHMANN Octopus II User Manual

Managed ip65/67 switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Installation
Managed IP65/67 Switch
Octopus II
Installation Octopus II
Technical support
Release 10 04/2023
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIRSCHMANN Octopus II and is the answer not in the manual?

Questions and answers

Related Manuals for Belden HIRSCHMANN Octopus II

Summary of Contents for Belden HIRSCHMANN Octopus II

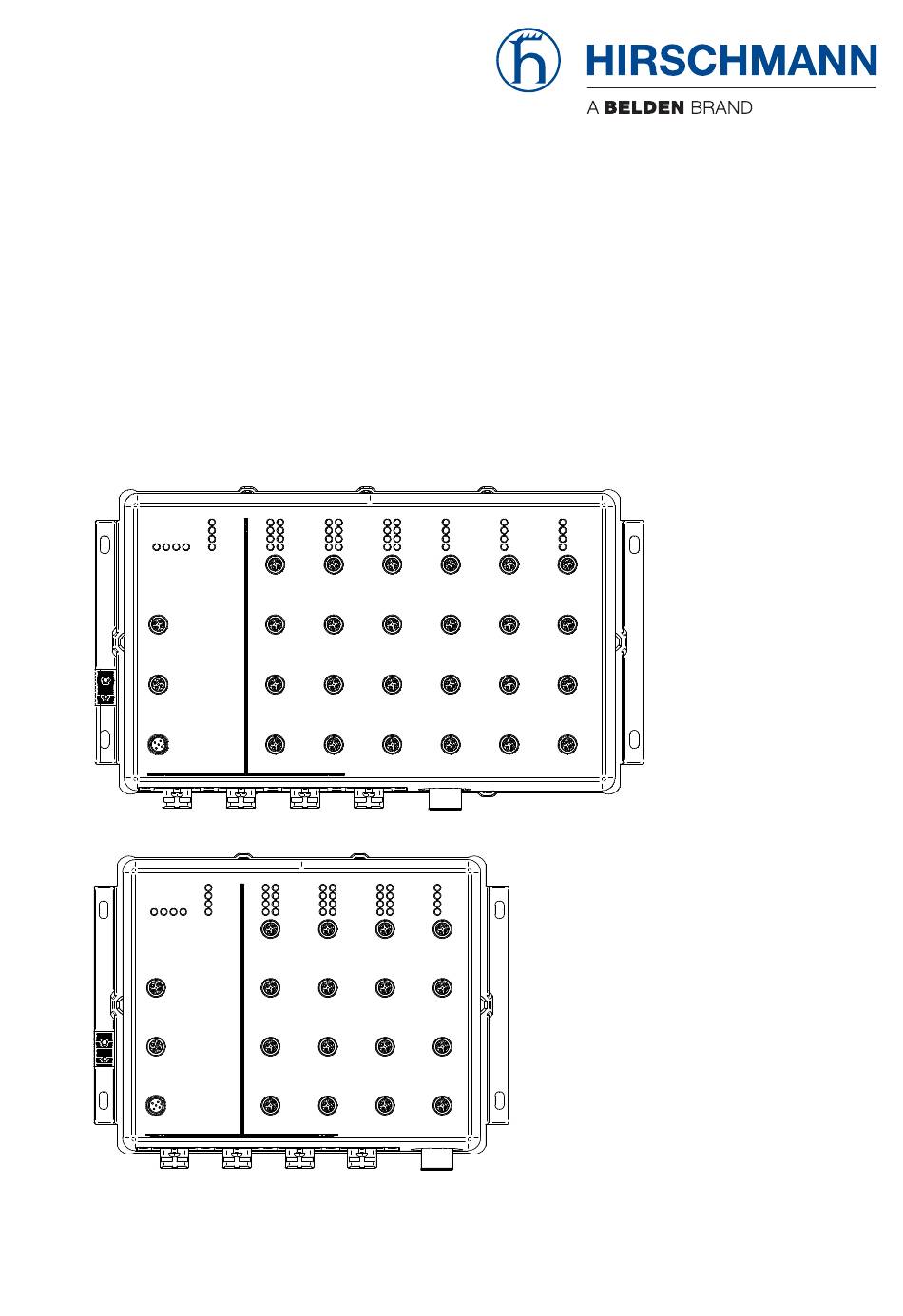

  • Page 1 User Manual Installation Managed IP65/67 Switch Octopus II Installation Octopus II Technical support Release 10 04/2023 https://hirschmann-support.belden.com...
  • Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...

  • Page 3: Table Of Contents

    Contents Important information Safety instructions About this manual Description General description Device name and product code Device view Power supply 1.4.1 Supply voltage with the characteristic value BB 1.4.2 Supply voltage with the characteristic value HH 1.4.3 Supply voltage with the characteristic value FF 1.4.4 Supply voltage with the characteristic value QQ 1.4.5 Supply voltage with the characteristic value PP 1.4.6 Supply voltage with the characteristic value K9...
  • Page 4 Checking the package contents Installing and grounding the device 2.2.1 Installing the device 2.2.2 Grounding the device Connecting the ferrite Connecting the power supply and the signal contact lines 2.4.1 Supply voltage with the characteristic value BB 2.4.2 Supply voltage with the characteristic value HH 2.4.3 Supply voltage with the characteristic value FF 2.4.4 Supply voltage with the characteristic value QQ 2.4.5 Supply voltage with the characteristic value PP...
  • Page 5 7.2.7 Supply voltage with the characteristic value M9 7.2.8 Ground connection Power consumption/power output, order numbers Signal contact Climatic conditions during operation Climatic conditions during storage Dimension drawings Immunity 7.10 Network range Scope of delivery Accessories Underlying technical standards Further support Installation Octopus II Release 10 04/2023...

  • Page 6: Important Information

    Important information Note: Read these instructions carefully, and familiarize yourself with the device before trying to install, operate, or maintain it. The following notes may appear throughout this documentation or on the device. These notes warn of potential hazards or call attention to information that clarifies or simplifies a procedure.
  • Page 7 NOTICE NOTICE provides information about procedures that do not involve the risk of injury. Installation Octopus II Release 10 04/2023...

  • Page 8: Safety Instructions

    Safety instructions WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. Before you start any machine which is controlled via data transmission, be sure to complete the configuration of all data transmission devices. Failure to follow these instructions can result in death, serious injury, or equipment damage.
  • Page 9 Strain relief  Note: If the strain relief is insufficient, there is a potential risk of torsion, contact problems and creeping interruptions.  Relieve the connection points of cables and lines from mechanical stress.  Design strain reliefs in such a way that they help prevent any mechanical damage to cables, wires or conductors caused by external influences or their own weight.
  • Page 10 Device variant Requirements Only for device variants The wire cross-section of the ground conductor in the power featuring supply voltage with supply cable is the same size as or bigger than the wire cross- characteristic value M9: section of the power supply cables, however of at least 0.75 mm² (AWG18).
  • Page 11 Requirements for connecting the supply voltage  Before connecting the supply voltage, always verify that the requirements listed are complied with. Device variant Requirements All of the following requirements are complied with: All variants  The supply voltage corresponds to the voltage specified on the type plate of the device.
  • Page 12 Device variant Requirements Only for device All of the following requirements are complied with:  variants featuring A back-up fuse is located in the outer conductor of the power supply. supply voltage with The neutral conductor is on ground potential at both voltage inputs. Otherwise, a back-up fuse is also located in the neutral conductor.
  • Page 13 Supply voltage  The supply voltage is connected to the device casing through protective elements exclusively. Shielding ground   The overall shield of a connected shielded twisted pair cable is connected to the ground connection on the metal housing as a conductor.
  • Page 14 E marking  The labeled devices comply with the regulations contained in the following European directive(s): – UN/ECE Regulation No. 10 Uniform provisions concerning the approval of vehicles with regard to electromagnetic compatibility. Certified devices are marked with an E type approval indicator. For devices labeled with the E type-approval mark, the following installation conditions apply: Characteristic value...
  • Page 15 CE marking  The labeled devices comply with the regulations contained in the following European directive(s): Device variant Directive All variants 2014/30/EU (EMC) Directive of the European Parliament and of the Council on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.
  • Page 16 M9 or N9: The UKCA conformity declaration will be available to the relevant authorities at the following address: Belden UK Ltd. 1 The Technology Centre, Station Road Framlingham, IP13 9EZ, United Kingdom You find the UKCA conformity declaration as PDF file for downloading on the Internet at: https://www.doc.hirschmann.com/certificates.html...
  • Page 17 Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Octopus II U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC Rules. Operation is subject...

  • Page 18: About This Manual

    About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Installation Octopus II...

  • Page 19: Key

    The symbols used in this manual have the following meanings:  Listing Work step  Subheading  Installation Octopus II Release 10 04/2023...

  • Page 20: Description

    You have numerous options of combining the device characteristics. You can determine the possible combinations using the configurator which is available in the Belden Online Catalog https://catalog.belden.com on the web page of the device.

  • Page 21: Device Name And Product Code

    Device name and product code The device name corresponds to the product code. The product code is made up of characteristics with defined positions. The characteristic values stand for specific product properties. Item Characteristic Characteri Description stic value 1 ... 2 Product Octopus II device Data rate...
  • Page 22 Item Characteristic Characteri Description stic value 14 ... 15 Configuration 10/100 Mbit/s twisted pair port of uplink ports 4-pin, “D”-coded M12 socket 3 and 4 10/100 Mbit/s twisted pair port 4-pin, “D”-coded M12 socket with bypass relay 10/100/1000 Mbit/s twisted pair port 8-pin, “X”-coded M12 socket 10/100/1000 Mbit/s twisted pair port 8-pin, “X”-coded M12 socket with bypass relay...
  • Page 23 Item Characteristic Characteri Description stic value 20 ... 21 Supply voltage BB 2 voltage inputs for redundant power supply Rated voltage DC: 24 V DC Connection type 5-pin, “A”-coded M12 plug 2 voltage inputs for redundant power supply Rated voltage range 36 V DC ...
  • Page 24 Item Characteristic Characteri Description stic value Hardware Standard configuration Ports 1 and 2: Fast MRP Ports 1 and 2: Ports 1 and 2: Ports 1 and 2: Ports 1 and 2: 1:1 NAT Ports 1 ... 4: Train backbone (ETB) Software Entry (without configuration) configuration...
  • Page 25 Application case Certificates and declarations Characteristic value Standard applications IEC 60950-1 EN 62368-1 EN 61131-2 cUL 60950-1 EMV 06 Rev. 2.0 Navy applications Railway applications EN 50121-4 (trackside) Railway applications (in EN 50155 vehicles) Motor vehicle applications E1 Table 6: Assignment: application cases, certificates and declarations, characteristic values...
  • Page 26 Port type Built-in transceivers Version Characteristic value 1M 1S 1P 1L 1A 1B 1C 1D 4M 4S 4P 4L 4A 4B 4C 4D 5M 5S 5P 5L 5A 5B 5C 5D 1000 M-SFP-SX/LC-EEC Mbit/s F/O port QODC M-SFP-LX/LC-EEC QODC M-SFP-LH/LC-EEC QODC M-SFP-LH+/LC EEC QODC...
  • Page 27 Port type Built-in transceivers Version Characteristic value 1M 1S 1P 1L 1A 1B 1C 1D 4M 4S 4P 4L 4A 4B 4C 4D 5M 5S 5P 5L 5A 5B 5C 5D 100 Mbit/s M-FAST SFP-MM/LC EEC V1 F/O port QODC M-FAST SFP-SM/LC EEC QODC M-FAST SFP-SM+/LC EEC V1...

  • Page 28: Device View

    Device view Above: front of device Below: bottom of device 3a 3b Power RM Status Product code IP ADDRESS V.24 BB + HH Function Function Power Power P- P- FAULT FAULT FF, M 9 , N 9 , QQ + PP Function Function FAULT...
  • Page 29 LED display elements for port status: Link status Exclusively for PoE(+) ports: PoE status  Up to 24 ×: 10/100 Mbit/s twisted pair port  Local ports 4-pin, “D”-coded M12 socket of which up to 12 × ports optionally with PoE(+) support On the bottom of the device for specific device variants: Supply voltage connection Supply voltage with characteristic value FF...
  • Page 30 Optional: Uplink ports 1 and 2 Twisted-pair ports are located on the front of the device: Alternatively: Data rate characteristic value 2  10/100 Mbit/s twisted pair port  4-pin, “D”-coded M12 socket  Optionally exclusively on port 2: PoE(+) support Alternatively: Data rate characteristic value 3 ...

  • Page 31: Power Supply

    Power supply 1.4.1 Supply voltage with the characteristic value BB A 5-pin, “A”-coded M12 connector is available for the redundant supply of the device. Further information: “Supply voltage with the characteristic value BB” on page 45 1.4.2 Supply voltage with the characteristic value HH A 5-pin, “A”-coded M12 connector is available for the redundant supply of the device.

  • Page 32: Supply Voltage With The Characteristic Value K9

    1.4.6 Supply voltage with the characteristic value K9 For the power supply of the device, a 5-pin, “K”-coded M12 plug is available. Further information: “Supply voltage with the characteristic value K9” on page 50 These device variants optionally support PoE(+). Further information: “Support of PoE(+)”...

  • Page 33: Twisted Pair

    1.5.1 Twisted pair 10/100 Mbit/s twisted pair port  Note: Some of these ports also support PoE(+). See “Support of PoE(+)” on page 34. This port is a 4-pin, “D”-coded M12 socket. The 10/100 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.

  • Page 34: Support Of Poe(+)

    1.5.2 Support of PoE(+) The device variants featuring hardware type characteristic value 4 support Power over Ethernet (PoE) and Power over Ethernet Plus (PoE+). With the presence of the PoE power supply, a separate power supply for the connected device is unnecessary. You can identify PoE(+) ports by the following symbol.

  • Page 35: Optical Fiber

    10/100 Mbit/s PoE(+) port  The 10/100 Mbit/s PoE(+) port allows you to connect network components as a powered device (PD) according to standards IEEE 802.3 10BASE-T/100BASE-TX and IEEE 802.3af/at. 10/100/1000 Mbit/s PoE(+) port  The 10/100/1000 Mbit/s PoE(+) port allows you to connect network components as a powered device (PD) according to standards IEEE 802.3 10BASE-T/100BASE-TX/1000BASE-T and IEEE 802.3af/at.

  • Page 36: Pin Assignments

    1.5.4 Pin assignments M12 4-pin (“D”-coded) Data Positive V Negative V TX− Positive V RX− Negative V M12 8-pin (“X”-coded) 10/100 Mbit/s 1000 Mbit/s BI_DB+ Negative V RX− BI_DB− Negative V BI_DA+ Positive V TX− BI_DA− Positive V — BI_DC+ —...

  • Page 37: Display Elements

    Display elements After the supply voltage is set up, the Software starts and initializes the device. Afterwards, the device performs a self-test. During this process, various LEDs light up. 1.6.1 Device status These LEDs provide information about conditions which affect the operation of the whole device.

  • Page 38: Port Status

    1.6.2 Port status These LEDs provide port-related information. Link state  These LEDs are identified with the number of the related port. Display Color Activity Meaning Link status — none Device detects an invalid or missing link green lights up Device detects a valid link flashes 1 ×...

  • Page 39: Management Interfaces

    Management interfaces 1.7.1 USB interface This interface offers you the ability to connect the storage medium AutoConfiguration Adapter ACA21-M12/ACA22-M12. This storage medium is used for saving/loading the configuration and diagnostic functions, and for loading the software. This interface is a 5-pin, “A”-coded M12 socket with shielding. Only connect the ACA21-M12/ACA22-M12 storage medium.

  • Page 40: Signal Contact

    Figure 1: Terminal cable for connecting an external Management Station The Terminal cable is available as an accessory. You will find a description of the V.24 interface in the “User Manual Basic Configuration” document. You can find further information on the Internet on the Hirschmann product pages under www.hirschmann.com Signal contact...

  • Page 41: Installation

    Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following steps to install and configure the device:  Checking the package contents  Installing and grounding the device ...

  • Page 42: Installing The Device

    Installing and grounding the device 2.2.1 Installing the device WARNING ELECTRIC SHOCK Exclusively for device variants featuring supply voltage with characteristic value M9 or N9: Install this device only in a switch cabinet or in an operating site with restricted access, to which maintenance staff have exclusive access. Failure to follow this instruction can result in death, serious injury, or equipment damage.

  • Page 43: Grounding The Device

    2.2.2 Grounding the device Grounding the device is by means of a separate ground connection on the device. The overall shield of a connected shielded twisted pair cable is connected to the ground connection on the metal housing as a conductor. The device variants have a connection for protective grounding.

  • Page 44: Connecting The Power Supply And The Signal Contact Lines

    Note: To open the ferrite use the key supplied.  Pass the power supply cable through the ferrite 1 time.  Position the ferrite as close as possible to the voltage input (max. distance 50 cm (19.7 in)).  Lock the ferrite. Connecting the power supply and the signal contact lines WARNING...

  • Page 45: Supply Voltage With The Characteristic Value Bb

    2.4.1 Supply voltage with the characteristic value BB A 5-pin, “A”-coded M12 connector is available for the redundant supply of the device. You find the prescribed tightening torque in chapter: See 59 “Technical data”. The supply voltage is connected to the device casing through protective elements exclusively.

  • Page 46: Supply Voltage With The Characteristic Value Hh

    2.4.2 Supply voltage with the characteristic value HH WARNING ELECTRIC SHOCK The nominal voltage of 48 V DC specified for trains can exceed the SELV limit of 60 V DC for a short time in accordance with EN 50155, § 5.1.1.1. Limit the overvoltage to max.

  • Page 47: Supply Voltage With The Characteristic Value Ff

    2.4.3 Supply voltage with the characteristic value FF WARNING ELECTRIC SHOCK The nominal voltage of 48 V DC specified for trains can exceed the SELV limit of 60 V DC for a short time in accordance with EN 50155, § 5.1.1.1. Limit the overvoltage to max.

  • Page 48: Supply Voltage With The Characteristic Value Qq

    2.4.4 Supply voltage with the characteristic value QQ WARNING ELECTRIC SHOCK The nominal voltage of 48 V DC specified for trains can exceed the SELV limit of 60 V DC for a short time in accordance with EN 50155, § 5.1.1.1. Limit the overvoltage to max.

  • Page 49: Supply Voltage With The Characteristic Value Pp

    2.4.5 Supply voltage with the characteristic value PP Note: Exclusively use a PoE power supply unit with galvanic isolation. Hirschmann has tested the power supply unit PC150/110V/54V and recommends its use. You find the order number for the power supply unit, which is available as accessory, under: “Accessories”...

  • Page 50: Supply Voltage With The Characteristic Value K9

    2.4.6 Supply voltage with the characteristic value K9 For the power supply of the device, a 5-pin, “K”-coded M12 plug is available. You find the prescribed tightening torque in chapter: See “Technical data” on page 59. The supply voltage is connected to the device casing through protective elements exclusively.

  • Page 51: Supply Voltage With The Characteristic Value M9

    2.4.7 Supply voltage with the characteristic value M9 A 3-pin 7/8" plug is available for the power supply to the device. You find the prescribed tightening torque in chapter: See “Technical data” on page 59. The supply voltage is connected to the device casing through protective elements exclusively.

  • Page 52: Signal Contact

    2.4.9 Signal contact A 5-pin, “A”"-coded M12 connector is available as the signal contact. You find the prescribed tightening torque in chapter: See “Technical data” on page 59. Depending on device variant, the signal contact lines are laid in the power supply plug or in a separate plug.

  • Page 53: Operating The Device

    Operating the device WARNING ELECTRIC SHOCK Before connecting the electrical wires, always verify that the requirements listed are complied with. See “Requirements for connecting electrical wires” on page 9. Failure to follow this instruction can result in death, serious injury, or equipment damage.

  • Page 54: Making Basic Settings

    Making basic settings The IP parameters must be entered when the device is installed for the first time. The device provides the following options for configuring IP addresses:  Input via the V.24 interface  Input via the HiView or Industrial HiVision application. You find further information about the applications HiView or Industrial HiVision on the Internet at the Hirschmann product pages: HiView...

  • Page 55: First Login (Password Change)

     Log on to the device again with your new password. Note: If you lost your password, then use the System Monitor to reset the password. For further information see: https://hirschmann-support.belden.com/en/kb/required-password-change- new-procedure-for-first-time-login Installation Octopus II Release 10 04/2023...

  • Page 56: Monitoring The Ambient Air Temperature

    Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 59. The ambient air temperature is the temperature of the air at a distance of 5 cm (2 in) from the device. It depends on the installation conditions of the device, for example the distance from other devices or other objects, and the output of neighboring devices.

  • Page 57: Maintenance And Service

    Maintenance and service  When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. ...

  • Page 58: Disassembly

    Disassembly WARNING ELECTRIC SHOCK Disconnect the grounding only after disconnecting all other cables. Failure to follow this instruction can result in death, serious injury, or equipment damage.  Disable the supply voltage.  Disconnect the data cables.  Disconnect the power supply cables and signal lines. ...

  • Page 59: Technical Data

    Technical data General technical data Dimensions Octopus II See “Dimension drawings” on page 70. W × H × D Weight Devices with 24 or 28 approx. 4.3 kg (9.5 lb) Fast Ethernet ports Other devices approx. 3.5 kg (7.7 lb) Mounting Flat surface mounting Screw type...

  • Page 60: Supply Voltage

    Supply voltage 7.2.1 Supply voltage with the characteristic value BB Power supply Connection type 5-pin, “A”-coded M12 plug Supply voltage with the Tightening torque 0.6 Nm (5.3 lb-in) characteristic value BB Rated voltage 24 V DC Voltage range incl. 16.8 V DC ... 32 V DC maximum tolerances Rated voltage for rail 24 V DC...

  • Page 61: Supply Voltage With Characteristic Value Hh

    7.2.2 Supply voltage with characteristic value HH Power supply Connection type 5-pin, “A”-coded M12 plug Supply voltage with the Tightening torque 0.6 Nm (5.3 lb-in) characteristic value HH Rated voltage range 36 V DC ... 48 V DC Voltage range incl. maximum 25.2 V DC ...

  • Page 62: Supply Voltage With Characteristic Value Ff, Qq

    7.2.3 Supply voltage with characteristic value FF, QQ Power supply Connection type Characteristic value FF Supply voltage with 5-pin 7/8" plug characteristic value FF, Tightening torque 2.5 Nm (22 lb-in) Characteristic value QQ 4-pin, “T”-coded M12 power plug Tightening torque 0.6 Nm (5.3 lb-in) Rated voltage range 24 V DC ...

  • Page 63: Supply Voltage With The Characteristic Value Pp

    7.2.4 Supply voltage with the characteristic value PP Power supply Connection type 4-pin, “T”-coded M12 power plug Supply voltage with the Tightening torque 0.6 Nm (5.3 lb-in) characteristic value PP Rated voltage When using PoE: 48 V DC When using PoE+: 54 V DC Without using PoE or 24 V DC ...

  • Page 64: Supply Voltage With The Characteristic Value K9

    7.2.5 Supply voltage with the characteristic value K9 Power supply Connection type 5-pin, “K”-coded M12 plug Supply voltage with the Tightening torque 0.6 Nm (5.3 lb-in) characteristic value K9 Rated voltage range 72 V DC ... 110 V DC Voltage range incl. 50.4 V DC ...

  • Page 65: Supply Voltage With The Characteristic Value N9

    7.2.6 Supply voltage with the characteristic value N9 Power supply Connection type 4-pin, 7/8" connector Supply voltage with the Tightening torque 2.5 Nm (22 lb-in) characteristic value N9 Rated voltage range 72 V DC ... 110 V DC Voltage range incl. 50.4 V DC ...

  • Page 66: Supply Voltage With The Characteristic Value M9

    7.2.7 Supply voltage with the characteristic value M9 Power supply Connection type 3-pin, 7/8" connector Supply voltage with the Tightening torque 2.5 Nm (22 lb-in) characteristic value M9 Rated voltage range 110 V AC ... 230 V AC, 50 Hz ... 60 Hz Voltage range including 88 V AC ...

  • Page 67: Power Consumption/Power Output, Order Numbers

    Power consumption/power output, order numbers The order numbers correspond to the product codes of the devices. See “Device name and product code” on page 21. Device name Maximum Power output power consumption OS20-000800... 22 W 75 Btu (IT)/h OS20-001200... 26 W 87 Btu (IT)/h OS20-002000...

  • Page 68: Climatic Conditions During Operation

    Climatic conditions during operation Climatic Minimum clearance Top and bottom sides of device: 5 cm (2 in) conditions around the device Left and right sides of device: 5 cm (2 in) during Derating operation 5 K at the following clearance: Top and bottom sides of device: 0 cm (0 in) Left and right device side: 0 cm (0 in) Ambient air...

  • Page 69: Climatic Conditions During Storage

    Climatic conditions during storage Climatic conditions Ambient air temperature -40 °C ... +85 °C (-40 °F ... +185 °F) during storage Humidity 5 % ... 100 % (also in condensing atmospheres) Air pressure min. 700 hPa (+3000 m ASL; +9842 ft ASL) max.

  • Page 70: Dimension Drawings

    Dimension drawings inch 338,2 13.31 326,2 12.84 308,8 12.16 39,3 39,4 39,3 0.15 0.16 0.15 1.85 94,8 10.28 3.73 92,7 3.65 10,9 0.22 0.43 Installation Octopus II Release 10 04/2023...

  • Page 71: Emc

    Note: You will find detailed information on the certificates and declarations applying to your device in a separate overview. See table 6 on page 25. EMC interference Standard Navy Railway Railway Motor vehicle emission applications applications applications applications (in applications (trackside) vehicles) Radiated emission...
  • Page 72 EMC interference Standard Navy Railway Railway Motor vehicle immunity applications applications applications applications (in applications (trackside) vehicles) Electrostatic discharge EN 61000-4-2 Contact discharge ±4 kV ±6 kV ±6 kV ±6 kV ±4 kV IEEE C37.90.3 EN 61000-4-2 Air discharge ±8 kV ±8 kV ±8 kV ±8 kV...

  • Page 73: Immunity

    Immunity Immunity Standard Navy Railway Railway applications (in Motor vehicle applications applications applications vehicles) applications (trackside) IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 2 Hz ... 13.2 Hz — Operating — 3.5 mm (0.14 in) with 1 mm 5 Hz ...

  • Page 74: Network Range

    7.10 Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and Bandwidth Length Product (BLP)/ Dispersion). Product code Mode Wave length Fiber System Example for F/O Fiber attenuation BLP/Dispersion M-FAST-SFP-... attenuation cable length -MM/LC...
  • Page 75 Product code Mode Wave length Fiber System Example for F/O Fiber attenuation BLP /Dispersion M-SFP-... attenuation cable length -LH/LC... 1550 nm 9/125 µm 5 dB ... 21 dB 23 km ... 76 km 0.25 dB/km 19 ps/(nm×km) (14.29 mi ... 47.22 mi) -LH+/LC...

  • Page 76: Scope Of Delivery

    Scope of delivery Amount Article 1 × Safety and general information sheet 1 × Device 1 × M12 connector, 5-pin, (M12 socket, “A”-coded) 1 × Exclusively for device variants featuring supply voltage with characteristic value QQ or PP: M12 Power connector, 4-pin, “T”-coded 1 ×...

  • Page 77: Accessories

    Accessories Name Order number Terminal cable 943 902-001 AutoConfiguration Adapter ACA21-M12 (EEC) 943 913-003 AutoConfiguration Adapter ACA22-M12 (EEC) 942 125-001 M12 connector - ELWIKA 5012 PG7 -,5-pin, (M12 socket, “A”-coded) 933 175-100 M12 connector - shielded -,5-pin, (M12 socket, “A”-coded) 942 219-001 M12 Power connector, 4-pin, “T”-coded 942 218 001...

  • Page 78: 10 Underlying Technical Standards

    10 Underlying technical standards Name EN 55032 Electromagnetic compatibility of multimedia equipment – Emission Requirements EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial environments EN 61000-6-4 Electromagnetic compatibility (EMC) – Part 6-4: Generic standards – Emitted interference in industrial environments IEC 60950-1 Information technology equipment –...

  • Page 79: A Further Support

    You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.com. This site also includes a free of charge knowledge base and a software download section. Customer Innovation Center...
