Contents Important information Safety instructions About this manual Description General description Device name and product code Media module variants 1.3.1 Port configuration 1.3.2 Media module slots on the RSPE device Ethernet ports 1.4.1 100 Mbit/s F/O port 1.4.2 10/100 Mbit/s twisted pair port 1.4.3 Support of PoE(+) Display elements 1.5.1 Media module status...
Page 4
Scope of delivery, order numbers and accessories Scope of delivery Accessories Underlying technical standards Further support Installation RSPM Release 21 09/2022...
Important information Note: Read these instructions carefully, and familiarize yourself with the device before trying to install, operate, or maintain it. The following notes may appear throughout this documentation or on the device. These notes warn of potential hazards or call attention to information that clarifies or simplifies a procedure.
Page 6
NOTICE NOTICE provides information about procedures that do not involve the risk of injury. Installation RSPM Release 21 09/2022...
Safety instructions General safety instructions You operate this device with electricity. Improper usage of the device entails the risk of physical injury or significant property damage. The proper and safe operation of this device depends on proper handling during transportation, proper storage and installation, and careful operation and maintenance procedures.
Page 8
ESD Guidelines The modules are equipped with electrostatically sensitive components. These can be destroyed, or their life cycles reduced, by the effects of an electrical field or by a charge equalization if the connections are touched. You will find information about electrostatically endangered assemblies in DIN EN 61340-5-1 (2007-08) and DIN EN 61340-5-2 (2007-08).
Page 9
The USB port shall remain disconnected. Relevant for use in explosion hazard areas (Hazardous Locations, Class I, Division 2) The relay connections are to be installed and used within their Entity Parameters as per Control Drawing 000182303DNR. Avertissement - Risque d'explosion - Ne pas débrancher tant que le circuit est sous tension à...
Page 10
For Use in Hazardous Locations Class I Division 2 Groups A, B, C, D: Only allowed for RSPE/RSPM model No´s. which are individually labeled “FOR USE IN HAZARDOUS LOCATIONS”. This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D OR non-hazardous locations only.
Page 11
Explosive Atmosphere Ordinary Location, Non-Hazardous Area, Class Division 2 Groups A, B, C, D Non-Explosive Atmosphere Hazardous Location RSPE - Industrial Ethernet WARNING! Rail Switch Power Enhanced The USB is for temporary connection only, for maintenance use. Do not use, connect or disconnect unless the area is known to be non-hazardous.
Page 12
UK conformity regulations 2016, UK S.I. 2016:1107 (as amended by UK S.I. 2019:696) - Schedule 3A, Part 6 Relevant for RSPM devices when operating in explosive gas atmospheres the following applies: List of standards: EN IEC 60079-0:2018 EN 60079-7:2015 + A1:2018 ...
Page 13
IECEx – Certification Scheme for Explosive Atmospheres For RSPM devices labeled with an IECEx certificate number, the following applies: List of standards: IEC 60079-0:2011+Cor.2012+Cor.2013 IEC 60079-15:2010 The device is suitable for use in an area with a degree of soiling of 2 as per IEC 60664-1.
Page 14
CE marking The statements in this chapter refer only to media modules which are correctly mounted in a RSPE basic device (see on page 28 “Mounting a media module”). The labeled devices comply with the regulations contained in the following European directive(s): ...
Page 15
Part 6” on page 12. The UKCA conformity declaration will be available to the relevant authorities at the following address: Belden UK Ltd. 1 The Technology Centre, Station Road Framlingham, IP13 9EZ, United Kingdom You find the UKCA conformity declaration as PDF file for downloading on the Internet at: https://www.doc.hirschmann.com/certificates.html...
Page 16
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information RSPM U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC Rules. Operation is subject...
About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Installation RSPM...

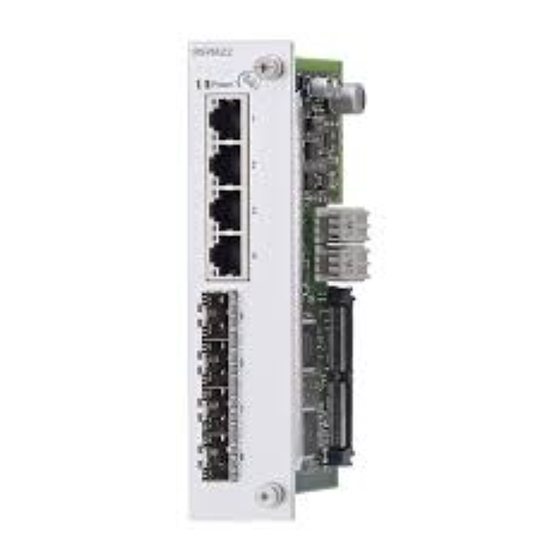

Description General description The RSPM media modules are designed for exclusive use in a RSPE basic device. By using media modules, you obtain up to 16 additional Fast Ethernet ports. You will find more information on the media modules in the “User Manual for Installation of RSPE”.
The characteristic values stand for specific product properties. You have numerous options of combining the device characteristics. You can determine the possible combinations using the configurator which is available in the Belden Online Catalog https://catalog.belden.com on the web page of the device.
Page 21
Application case Certificates and Characteristic value declarations Z9 X9 W9 WX WU WD WC WB WA U9 UY UX UW T9 TY V9 VP VU P9 Standard applications ATEX Zone 2 IECEx EN 62368-1 EN 61131-2 ANSI/UL 121201 UL 61010-1, UL 61010-2-210 Substation applications IEC 61850-3 IEEE 1613...
Media module variants The media modules have different interface types. The different interfaces of the media modules provide you with the following functions: Specific functions of the TP/TX interface Auto Polarity Exchange Autocrossing (device may be connected with a crossed-over or an un- crossed cable) ...
1.3.2 Media module slots on the RSPE device RSPE basic device (slot 1) Slot 2 for media module RSPM All media modules are pluggable except RSPM20-4Z64Z6... (8 F/O ports) Slot 3 for media module RSPM All media modules are pluggable. Ethernet ports You have the option to connect terminal devices or other segments to the ports of the media modules via twisted-pair cables or F/O cables.
See “Media module slots on the RSPE device” on page 23. 1.4.2 10/100 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX standard. This port supports: ...
Page 25
The PoE support complies with the following technical standards: Technical Description standard IEEE 802.3af Brief description Classes max. Powered Device (PD) class 0 (15,4 W) IEEE 802.3at Brief description PoE+ Classes max. Powered Device (PD) class 4 (30 W) Table 4: PoE support: technical standards In accordance with IEEE 802.3af and IEEE 802.3at: ...
Display elements 1.5.1 Media module status Device variant RSPM20 1 LED is located on the upper part of the media module. This LED provides information on the supply voltage status of the media module. Power Display Color Activity Meaning Power Supply —...
1.5.2 Port status These LEDs provide port-related information. The LEDs are directly located on the ports. Display Color Activity Meaning Link status — none Device detects an invalid or missing link green lights up Device detects a valid link flashes 1 × a period Port is switched to stand-by flashes 3 ×...
Installation The devices have been developed for practical application in a harsh industrial environment. Hirschmann supplies the media modules ready for operation. To install the device, perform the following work steps: Checking the package contents Mounting a media module ...
Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 39. Figure 1: Installing SFP transceivers: Installation sequence Perform the following work steps: Take the SFP transceiver out of the transport packaging (1). Remove the protection cap from the SFP transceiver (2). ...
Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. ...
Disassembly Removing an SFP transceiver (optional) Figure 2: De-installing SFP transceivers: De-installation sequence Perform the following work steps: Open the locking mechanism of the SFP transceiver (1). Pull the SFP transceiver out of the slot via the open locking mechanism (2).
Technical data General technical data Dimensions RSPM See “Dimension drawings” on page 33. Weight RSPM20-4Z64Z6... 10.23 oz (290 g) RSPM20-4T14T1... 130 g (4.59 oz) RSPM22-4T14T1... RSPM20-4T14Z6... 7.76 oz (220 g) RSPM22-4T14Z6... Climatic Ambient air temperature Devices with operating temperature conditions characteristic value S (Standard): during operation...
Page 33
Dimension drawings inch 101,05 6,64 1.38 3.98 0.26 Figure 3: Dimensions of a media module Installation RSPM Release 21 09/2022...
Page 34
EMC and immunity You will find detailed information on the certificates and declarations applying to your device in a separate overview. See table 2 on page 21. EMC interference Standard Navy applications Railway Substation emission applications applications applications (trackside) Radiated emission EN 55032 Class A...
Page 36
EMC interference Standard Navy applications Railway Substation immunity applications applications applications (trackside) Damped oscillation – DC supply connection EN 61000-4-18 line/ground — — — 2.5 kV IEEE C37.90.1 EN 61000-4-12 line/line — — — 1 kV IEEE C37.90.1 Damped oscillation – data line EN 61000-4-12 line/ground —...
Page 37
Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and Bandwidth Length Product (BLP)/ Dispersion). Product code Mode Wave length Fiber System Example for F/O Fiber attenuation BLP/Dispersion M-FAST-SFP-... attenuation cable length -MM/LC...
Page 38
Power consumption/power output The order numbers correspond to the product codes of the devices. See “Device name and product code” on page 20. Device name Maximum Power output power consumption RSPM20-4Z64Z6... 31 Btu (IT)/h RSPM20-4T14T1... 7 Btu (IT)/h RSPM20-4T14Z6... 17 Btu (IT)/h RSPM22-4T14T1...
Page 39
Scope of delivery, order numbers and accessories Scope of delivery Amount Article 1 × Safety and general information sheet 1 × Device Accessories Note that products recommended as accessories may have different characteristics to those of the device, which may limit the application range of the overall system.
Page 40
Fast Ethernet SFP transceiver Order number SFP-FAST-MM/LC EEC 942 194-002 SFP-FAST-SM/LC 942 195-001 SFP-FAST-SM/LC EEC 942 195-002 a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). Installation RSPM Release 21 09/2022...
Page 41
Underlying technical standards Name CSA C22.2 No. 142 Canadian National Standard(s) – Process Control Equipment – Industrial Products ANSI/UL 121201 Nonincendive Electrical Equipment for Use in Class I and II, Division 2 and Class III, Divisions 1 and 2 Hazardous (Classified) Locations EN 50121-4 Railway applications –...
Page 42
You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.com. This site also includes a free of charge knowledge base and a software download section. Customer Innovation Center...
