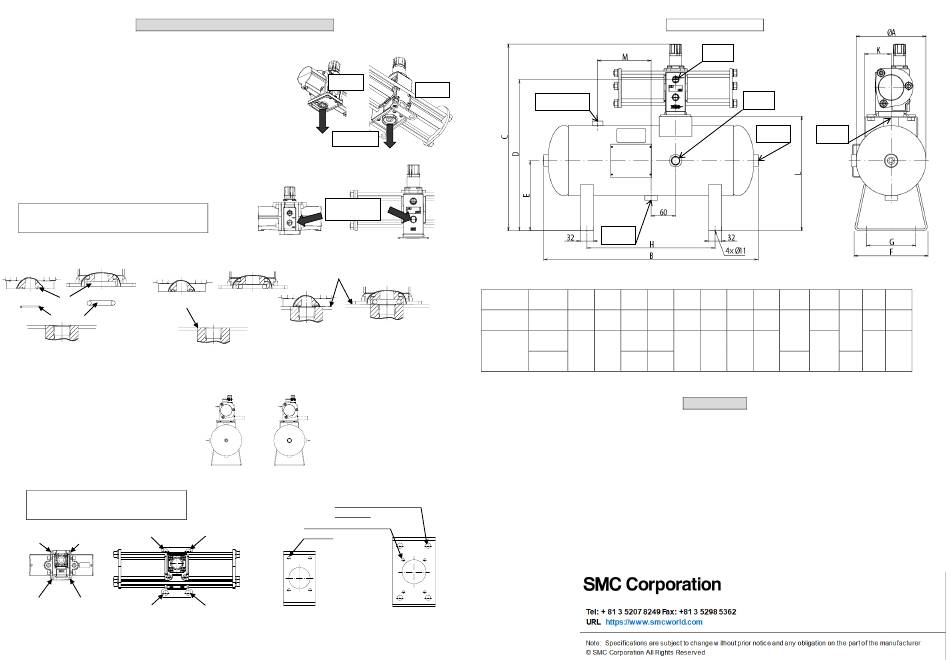

- Connecting Air Tank and Booster Regulator
(1) Accessory check: Check the items and the quantity of parts in the package shown in Table 2.
(Accessories are attached to the foot of the air tank.)
(2) Prepare tools: Prepare a hexagon wrench key. The hexagon wrench key
for VBA1 is with nominal size 4 and 6, for VBA2 with
nominal size 8, and for the drain port with nominal size 6.
: Tighten the optional safety valve and drain
valve with a monkey spanner.
(3) Change of the booster regulator OUT port plug
: Remove the hexagon socket head plug at the joint of the tank at the back side
of the booster regulator. (Remove any sealing agent left on the thread.)
: Mount the hexagon socket head plug to the OUT port on the front of the
booster regulator by applying the seal tape.
VBA1: Tightening torque of 12 to 14 Nm (R1/4)
VBA2: Tightening torque of 22 to 24 Nm (R3/8)
(4) O-ring
: Mount the O-ring in the groove on the joint of the tank at the back of the booster regulator.
Booster regulator
Grooves
There should be no damage or dust
O-rings
Air tank
(5) Mounting direction: When mounting the booster regulator VBA2 to the air tank VBA10A-*, the direction of IN of the
booster regulator and OUT of the air tank can be changed to suit the application. Align the direction
of the booster regulator IN port and the air tank OUT port when mounting the booster regulator VBA1.
<- OUT
(6) Installation: Tighten diagonally with the hexagon socket head bolts included in the package.
VBA1: Tightening torque: 3 Nm (M5)
VBA2: Tightening torque: 24 Nm (M10)
(1)
(1)
(4)
(3) (2)
(3)
VBA1 VBA2
VBA1
Remove
OUT port
Mounting
No gap
There is a slight play on the diagonal parts.
IN -> IN ->
OUT ->
VBA2: Mounting holes
(Outside)
VBA1: Mounting holes
(4)
(Inside)
(2)
Mounting base
VBAT05A1-
VBA2
Safety valve port
Rc3/8
Booster
Air tank
regulator
VBA10A
VBAT05A1
VBA11A
VBA10A
VBA11A
VBAT10A1
VBA20A
VBA22A
△
！
WARNING
(1) Regular check
- The user of the air tank shall keep a record of maintenance by making a special equipment safety technical document.
- The use of a pressure vessel could lead to an unexpected accident due to external damage or internal corrosion
caused by drainage. Therefore, make sure to check periodically for external damage, or the extent of internal corrosion
through the port hole. An ultrasonic thickness indicator may also be used to check for any reduction in material
thickness.
(2) Drain discharge
- If the product is used with a large amount of drainage, the drainage could flow out, leading to equipment malfunction or
corrosion inside the tank. Perform drain flushing regularly.
VBAT10A1-
Assembly dimensions
IN port
(I)
OUT port
Drain port
Rc1/4
 A
B C D E F G
150 374 370 307 163 160 100
391 328
170 522 170 180 120
454
367
417
- Maintenance
(J)
Spare port IN port
Rc1/2 Rc1/2
H I J K L M
Rc
200 257 60
3/8
Rc 1/4 20
Rc
312 278 130
1/2
Rc 3/8 39
