MANUAL

ENGLISH

Performer 2000 LED

Ordercode: 33040

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Need help?

Do you have a question about the Performer 2000 LED and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC Performer 2000 LED

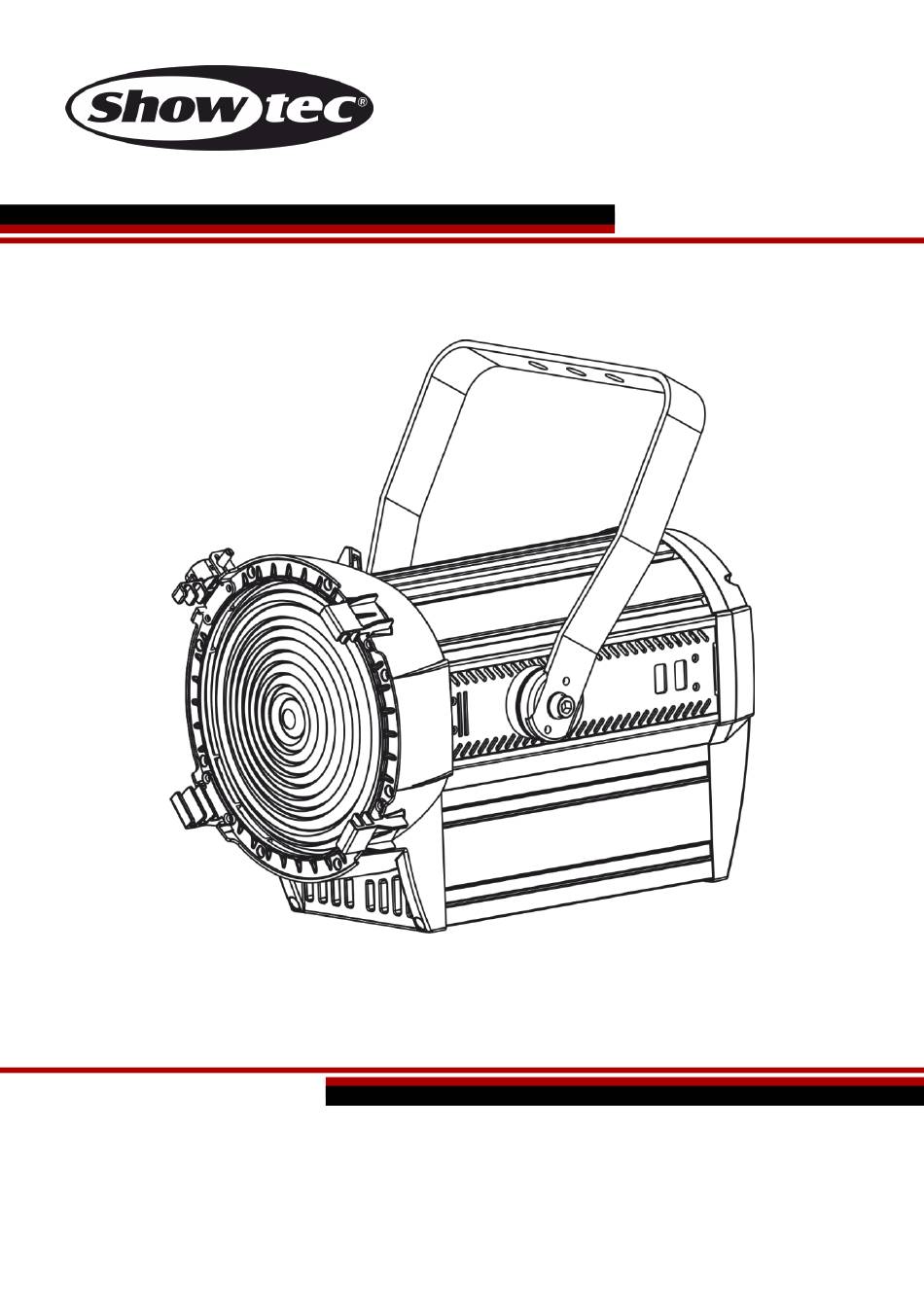

Page 1 MANUAL ENGLISH Performer 2000 LED Ordercode: 33040 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
Page 2 Performer 2000 LED Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Features ..................................8 Overview ..................................
Page 3 Performer 2000 LED No Light ..................................24 No Response to DMX..............................24 Product Specifications ..............................26 Dimensions ..................................27 Notes ....................................28 Ordercode: 33040...
Page 4 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Showtec Performer 2000 LED  1 color frame ...
Page 5 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
Page 6 Performer 2000 LED • The user is responsible for correct positioning and operating of the Performer. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
Page 7 Performer 2000 LED Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE...
Page 8 Performer 2000 LED Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Page 9 Performer 2000 LED Description of the device Features The Showtec Performer 2000 LED is a theater spotlight fixture with high output and great effects.  Light Source: 16 x 10W Cree LED  Input Voltage: 100 - 240VAC, 60/50Hz  Power Consumption: 160W ...
Page 10 Performer 2000 LED Fig. 02 01) Front cap 02) Front lens cover 03) Lens tube 04) Front plate 05) Top cover 06) Adjustment screw 07) Mounting bracket with inclination screw 08) Heat-sink bracket 09) Lens plate 10) Lens frame 11) Collecting lens...
Page 11 Performer 2000 LED Backside Fig. 03 29) Powercon power connector 100-240V IN 30) 3-pin DMX signal connector IN 31) 5-pin DMX signal connector IN 32) 3-pin DMX signal connector OUT 33) 5-pin DMX signal connector OUT 34) Powercon power connector 100-240V OUT...
Page 12 Performer 2000 LED Installation Remove all packing materials from the Performer 2000 LED. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.
Page 13 Performer 2000 LED Setting the angle 01) Loosen the adjustment screw (do not remove them). 02) Tilt the fixture to the desired position. 03) Tighten the adjustment screw to secure the fixture in position. Fig. 05 Ordercode: 33040...
Page 14 Performer 2000 LED Control Modes There are 3 modes: • Stand-alone • Master/Slave • DMX-512 (1CH, 2CH, 5 CH) One Performer (Stand-alone) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
Page 15 Performer 2000 LED Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performers and other devices.
Page 16 Performer 2000 LED Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
Page 17 Performer 2000 LED The Performer 2000 LED can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) MENU button ENTER button C) DOWN button D) UP button ZOOM control LED display G) DIMMER control Fig.
Page 18 Performer 2000 LED Menu Overview Ordercode: 33040...
Page 19 Performer 2000 LED Main Menu Options DMX-512 Mode Run Mode Zoom/Dimmer settings White color calibration General settings Motor reset 1. DMX-512 Mode In this mode you can set the DMX address. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.
Page 20 Performer 2000 LED 06) When the display shows , press the ENTER button to open the dimmer intensity settings. 07) Press the UP/DOWN buttons (or turn the DIMMER control on the control panel (36)) to increase/decrease the dimmer intensity. The adjustment range is between from dark to brightest.
Page 21 Performer 2000 LED 5.1. Dimming curve settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to choose the desired dimming curve out of the 4 available options: 5.2. Dimmer speed 01) When the display shows , press the ENTER button to open the menu.
Page 22 Performer 2000 LED 5.5 Performance settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to toggle between the 3 modes: Default mode. It provides a compromise between output quality and noise level.
Page 23 Performer 2000 LED 5.10 Reset settings 01) When the display shows , press the ENTER button to enter the menu. The display will show 02) Insert the safety key combination by pressing the buttons in the following order: UP, DOWN, UP, DOWN, ENTER.
Page 24 04) The electric power supply cables must not show any damages or material fatigue. The Performer 2000 LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
Page 25 Response: Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LED. Return the Performer to your Showtec dealer. 03) The fuse. Replace the fuse. See page 23 for replacing the fuse.
Page 26 Performer 2000 LED Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
Page 27 Performer 2000 LED Product Specifications Model: Showtec Performer 2000 LED Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 160W (full output) DMX linking: 30pcs Fuse: T3,15AL/250V Dimensions: 255 x 380 x 388 mm (LxWxH) Weight: 7 kg Operating and Programming: Signal pin OUT:...
Page 28 Performer 2000 LED Dimensions Ordercode: 33040...
Page 29 Performer 2000 LED Notes Ordercode: 33040...
Page 30 Performer 2000 LED Ordercode: 33040...
Page 31 Performer 2000 LED Ordercode: 33040...
