TSC Printronix Auto ID PEX-2000 Series User Manual page 100

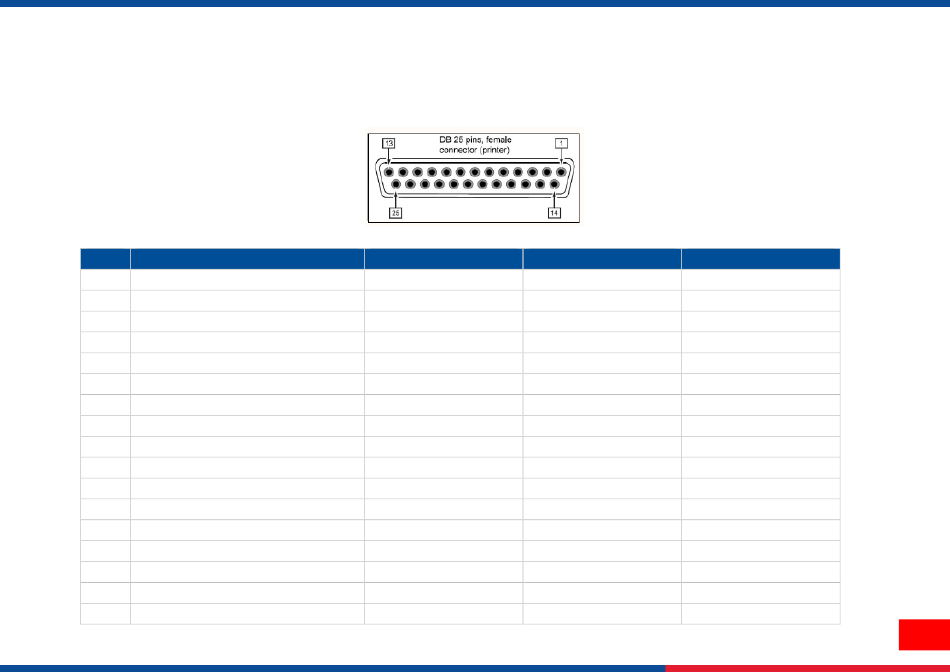

Below table's emulation will only be applied when users are using GPIO-DB25 with the External Signal function turned on(Type
1/2/3/4).
Please follow the procedures to trun on the function: Menu > Interface > GPIO > External Signal (Defualt:Off) > Type1/2/3/4.
Pin CONFIGURATION
1 FGND
2 +5V
3 GPO_1
4 GPO_3
5 GPO_5
6 GPO_7
7 GPI_1
8 GPI_3
9 GPI_5
10 GPI_7
11 OUT_COM
12 +5V
13 +24V
14 GND
15 OUT_COM
16 GPO_2
17 GPO_4
SIGNAL NAME SIGNAL TYPE
FG ( Frame Ground)
+5V
Start Print
Machine Error
Print Completed
Online
Label Near End
Reprint
Backfeed Order
Reverse
OUT_COM
+5V
+24V
GND(Signal Ground)
OUT_COM
Fault Ribbon
Fault Paper
LEVEL
- -
- -
Output Low
Output Low
Output Low
Output Low
Input Low
Input Low
Input Low
Input -
- -
- -
- -
- -
-
Output Low
Output Low
