Uplift Desk STR017-LNG Manual

Desk Shelf or Monitor Stand, 27 in.
STR017-LNG

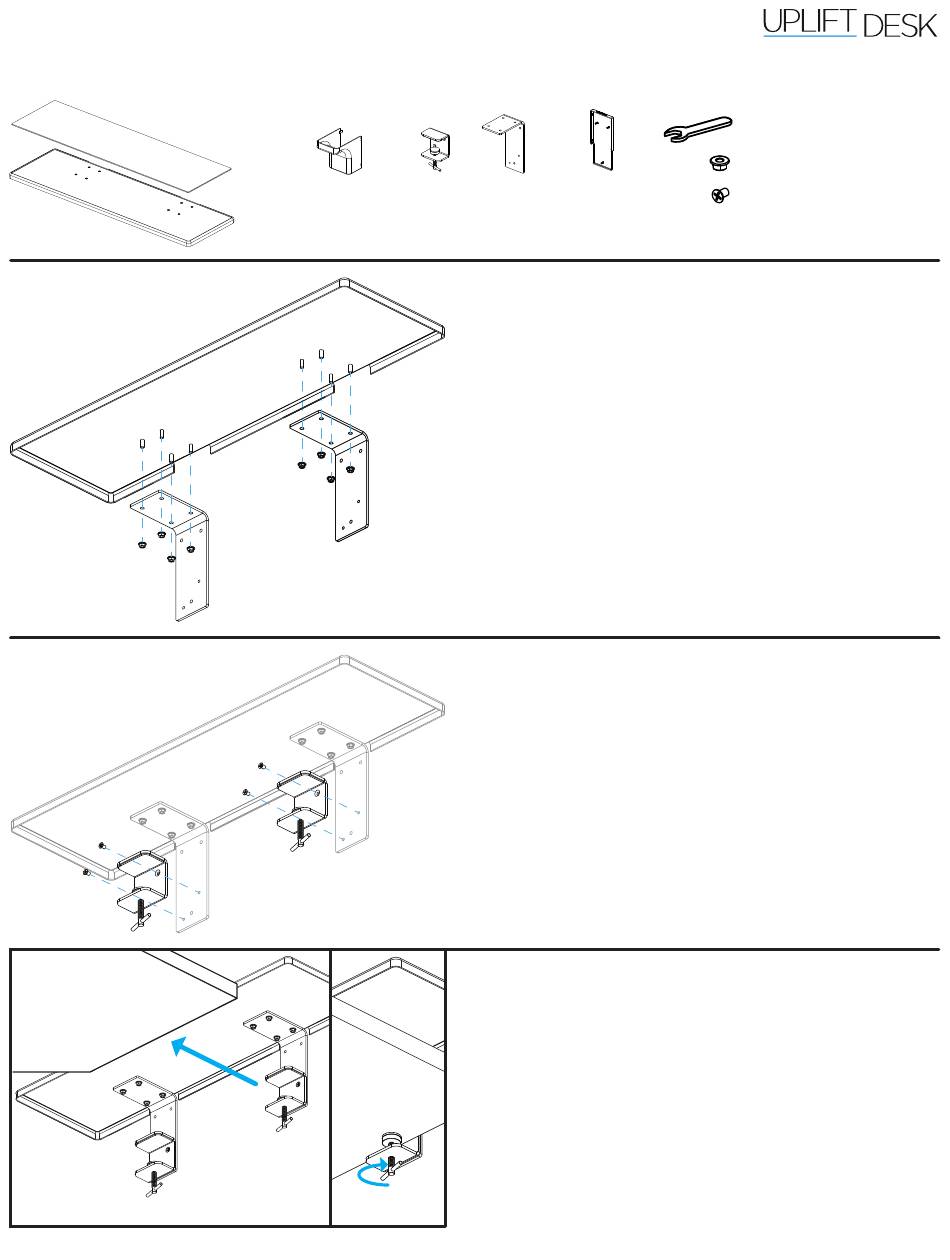

Package Contents
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Pad
Front cover
Tray (qty 2)
Clamp Bracket Rear cover
(qty 2) (qty 2) (qty 2)
Step 1
Connect the Brackets to the Tray in the orientation shown.
Align the pem studs (which are attached to the bottom of the
Tray) with the holes in each Bracket.
Screw the M5 Hex flange nuts onto the pem studs, and tighten
using the provided Flat wrench.
Step 2
Connect the Clamps to the Brackets, in the orientation shown,
using two #10-32 Flat head screws for each Clamp. Tighten
with a Phillips head screwdriver.
Step 3
Open the clamps as much as needed to fit onto the desktop
and slide the assembly all the way onto the desk until it stops.
Clamp the assembly to the desk snugly but be sure not to
overtighten the clamps.
Overtightening can deform the Clamp brackets and cause the
Front and Rear covers to not attach correctly.
Flat wrench
M5 Hex flange nut
(qty 8)
#10-32 Flat head screw
(qty 4)
