Uplift Desk STR036 Instructions

Desk Extension Mount
STR036 + STR038 or STR039
Package Contents
STRO36 - Desk Extension Mount
Support Bracket
Main Bracket
The Desk Extension can be installed on either the right or left side of your UPLIFT Desk V2 or V2-Commercial frame. These
Instructions apply to both the UPLIFT Desk C-Frame and T-Frame. Note: T-Frame desks are only available in a 30" depth,
C-Frame desks are available in both 24" and 30" depths.
C3
C3 C4
M8x10 Flat Head Screw
M6x10 Socket Head Screw
C7
M6x8 Flat Head Screw
C6
U-Bracket C6
(qty 2)
#10x5/8" Wood Screw
Hex Nut
Allen Wrench
H6 H7
H6
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com •
C4 C5
C5
(qty 4)
(qty 4)
C7 C9 H1 H2 H3 H5
C9 H1 H2 H3
(qty 4)
(qty 2)
H4a H4b
H4a H4b
(qty 4)
(4 mm and 5 mm)
H7

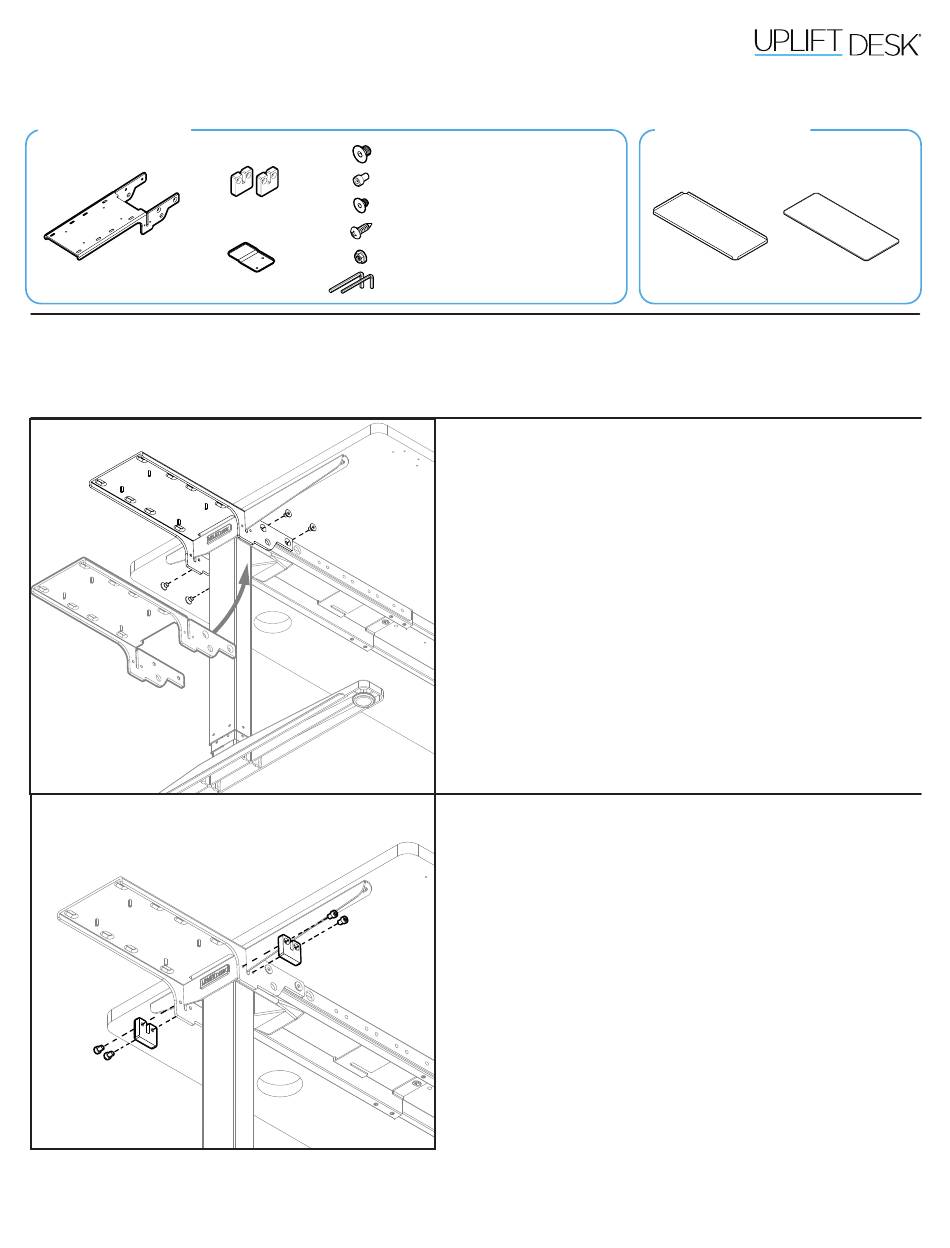

Step 1 - Main Bracket Attachment
• Choose which side of your desk you want to attach the
Desk Extension.
• Orient the Main Bracket with the attachment tabs
on each side of the desk leg as shown and raise the
bracket up so that the desk frame side bracket slides
between the slots in the Main Bracket.
• Align the two holes on each side of the Main Bracket
attachment tabs with the holes in the UPLIFT V2 desk
frame.
• Loosely insert the four M8x10 Flat Head Screws through
the holes in the bracket and into the threaded holes
in the desk frame using the larger 5mm Allen Wrench.
Once all four screws have been started, tighten them
all with the Allen Wrench.
Step 2 - U-Bracket Attachment (optional)
If you think you might place more than 30 lbs of weight on
the Desk Extension, continue with this step. If you will not
be placing more than 30 lbs on the Desk Extension, you can
proceed to Step 3.
• Line up one U-Bracket on one side of the Main Bracket
as shown with the desk frame side bracket in the slot
of the U-Bracket. Make sure the larger holes in the
U-Bracket are facing out to accommodate the heads of
the attachment screws.
• Using the larger, 5mm Allen Wrench, loosely insert two
of the M6x10 Socket Head Screws. Once both screws are
started, tighten them securely with the Allen Wrench.
• Repeat this step with the second U-Bracket on the
other side of the Main Bracket.
Package Contents
STR038 - 30" Desk Extension Tray
STR039 - 24" Desk Extension Tray
H5
Tray
upliftdesk.com
Tray Pad
1
