Part 1

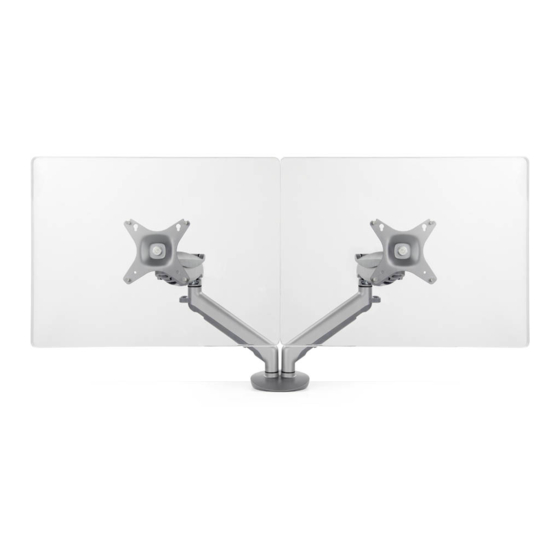

UPLIFT Horizon ™ Dual Arm

There are two ways to attach your UPLIFT Horizon™ Dual Monitor Arm to your desktop: Clamp and Bolt-through assembly.

Clamp Assembly -

Part 2

M4*12 screw

(qty 8)

Part 3

Washer

(qty 4)

Part 4

M6*12 screw

(qty 3)

Part 5

Allen wrench

(small)

Part 6

Allen wrench

(medium)

Step 1

Attach Monitor Arm to desktop.

Attach the arm to the back of the desk. Clamp will fit desks up to 1.7''

Clamp Step 1

Slide the Outer wire clip (part 14) into the back notch of the Arm's

base. Attach the Clamp bracket (part 11) to the Arm's base with three

M6*12 screws (part 4). Secure the screws with the medium Allen wrench

(part 6).

Clamp Step 2

Screw the Clamp bolt (part 13) up from the bottom of the Clamp bracket,

and insert the Clamp plate (part 12) into the tab at the tip of the Clamp bolt.

Clamp Step 3

Apply the Clamp gasket (part 15) under the Arm's base.

Match the holes in the gasket to where the placement of the screws are.

Clamp Step 4

Slide the assembly onto your desk, and turn the Clamp bolt to tighten

and affix to desk.

Horizon™ Dual Monitor Arm Instructions

ACC305

Part 7

Part 11

Allen wrench

Clamp bracket

(large)

Part 8

Part 12

Boxed wrench

Clamp plate

Part 9

Part 13

Cable cover 1

Clamp bolt

Part 14

Outer wire clip

Part 10

Cable cover 2

Part 15

Clamp gasket

Part 16

Bolt plate

Part 17

Bolt assembly

Part 18

Open-end wrench

Part 19

Nut

Part 20

Inner wire clip

Part 21

Bolt gasket

ACC305/R01

Table of Contents

Need help?

Do you have a question about the ACC305 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uplift Desk ACC305

Page 1 Match the holes in the gasket to where the placement of the screws are. Clamp Step 4 Slide the assembly onto your desk, and turn the Clamp bolt to tighten and affix to desk. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com ACC305/R01...
Page 2 Screw in two M4*12 screws (part 2) and two washers (part 3), into the lower holes on the VESA mounting plate (see figure 3) and tighten. When finished, tighten all screws from step 2. Repeat steps 2-4 with your second monitor. Fig. 3 © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
Page 3 Use the Boxed wrench (Part 8) to adjust the bolt if needed. Loosen it up enough so that you can tilt the monitor downward or upward. When you get it to a position you like, tighten the bolt and replace the plastic cover. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
Page 4 Copyright Notice: These instructions are a component of the UPLIFT Horizon™ Dual Monitor Arm. These instructions are part of the scope of delivery, even if the item is resold. These instructions are also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other ©...
