Uplift Desk STR017-SHT Manual

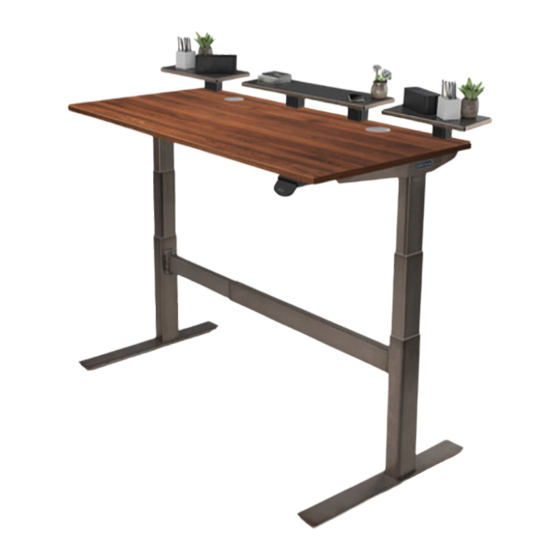

Desk Shelf or Monitor Stand, 15 in.
STR017-SHT

Package Contents

© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Pad
Tray Front cover Clamp Bracket Rear cover

Step 1

Connect the Bracket to the Tray in the orientation shown. Align
the pem studs (which are attached to the bottom of the Tray)
with the holes in the Bracket.
Screw the M5 Hex flange nuts onto the pem studs, and tighten
using the provided Flat wrench.

Step 2

Connect the Clamp to the Bracket, in the orientation shown,
using two #10-32 Flat head screws and tighten with a Phillips
head screwdriver.

Step 3

Open the clamp as much as needed to fit onto the desktop and
slide the assembly all the way onto the desk until it stops.
Clamp the assembly to the desk snugly but be sure not to
overtighten the clamp.
Overtightening can deform the Clamp bracket and cause the
Front and Rear covers to not attach correctly.
Flat wrench
M5 Hex flange nut
(qty 4)
#10-32 Flat head screw
(qty 2)
