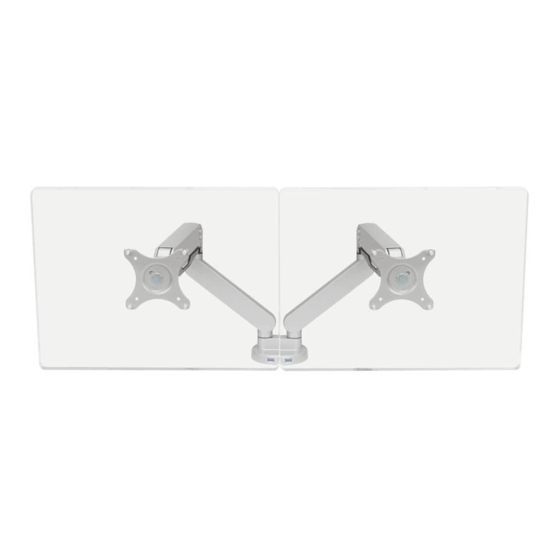

Uplift Desk ACC302 Instructions

View dual monitor arm

Hide thumbs

Part 1

UPLIFT View ™ arms

There are two ways to attach your UPLIFT View ™ Dual Monitor Arm to your desktop: Clamp and Bolt-thru assembly.

Part 2

Arm gasket

Part 3

Top Clamp

Part 4

Cable Cover

Part 5

Clamp Gaskets

(qty 4)

Part 6

Bottom Clamp

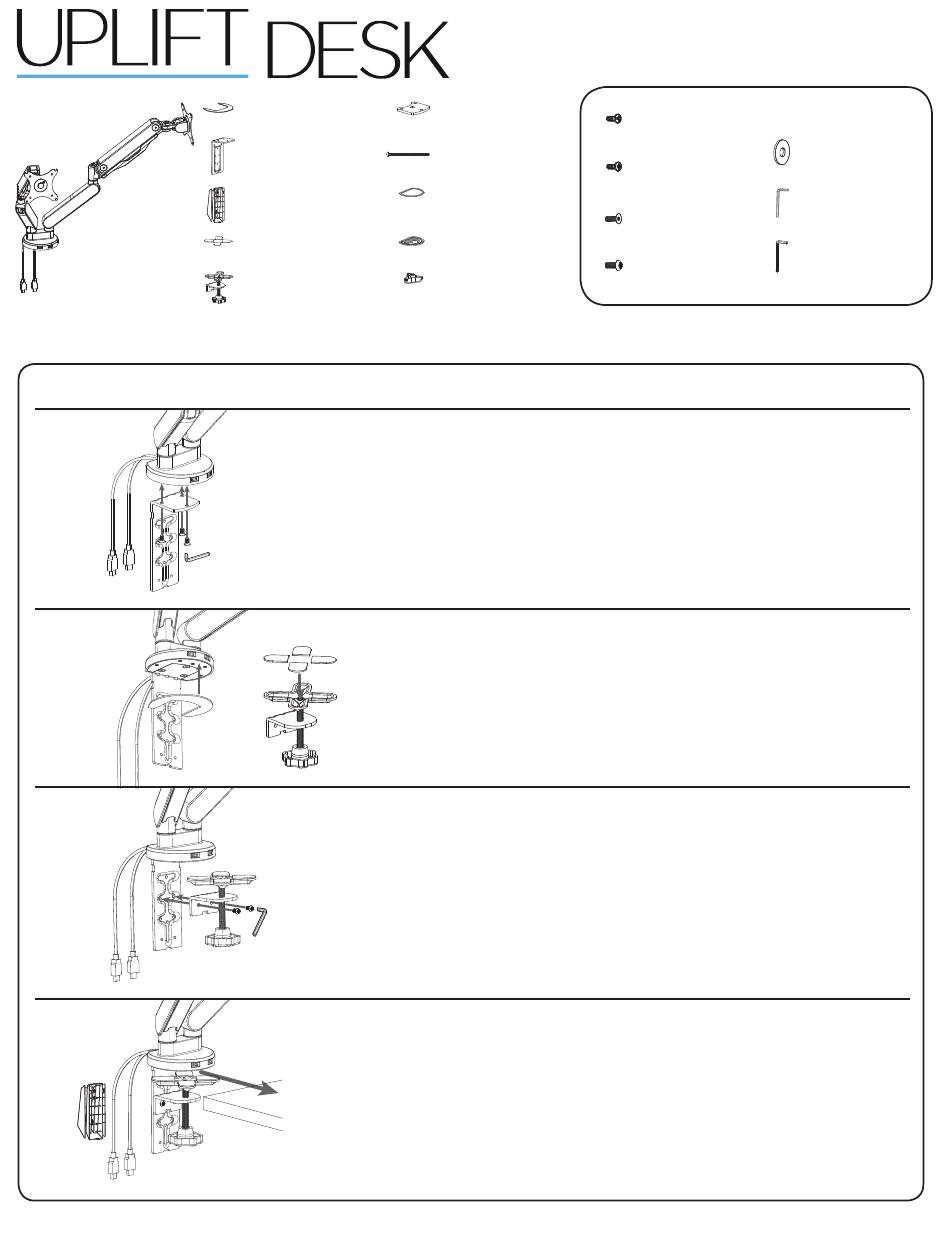

Clamp Assembly -

Clamp Step 1

Connect the top clamp (part 3) to the Adapt View ™ arm assembly using

the three M6x12mm screws (part C) and the small Allen wrench (part F).

Clamp Step 2

Apply the arm gasket (part 2) under the arm's mount, and the clamp gas-

kets (part 5) to the bottom clamp (part 6).

Clamp Step 3

Connect the bottom clamp assembly (part 6) by using M6x14mm (part D)

and the small Allen wrench (part F). Affix the Clamp gaskets as shown.

Please select the appropriate

mounting holes according

to the thickness of the desk.

Clamp Step 4

Turn the knobs counterclockwise to loosen them.

Slide the assembly onto your desk and turn the knobs clockwise to

tighten the clamp to the desk. Make sure that the clamp is secure. If the

clamp is too loose, the unit may wobble or fall.

Snap the cable cover (part 4) to the back.

View™ Dual Monitor Arm Instructions

ACC302

Part 7

Bolt top clamp

Part 8

Bolt

Part 9

Bolt gasket

Part 10

Bolt bottom clamp

Part 11

Bolt knob

Attach the arm to the back of your desk

Screws & Tools

Part A

M4x12mm screws

Part E

(qty 8)

Washers

Part B

(qty 16)

M5x12mm screws

Part F

(qty 8)

Allen wrench

Part C

(small)

M6x12mm screws

Part G

(qty 3)

Allen wrench

Part D

(large)

M6x14mm screws

(qty 2)

Table of Contents

Need help?

Do you have a question about the ACC302 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uplift Desk ACC302

Page 1 Make sure that the clamp is secure. If the clamp is too loose, the unit may wobble or fall. Snap the cable cover (part 4) to the back. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
Page 2 Using 2 more washers and screws, screw into the lower two holes on the Vesa mounting plate. (see Fig 2). Repeat steps 2-4 with your second monitor. When finsihed, tighten up all screws from this step and step 2. Fig. 2 © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
Page 3 “+” if your arm will not adjust to a higher position. When the arm stays in place after you’ve adjusted it, your UPLIFT Adapt Mobile is properly counterbalanced. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
Page 4 Copyright Notice: These instructions are a component of the UPLIFT View™ Dual Monitor Arm. These instructions are part of the scope of delivery, even if the item is resold. These instructions are also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other ©...
