Uplift Desk UPL020 Instructions

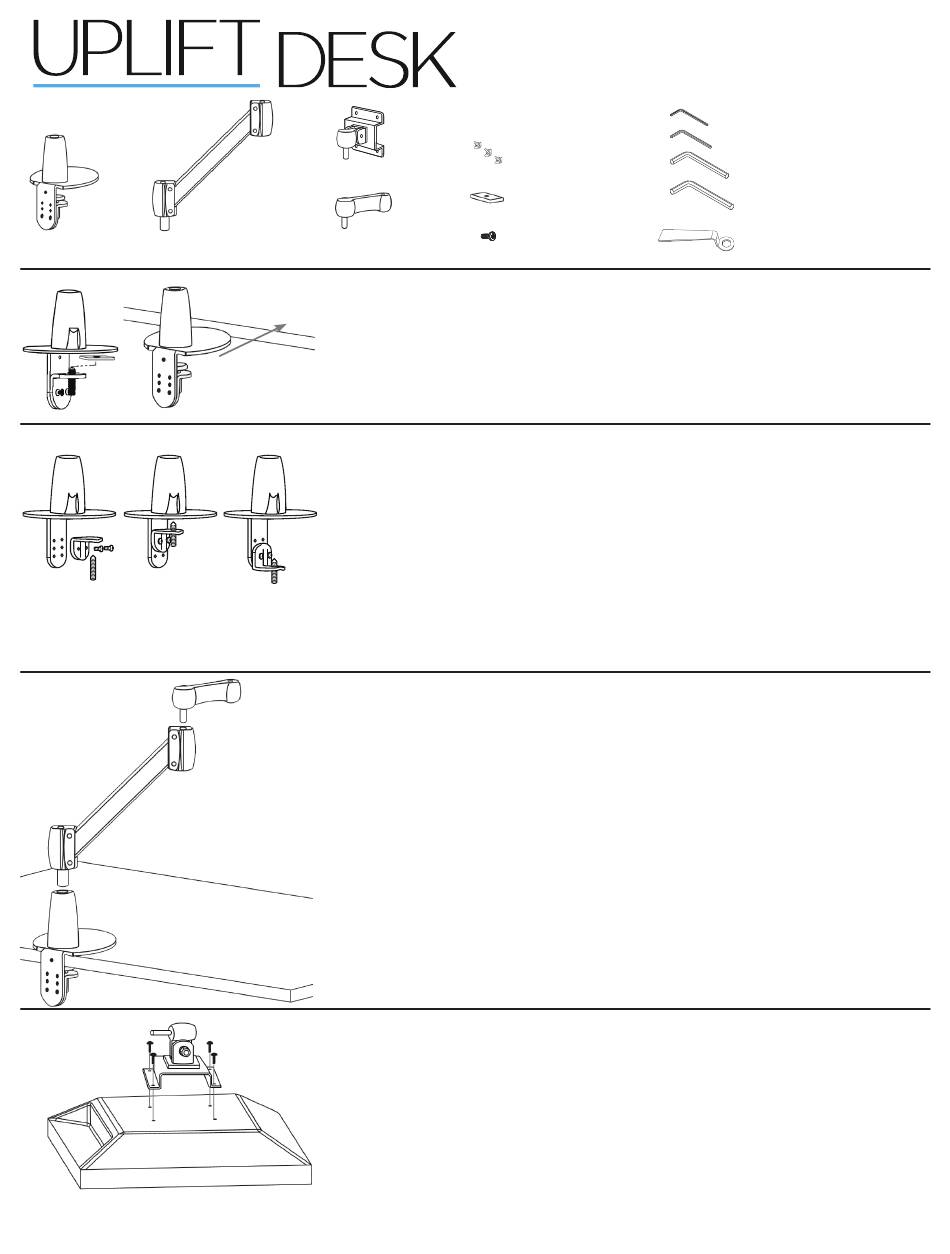

Package Contents:
Clamp Gas arm
fig. 1 fig. 2
min thickness
1.25''
UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Vesa mount
Horizontal arm
Step 1
Attach the Clamp to your desktop by placing the washer at the top of the
Clamp's bolt, and sliding it onto your desktop. Using the 6.5mm Allen wrench,
tighten the bolt until it is secure.
Step 2 (optional)
fig. 3
If the Clamp does not fit on your desk, you can adjust the clamp.
Unscrew the two bolts and remove the lower clamp from the main Clamp
assembly, and unscrew the bolt (see figure 1).
For the minimum size, reassemble the clamp as shown in Figure 2. This will fit
desks 1.25'' thick. For the maximum size, reassemble the clamp as shown in Fig-
max thickness
ure 3. This will fit desks up to 3.5'' thick.
3.5''
Once the Clamp has been set up to fit your thicker desktop, perform the actions
in Step 1 above.
Step 3
Insert the Gas arm into the Clamp.
Insert the Horizontal arm into the Gas arm.
Step 4
Place monitor face down on a flat surface, making sure not to scratch your
monitor screen.
Attach the Vesa mount to the back of the monitor using a Phillips screwdriver
and the four (4) Screws provided. The mount is designed to fit the industry
standard VESA 75mm & 100mm hole patterns.
®

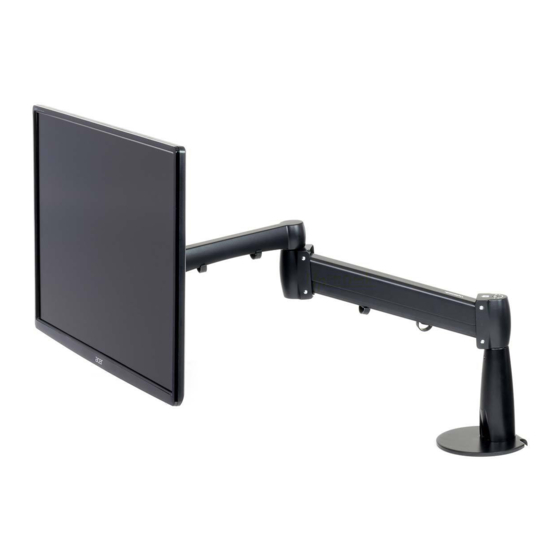

Single Monitor Arm
UPL020
Wire clips
(qty 3)
Washer
Screws
(qty 4)
3mm Allen wrench
4mm Allen wrench
6mm Allen wrench
6.5mm Allen wrench
13mm Flat wrench
UPL120/R02
