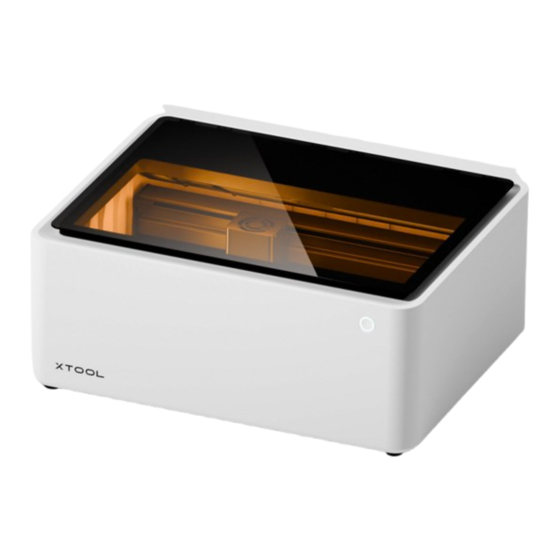

Xtool M1 Quick Start Manual

Hide thumbs Also See for M1:

Download this manual

Quick Start Guide

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Page 1 Quick Start Guide...
Page 2: Maintenance
List of items Meet your xTool M1 Use xTool M1 Function extension Annular indicator description Maintenance...
Page 3 Point blade pack pipe pack Safety Instructions Sicherheitshinweise Instrucciones de seguridad Consignes de sécurité Istruzioni di sicurezza Veiligheidsinstructies Instruções 安全上のご注意 안전�지침 安全說明安全说明 de segurança Cutting mat Quick start Safety (LightGrip: blue, low-grip; guide instructions FabricGrip: pink, high-grip) Meet your xTool M1...
Page 5 Laser outlet Blade module Power switch USB port Power port Extension port Smoke outlet Use xTool M1 Note: You can visit support.xtool.com/article/246 to watch the tutorial video. Unpack to take xTool M1 and other parts out. Install the smoke exhaust pipe.
Page 6 ■ Use the pipe clamp to hold the exhaust pipe...
Page 7 Install a point blade.
Page 8 Replace the blade point (if needed) ■ The point blade, blade module, and laser head are fit together through magnetic adsorption. You don't have to pull them hard. ■ The point blade is sharp. Exercise caution when pulling it out.
Page 9 ■ Point blades are consumables. Make sure that you stick the cutting board on the baseplate of xTool M1 before using the blade module for material processing. If the blade module fails to work properly, replace the point blade from it in time.
