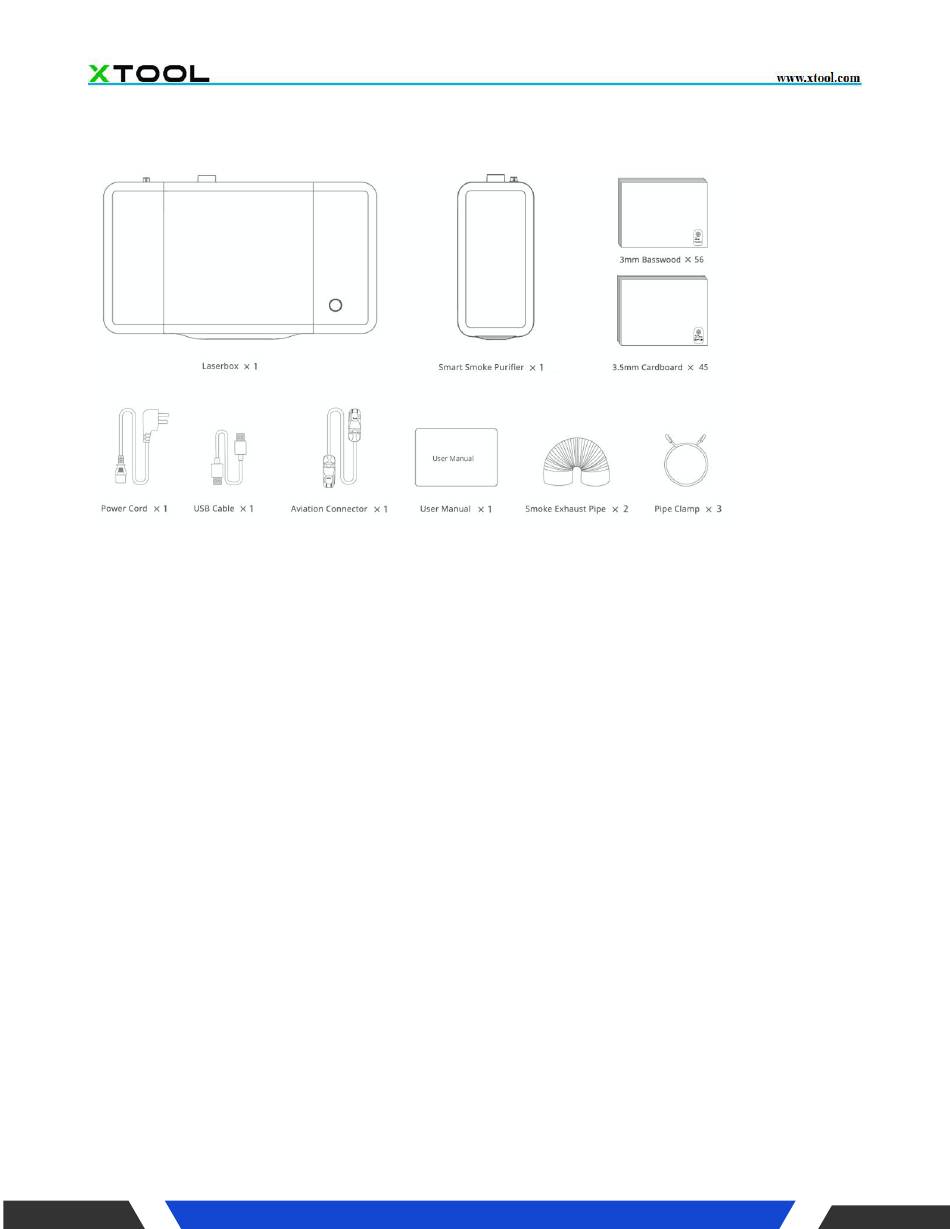

  • Page 1 Preparation List of items Meet your Laserbox Laserbox Document copyright belongs to xTool...
  • Page 2 Document copyright belongs to xTool...
  • Page 3 Button Annular Power Power indicator button interface interface Ethernet Smoke Aviation Camera Laser cable outlet interface head interface Tray Honeycomb Laser panel tube Smart smoke purifier Document copyright belongs to xTool...
  • Page 4: Download And Install Software

    Complete Green breathing Sleep mode. It goses into the sleep mode from the standby mode indicator after 10 minutes idle. Solid red Abnormal Solid purple The Laserbox firmware is being upgraded Download and install software Document copyright belongs to xTool...
  • Page 5 3.Select additional tasks Follow the on-screen prompts to select any of the additional tasks you want to perform, including adding a folder to the Start menu or creating a desktop shortcut. Click Install to start the installation. Document copyright belongs to xTool...
  • Page 6 4.Finish After the installation is complete, click Finish to exit the installer. Document copyright belongs to xTool...
  • Page 7: Connect Devices

    Connect devices Connect the smart smoke purifier to Laserbox. Document copyright belongs to xTool...
  • Page 8 The startup process takes a while, so please be patient. Connect laserbox to a computer Connect via a USB cable 1. Use a USB cable to connect Laserbox to your computer. Document copyright belongs to xTool...
  • Page 9 2. Open the software Laserbox, choose your Laserbox model, then click Next. 3. Select USB, then click Next to connect Laserbox to the computer. Document copyright belongs to xTool...
  • Page 10 4. Connected successfully. Connect via an Ethernet cable (not included in the package) 1. Use an Ethernet cable to connect Laserbox to your computer. Document copyright belongs to xTool...
  • Page 11 2. Open the software Laserbox, select choose your Laserbox model, then click Next. 3. Select Ethernet, then click Next to connect Laserbox to the computer. Document copyright belongs to xTool...
  • Page 12 4. Connected successfully. Connect via Wi-Fi. 1. Use a USB cable to connect Laserbox to your computer. Document copyright belongs to xTool...
  • Page 13 2. Open the software Laserbox, choose your Laserbox model, then click Next. 3. Select Wi-Fi, then click Next to connect Laserbox to the computer. Document copyright belongs to xTool...
  • Page 14 5. Remove the USB cable when successfully connected to a Wi-Fi network. When the computer and the laser cutter are on the same Wi-Fi network, you can wirelessly control the laser cutter using the software Laserbox. Document copyright belongs to xTool...
  • Page 15 1. Ensure your computer and the laser cutter are on the same Wi-Fi network. 2. Open the software Laserbox, select Scan device connected in LAN. 3. Select the device you'd like to connect from the list. Click Next. Document copyright belongs to xTool...
  • Page 16 4. Connected successfully. Features Document copyright belongs to xTool...
  • Page 17 Open the lid. Place a Makeblock material in the working area. Ensure the ring code side faces up. 2. Import the file. Open the software Laserbox. Select a sample project, or import an image file. 3. Click the start button. Document copyright belongs to xTool...
  • Page 18 In the pop-up, click Send to send the file to the laser cutter. 5. Press the button. After the file is sent to the laser cutter, follow the on-screen prompts to press the button on the laser cutter. The laser cutter starts working. Document copyright belongs to xTool...
  • Page 19 How to use it? 1. Place materials. Open the lid. Place a Makeblock material in the working area. Ensure the ring code side faces up. Document copyright belongs to xTool...
  • Page 20: Auto Measure

    Based on the measurements, Laserbox automatically adjusts the focus before it starts laser cutting or engraving. No manual measurement or manual focus is required. You can save much trouble. NOTE Document copyright belongs to xTool...
  • Page 21 Laserbox to process. Then, above the canvas appears an auto measurement prompt. 3. Start measuring. Click Measuring thickness in the prompt. The laser head will start measuring the thickness of the location where the image or shape is processed. Document copyright belongs to xTool...
  • Page 22 You can directly use the image extracted from the surface of an item to create your own project. It could improve the efficiency a lot. Document copyright belongs to xTool...
  • Page 23 In the Working interface, click Marquee on the left toolbar. 3. Frame the image. Drag your mouse to frame the image you'd like to extract. Use the eraser tool to remove what you don't need in the frame. Document copyright belongs to xTool...
  • Page 24 4. Finish Click √ to confirm. Document copyright belongs to xTool...
  • Page 25 Select images made with a pure-colored background. Adding images made of complex textures could lead to  failure in outline extraction. How to use it? 1. Import an image. Import an image made of enclosed outlines and pure color.. Document copyright belongs to xTool...
  • Page 26 2. Click Outline. Select the image you'd like to extract. On the left toolbar, click Outline. Wait for a while, then the image is automatically extracted by its outline. Document copyright belongs to xTool...
  • Page 27 Document copyright belongs to xTool...
  • Page 28 Click on the start button on the upper right corner to send the image to the laser cutter. Press the start button on the laser cutter, letting Laserbox engrave the image and cut it out. Document copyright belongs to xTool...
  • Page 29 On a Makeblock material or a piece of white A4 paper, use a black or red marker to draw images. 2. Put it into Laserbox. Open the lid. Put the material horizontally at the center of the working area. Document copyright belongs to xTool...
  • Page 30 In the software, you can go to Settings to define processing methods for Bring Sketch to Life. Go to Menu >Settings >Preference, then make sure you select the Bring sketch to life feature. You can select the options below to define how images are processed. Document copyright belongs to xTool...
  • Page 31 How to use it? 1. Switch to bring sketch to life Pro . Connect Laserbox to your computer. Go Menu > Settings > Preference, then select the Bring sketch to life Pro option. Document copyright belongs to xTool...
  • Page 32 Makeblock material on the right. Please note that the upper edges of the paper and material should align with the upper edge of the honeycomb panel. And make sure the A4 paper is about 1cm distant from the material. 4. Start processing. Document copyright belongs to xTool...
  • Page 33 5. Reuse the material. Laserbox can automatically identify which areas are already processed, and decide where to process next. So a piece of Makeblock materials is reusable for multiple times. Laser what you pick What can it do? Document copyright belongs to xTool...
  • Page 34 You can also leave your signature or custom images on the printed sheet, having them engraved in the result as well. How to use it? 1. Print out the sheet. Print out the sheet on a piece of A4 paper. Download the sheet at: https://www.makeblock.com/support/ps-laserbox Document copyright belongs to xTool...
  • Page 35 Select an image you like. Use a black marker to fill the box at the bottom right corner of the image. Draw images or leave a signature in the dashed box below. Laserbox will engrave your drawings/signature into the image you just select. 3. Put it into Laserbox. Document copyright belongs to xTool...
  • Page 36 Close the lid. Press the button on the laser cutter to let it automatically identify images and start processing. The image you select will be engraved on the material and cut out. The content in the dashed box will be engraved in the blank area of the image. 5. Reuse the material. Document copyright belongs to xTool...
  • Page 37 Laserbox can automatically identify which areas are already processed, and decide where to process next. So a piece of 3mm basswood is reusable for multiple times. Document copyright belongs to xTool...
