Xtool M1 Ultra Manual

List of items

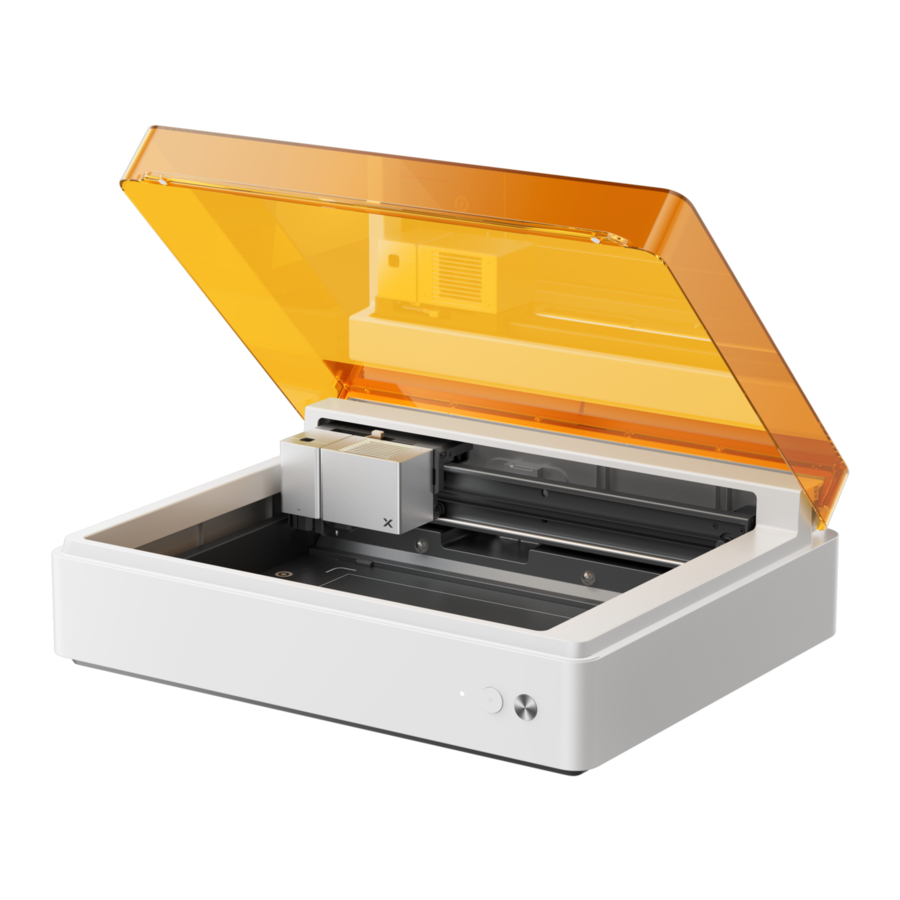

Meet your xTool M1 Ultra

Overview - Part 1
Overview - Part 2

  1. Basic carriage
  2. Multi-function holder
  3. Wi-Fi antenna
  4. Camera viewfinder point
  5. Indicator
  6. Point marking button
  1. Start/Stop button
  2. Rotary Attachment port
  3. Thumb screw for the baseplate
  4. Tube fitting for the air assist set
  5. Tube fitting for the fire safety set
  6. Power switch
  1. Power port
  2. Port for the key
  3. Extension port × 4
  4. USB port
  5. Smoke outlet

Preparations

  1. Remove the screws that fix the x-axis and y-axis guide rails
    Preparations - Step 1
  2. Install the laser module
    Preparations - Step 2
    Preparations - Step 3
  3. Install the smoke exhaust module
    warningDo not use the smoke exhaust module without the filter. Or it may absorb smoke and dust and get damaged.

    Preparations - Step 4
  1. Insert the key

    Preparations - Step 5
    • Insert the key to unlock the processing and related functions.
    • You can remove the key to lock the processing and related functions.
  2. Connect to a power supply
    Preparations - Step 6
  3. Download and install xTool Creative Space (XCS)
    Go to xtool.com/software to download and install xTool Creative Space (XCS).


    Search for xTool Creative Space in the App store or scan the following QR code to download the App.
  4. Connect xTool M1 Ultra to a computer
  • Turn on xTool M1 Ultra, connect it to a device, and then connect it on XCS.
    Preparations - Step 7
  • For details about how to use the software to operate xTool M1 Ultra for material processing, scan the QR code or visit support.xtool.com/product/35.

Use xTool M1 Ultra

For laser cutting

  • Fit the other two triangular prism holders together in the same way.
    Use - Step 1
  • Determine the number of the triangular prisms based on the material to be processed.
    Use - Step 2

For blade cutting or combination of laser processing and blade cutting
Blade cutting - Step 1

  1. Put the cutting mat on the baseplate

    warningNote: For paper materials such as cardboard and kraft paper, use the LightGrip cutting mat; and for fabric materials such as cloth, use the FrabicGrip cutting mat. Do not use any cutting mat when cutting a material with laser beams.
    Cutting mat
    Color Blue Pink
    Applicable to Lightweight materials Fabrics
    Material Cardboard, Wrapping paper, Printing paper Kraft paper, Pearl paper Fabric

    Blade cutting - Step 2

  2. Install the fine-point blade on the basic carriage
    Blade cutting - Step 2
    Blade cutting - Step 3

For pen drawing

  1. Install the fine-point pen on the pen holder
    For pen drawing - Step 1
  2. Install the fine-point pen on the multi-function carriage
    For pen drawing - Step 2
    For pen drawing - Step 3

For more functions


  1. For more functions - Step 1
  2. Install the accessory on the multi-function carriage
    For more functions - Step 2
    Select accessories according to the processing needs.
    For more functions - Step 3
    For more functions - Step 4

Indicator description

Indicator status Buzzer status Device status
Solid white / Standby, not connected to XCS (at AP mode)
Solid light blue / Standby, not connected to XCS (at STA mode)
Solid purple Sounding once Standby, connected to XCS
Breathing white / Sleeping, not connected to XCS
Breathing purple / Sleeping, connected to XCS
Blinking purple slowly / Firmware updating
Solid green / Processing area marking on XCS / Framing / Processing
Blinking blue slowly Sounding once Ready for framing / Ready to process
Solid blue / Task paused
Blinking yellow Sounding once The lid is open or not fully closed during operation.
Blinking yellow Keeping sounding Flame detected (small flame) / Device shaken
Blinking red Keeping sounding Flame detected (large flame)
Blinking yellow Sounding three times Exceptions occur
Blinking red Sounding three times Major exceptions occur
