Summary of Contents for Xtool P2
- Page 1 Instructions D2.1.1_KD010564000...

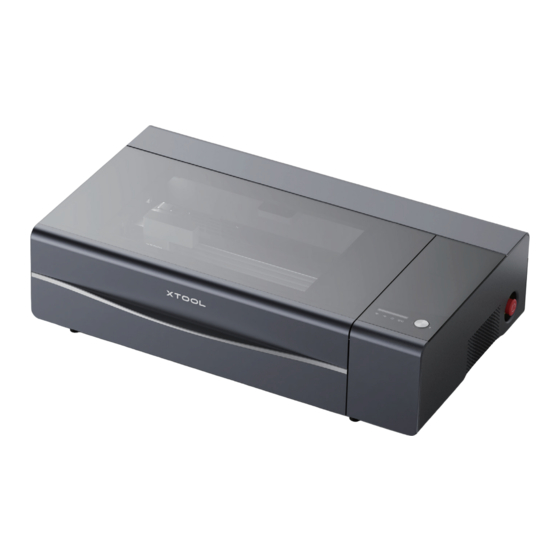

- Page 2 Dear xTooler: Thank you for choosing xTool P2. We are so grateful for your recognition, and sincerely hope you will enjoy this product! xTool P2 is an intelligent desktop 55 W CO laser cutter. With two cameras providing a high positioning accuracy, it allows you to get started easily. In...
-
Page 3: Table Of Contents
Statement Statement ■ Thank you for choosing the xTool products! ■ If you use the product for the first time, read carefully all the accompanying Safety First (Important) materials of the product to improve your experience with it. If you do not use the product according to the instructions and requirements of the Manual, or mis-operate the product due to misunderstanding, etc., the Company shall bear no... -
Page 4: Safety First (Important)
Safety First (Important) Under normal circumstances, the CO2 laser tube is completely enclosed in a casing during operation. The device has a safety interlock switch. If the lid is lifted during operation, the device will stop working to prevent harming DANGER—VISIBLE LASER RADIATION people. - Page 5 ■ Clean the device regularly. Excessive accumulation of residues and chippings On xTool P2, the warning and instruction signs are labelled where physical injuries from cutting and engraving would increase the risk of fire. The tray needs be or damage to the machine may be caused before and/or during operation. If a sign removed and cleaned periodically to ensure that there is no residue or chipping in is damaged or lost, replace it immediately.
-
Page 6: List Of Items
Meet your xTool P2 List of items xTool P2 Power cable USB cable (Type-C) Smoke exhaust pipe Antifreeze Funnel components Basswood 3 mm Corrugated paper Transparent 3.5 mm acrylic Quick Start Guide Button Annular indicator State display screen Screwdriver Hex key... -
Page 7: Use Xtool P2
2. Connect xTool P2 to your computer and connect it to XCS Connect device Distant-view camera Close-view camera Laser module You can start your creation after connecting them. For details about how to use XCS to operate xTool P2, see support.xtool.com. Extension port Network port USB port (Type-C) Slat Baseplate... -
Page 8: Understand The Indicator And Screen
H or L lit up H: Temperature too high L: Temperature too low Do not open the lid forcibly when it is locked. You can press the button on xTool Breathing blue Calibrating or image recognizing P2 to unlock it before opening it. -
Page 9: Use The Material Clamps
Use the material clamps Use Rotary Attachment No rotary attachment is included in the pack. 0 mm < h ≤ 12 mm Fit the other three material clamps in the same way. -
Page 10: Declaration Of Conformity
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. After-sales services For technical support, contact us at support@xtool.com. For more information about after-sales services, visit support.xtool.com.
