Xtool M1 Manual

List of items

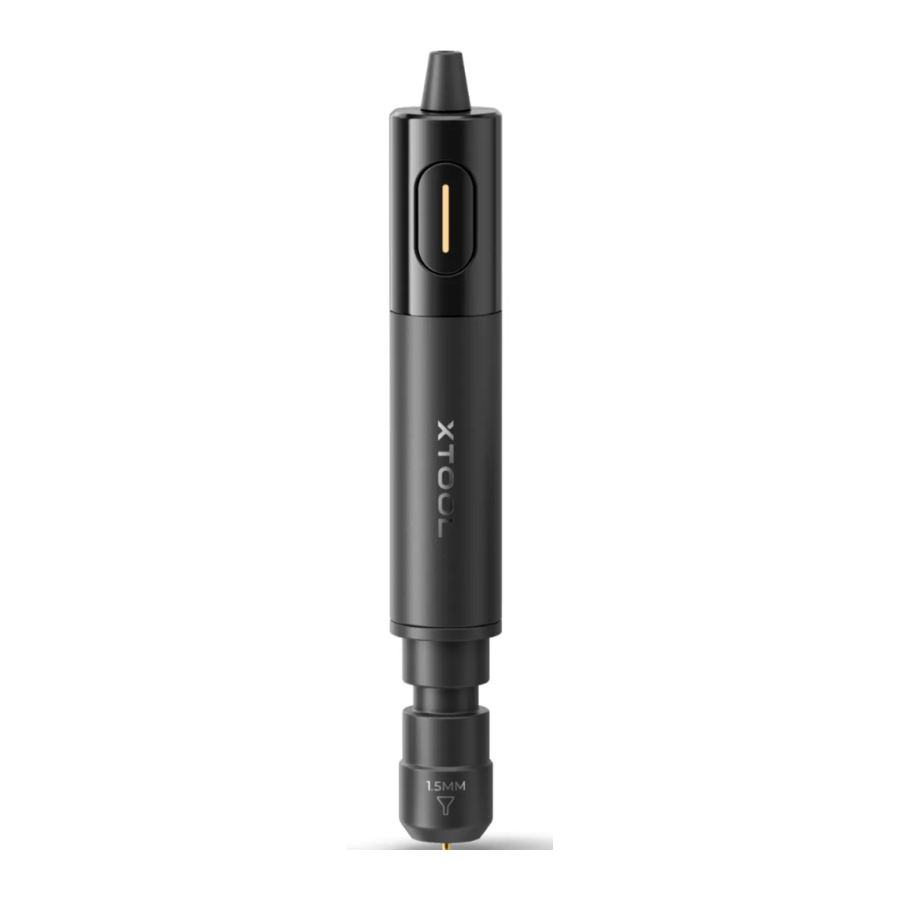

Use xTool M1 Ultra Hot Foil Pen Kit

Scenarios
Use the pen with cutting mat

Use the pen with electrostatic mat

Install the hot foil pen

• Install the cable bracket

Right-align the parts in the two dashed boxes.

Fully tighten the two screws.

• Place the hot foil pen

Ensure that the button on the hot foil pen faces you.

• Push the x-axis guide rail of xTool M1 Ultra back in place

1. Use a tissue to clean the right plate inside xTool M1 Ultra.
2. Place the cable clamp positioning guide card next to the screw, and align it with the bottom edge of the right plate.



5. Insert the connection cable of the hot foil pen into the rotary attachment port of xTool M1 Ultra.


To use with the electrostatic mat, operate as follows.

1. Use a tissue to clean the right plate inside xTool M1 Ultra.
2. Place the cable clamp positioning guide card next to the screw, and align it with the bottom edge of the right plate.



5. Insert the connection cable of the hot foil pen into the extension port of the electrostatic mat.


Place the material to be processed and foil paper

After placing the material to be processed and foil paper, press the button on the hot foil pen to start heating the tip.

The heating time may vary according to the environment. Wait one to two minutes before processing. If the ink module is used during processing, do not intertwine its connection cable with that of the hot foil pen.

Change the hot foil pen tip

After heating, the hot foil pen tip is hot. Do not touch it.

Hold the disassembly pen cap and pull out the hot foil pen tip.

FAQ

When I use the hot foil pen, the hot foiling result becomes poor. Why?
The performance of the hot foil pen may be affected by the following three factors.

1. Processing temperature for foil paper. The processing temperature for foil paper varies according to type. When you use foil paper from other brands with xTool hot foil pen, the hot foiling results may not be satisfactory. It is recommended to use the foil paper provided by xTool.
2. Ambient temperature. Using the hot foil pen in a cold environment may cause it to heat up slowly or fail to reach the appropriate processing temperature. Therefore, it is recommended to use the hot foil pen indoors with a temperature between 10°C and 35°C.
3. Condition of the hot foil pen. If your hot foil pen is damaged, contact our after-sales customer services.

After-sales services

For technical support, contact us at support@info.xtool.com.
For more information about after-sales services, visit support.xtool.com.

Safety first (important)

Read and get familiar with all safety precautions and procedures before using the product. Strictly follow all safety precautions.

• This product can be used only with xTool M1 Ultra.
• Do not touch the pen point when using the hot foil pen, as it may cause burns.
• After processing, the hot foil pen is still at a high temperature. To store it, cover the hot foil pen tip with the disassembly pen cap, and keep it out of reach of children.
