Xtool M1 User Manual

Ultra hot foil pen kit
Hide thumbs Also See for M1:

Advertisement

Quick Links

Download this manual

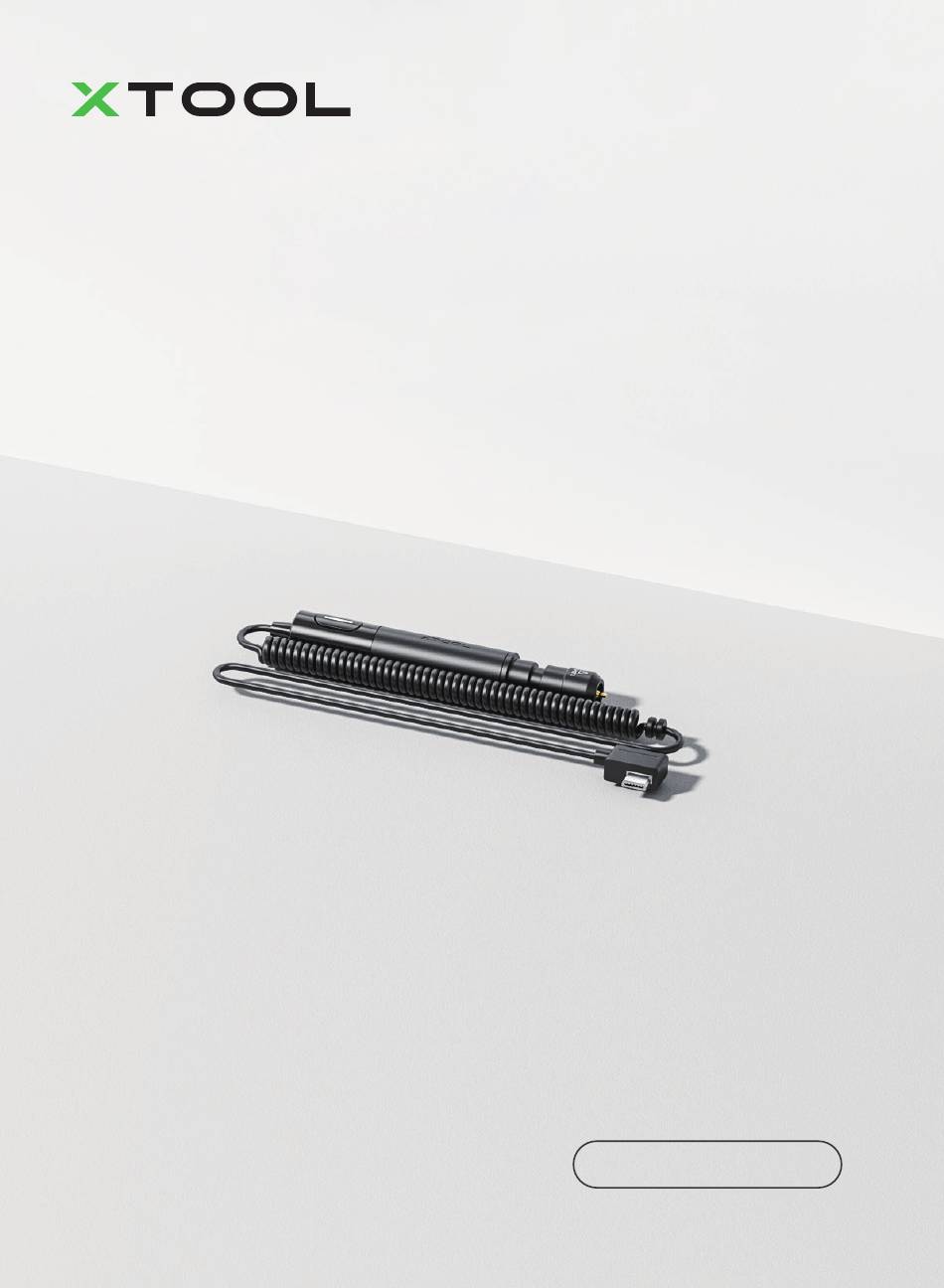

xTool M1 Ultra
Hot Foil Pen Kit
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xtool M1

Summary of Contents for Xtool M1

  • Page 1 M1 Ultra Hot Foil Pen Kit User Manual...

  • Page 2: Declaration Of Conformity

    Safety first (important) List of items Use xTool M1 Ultra Hot Foil Pen Kit FCC statement Declaration of conformity After-sales services...

  • Page 3: List Of Items

    Read and get familiar with all safety precautions and procedures before using the product. Strictly follow all safety precautions. ■ This product can be used only with xTool M1 Ultra. ■ Do not touch the pen point when using the hot foil pen, as it may cause burns.
  • Page 4 Use xTool M1 Ultra Hot Foil Pen Kit Scenarios Use the pen with cutting mat Use the pen with electrostatic mat...
  • Page 5 Install the hot foil pen Install the cable bracket Right-align the parts in the two dashed boxes.
  • Page 6 Fully tighten the two screws. Place the hot foil pen...
  • Page 7 Ensure that the button on the hot foil pen faces you.
  • Page 8 Push the x-axis guide rail of xTool M1 Ultra back in place (1) Use a tissue to clean the right plate inside xTool M1 Ultra. (2) Place the cable clamp positioning guide card next to the screw, and align it with the bottom edge of the right plate.
  • Page 9 Remove the cable clamp positioning guide card. Place the connection cable of the hot foil pen on the cable clamp.
  • Page 10 To use with the electrostatic mat, operate as follows. (1) Use a tissue to clean the right plate inside xTool M1 Ultra. (2) Place the cable clamp positioning guide card next to the screw, and align it with the bottom edge of the right plate.
  • Page 11 Lift the connection Remove the cable cable of the clamp positioning hot foil pen. guide card. Place the connection cable as illustrated. (5) Insert the connection cable of the hot foil pen into the extension port of the electrostatic mat. Keep the side with the triangular sign facing up.
  • Page 12 Place the material to be processed and foil paper The material to be processed is not included in the pack. After placing the material to be processed and foil paper, press the button on the hot foil pen to start heating the tip. The heating time may vary according to the environment.
  • Page 13 Change the hot foil pen tip After heating, the hot foil pen tip is hot. Do not touch it. Hold the disassembly pen cap and pull out the hot foil pen tip.
  • Page 14 Install another hot foil pen tip as needed. During installation, ensure that the protrusion on the tip aligns with the groove in the main unit.

  • Page 15: Fcc Statement

    1. Processing temperature for foil paper. The processing temperature for foil paper varies according to type. When you use foil paper from other brands with xTool hot foil pen, the hot foiling results may not be satisfactory. It is recommended to use the foil paper provided by xTool.
