Summary of Contents for Kramer PT-100
-
Page 1: User Manual

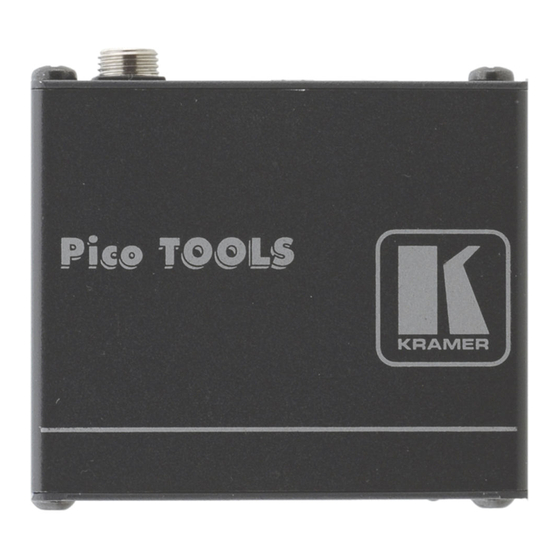

Kramer Electronics, Ltd. Preliminary USER MANUAL Model: PT-100 XGA Line Extender... -
Page 2: Table Of Contents
Defining the PT-100 XGA Line Extender Connecting the PT-100 XGA Line Extender Connecting the PT-100 XGA Line Extender as a Simple Line Extender Wiring the Twisted Pair Connectors Technical Specifications Figures ... -
Page 3: Introduction
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing your Kramer PicoTOOLS™ PT-100, XGA Line Extender which is ideal for: • Presentation and multimedia applications •... -
Page 4: Quick Start
Connect the source to the input of the TP-123 Connect the source to the input of the TP-123 Connect the line out of the TP-123 to the input of the PT-100 Connect the line out of the TP-123 to the input of the PT-100... -
Page 5: Overview
The PT-100 XGA Line Extender is a high-performance TP (Twisted Pair) line extender that transmits a computer graphics signal, an audio signal, unidirectional RS-232 data and 12V DC power over TP cable. The PT-100 lets you adjust the line level and equalization. This makes it ideal for connecting between sources and... -
Page 6: Recommendations For Achieving The Best Performance
Figure 1 Table 1 define the PT-100, XGA Line Extender. Figure 1: PT-100, XGA Line Extender Front and Rear Panels Table 1: PT-100, XGA Line Extender Front and Rear Panel Features Feature Function EQ. Trimmer Turn to adjust the line equalization... -
Page 7: Connecting The Pt-100 Xga Line Extender
Connecting the PT-100 XGA Line Extender Connecting the PT-100 XGA Line Extender The PT-100 can be used to compensate for varying TP cable lengths by adjusting the line level and equalization as shown in the following example. Figure 2: Connecting the PT-100 XGA Line Extender... -
Page 8: Connecting The Pt-100 Xga Line Extender As A Simple Line Extender
Connecting the PT-100 XGA Line Extender To connect the PT-100 as a TP line extender as part of a system with line equalization and level control, as illustrated in the example in Figure 1. Connect the video and audio sources (for example, computer graphics source) to the first TP-121. -
Page 9: Figure 3: Connecting The Pt-100 As A Simple Tp Line Extender
4. Connect the outputs of the TP-124 to the video, audio and RS-232 data acceptors (for example, an AV display system). 5. Connect the 12V DC power adapter to the power socket on the PT-100 and connect the adapter to the mains electricity. -
Page 10: Wiring The Twisted Pair Connectors
Technical Specifications Table 3 includes the technical specifications of the PT-100, XGA Line Extender. Table 3: Technical Specifications of the PT-100 XGA Line Extender INPUT: 1 CAT 5 IN on an RJ-45 connector OUTPUT: 1 CAT 5 OUT on an RJ-45 connector... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
