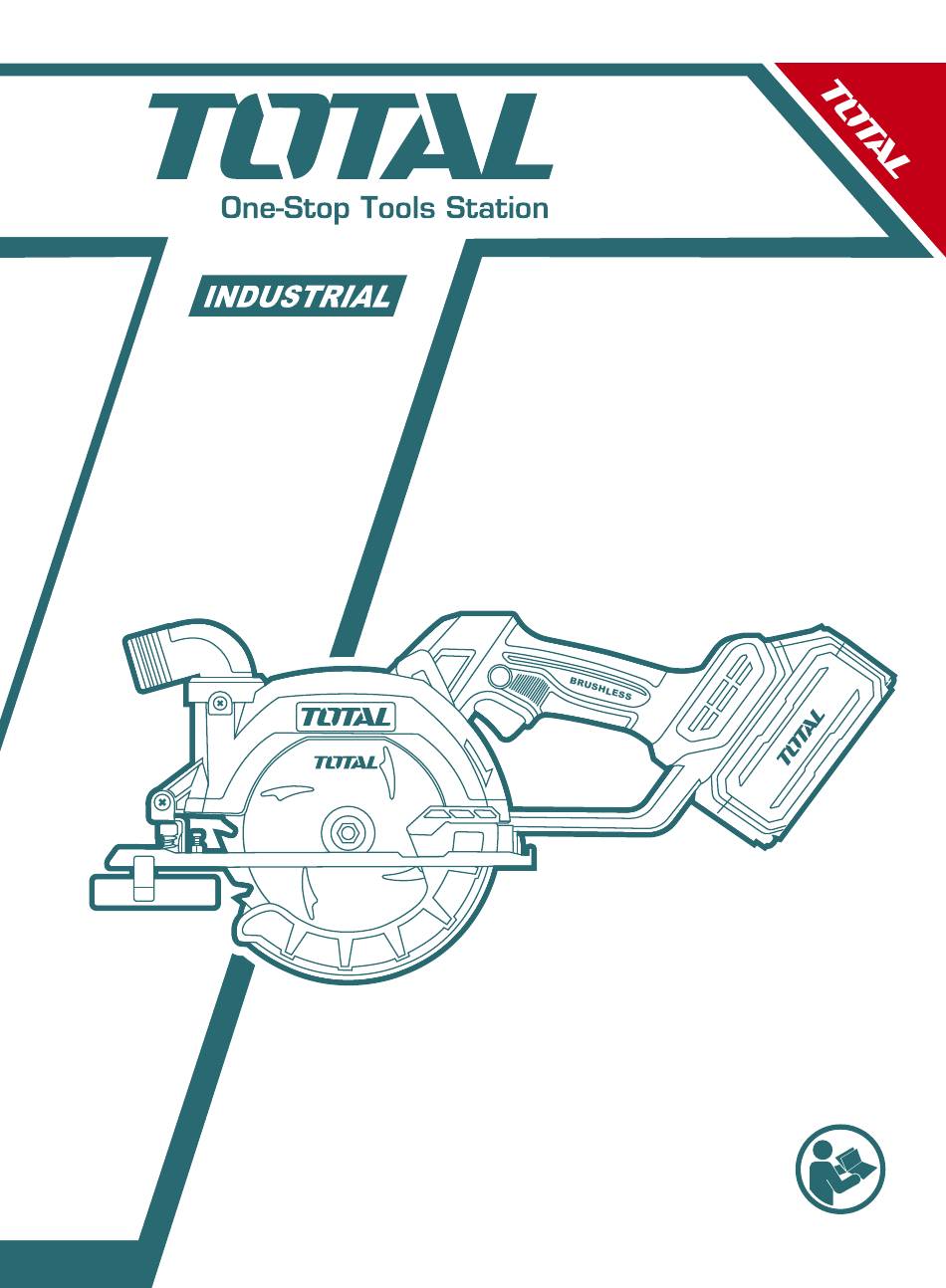

  • Page 1 PRODUCT MANUAL LITHIUM-ION CIRCULAR TSLI1402 TSLI1402xy UTSLI1402xy x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M)

  • Page 2: General Power Tool Safety Warnings

    | English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
  • Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
  • Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
  • Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
  • Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
  • Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
  • Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

  • Page 11: Additional Safety Warning

    | English ADDITIONAL SAFETY WARNING Safety instructions for all saws Cutting procedures ⚠ DANGER Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
  • Page 12 | English of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.

  • Page 13: Safety Instructions For Plunge Type Saws

    | English Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

  • Page 14: Residual Risks

    | English cutting width of the blade must be wider than the thickness of the riving knife. Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in preventing kickback.

  • Page 15: Technical Specifications

    | English SPECIFICATIONS Dust outlet Handle Blade Switch Lower guard Technical specifications TSLI1402 TSLI1402xy UTSLI1402xy x(blank,1,2,3,4,5,6,7,8,9,E, x(blank,1,2,3,4,5,6,7,8,9,E,S, Model No. S,A,M) A,M) y(blank, -1,-2,-3,-4,-5,-6,-7,- y(blank, -1,-2,-3,-4,-5,-6,-7,- 8,-9,E,S,A,M) 8,-9,E,S,A,M) Blade diameter 140mm 5-1/2˝ 50mm 2˝ 90° Max. cutting depth 33mm 1-3/10˝ 45° No load speed(/min) 6300/min Rated voltage...
  • Page 16 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
  • Page 17 | English OPERATION PICTURE...
  • Page 18 | English OPERATION PICTURE...
  • Page 19 | English FUNCTION DESCRIPTION Adjusting depth of cut (see Figure A) Figure A: 1. Lever ⚠ CAUTION After adjusting the depth of cut, always tighten the lever securely. Loosen the lever on the side of the rear handle and move the base up or down. At the desired depth of cut, secure the base by tightening the lever.

  • Page 20: Electric Brake

    | English ⚠ WARNING For your safety, this tool is equipped with lock-off lever which prevents the tool from unintended starting. Never use the tool if it runs when you simply pull the switch trigger without pressing the lock-off lever. Return tool a service center for proper repairs Before further usage.
  • Page 21 | English Be sure the blade is installed with teeth pointing up at the front of the tool. Use only the wrench to install or remove the blade. To remove the blade, press the shaft lock so that the blade cannot revolve and use the wrench to loosen the hex bolt counterclockwise.

  • Page 22: Operation

    | English OPERATION ⚠ CAUTION (see Figure H) Always insert the battery cartridge all the way until it locks in place. If you • can see the red part on the upper side of the button, it is not locked completely.
  • Page 23 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
  • Page 24 TOTAL TOOLS WORLD MADE IN CHINA T1023.V01 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
