  • Page 1 MITER SAW TS42142101 1400W...

  • Page 2: Security Instructions

    Security instructions To use this equipment correctly, you must observe the safety regulations, assembly and operation instructions within this manual. All those people who use and repair the machine must be familiar with the manual and informed of occupational hazards. Children and untrained persons may not use the miter saw.
  • Page 3 Caution The following risks may arise in relation to the use, maintenance and handling of the machine: 1. Keep work area organized and free of debris. 2. Consider the workplace where you use the machine. Do not use this electric machine in wet or damp areas.
  • Page 4 Safety rules for correct use Warning Before connecting the machine to a power source or outlet, make sure that the voltage supply is the same as that specified on the machine's nameplate. A power supply with a voltage higher than that specified for the machine can cause serious injury to both personnel and the machine.

  • Page 5: Description Of The Symbols

    Do not block the cutting protection of the machine. Allow free movement to prevent blade from being exposed. Wear a dust mask when using the machine. Don't forget to connect a dust collector to the machine and make sure it works properly. Be aware of injuries that can be caused by exposure to dust.

  • Page 6: Product Description

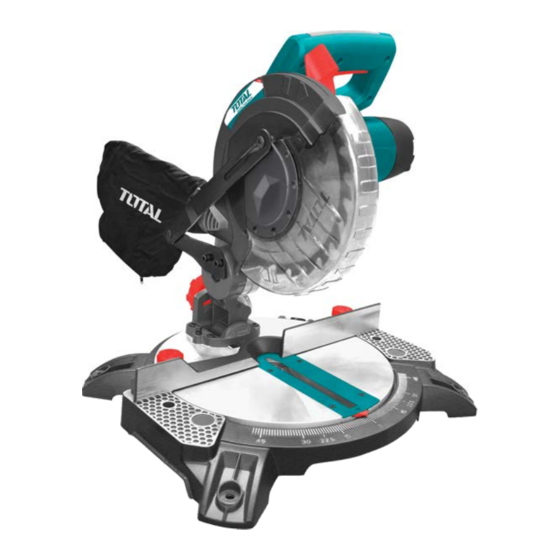

    Product description 1. Saw arm 12. Miter table 2. Shaft 13. Miter scale 3. Work handle 14. Cut slot 4. Top fixed blade guard 15. Miter lock 5. Rotating blade guard 16. Trigger switch 6. Shield Retraction Arm 17. Security lock 7.
  • Page 7 Warning Do not lift the saw while it is locked, use the work handle (3) Transport Raise the miter saw only when the saw arm is locked in the down position, the machine is turned off, and the plug is unplugged. Lift the saw only by the handle (3) or the outer protection covers.
  • Page 8 Miter table locks The miter table locks (15) are used to lock the table at the desired miter angle (fig. D). The miter saw cuts from 0° to 45° both left and right. To adjust the miter angle, loosen the miter table locks and rotate the miter table to the desired position. The miter table features positive click stops at 0°, 15°, 22.5°, 30°...
  • Page 9 Rotating lower blade guard The rotating lower blade guard (5) protects both sides of the blade (fig. G). It retracts onto the upper blade guard (4) when the saw is lowered into the work piece. On and off 1. To turn on the machine, press and hold the on/off trigger switch (16) (fig. H). 2.
  • Page 10 8. Rotate the blade by hand and check the alignment of the blade with the table at various points. 9. The edge of the square and the saw blade must be parallel. 10. If the saw blade runs off square, adjust as follows. 11.
  • Page 11 Place the fence square with the table 1. Make sure the machine is unplugged. 2. Push the saw arm (1) down to its lowest position and engage the spindle (2) to hold the saw arm in the transport position. 3. Loosen the miter locks (15). 4.
  • Page 12 Change a blade Attention Never try to use a blade larger than the rated capacity of the saw. It could come into contact with the blade guards. Never use a blade that is too thick to allow the outer blade washer to engage with the flats on the shaft.
  • Page 13 9. Remove the flat washer, outer blade washer and blade (fig. V). 10. Clean the inner blade washer and the outer blade washer where they contact the blade with a drop of oil. 11. Fit the new blade onto the shaft taking care that the inner blade washer is behind the blade (fig.
  • Page 14 Miter Saw Uses Cross-section A cross cut is made by cutting along the grain of the workpiece. A 90º cross cut is made with the miter table at 0º. Miter crosscuts are made with the table set at a non-zero angle (fig.
  • Page 15 9. Press the release latch (17) and slowly lower the blade into and through the workpiece. 10. Release the switch trigger (16) and allow the saw blade to stop rotating before removing the blade from the workpiece. Wait until the blade stops before removing the work piece.
  • Page 16 and for framing ceilings. Always make a test cut on a piece of scrap wood before cutting good material (fig. a). 1. Pull the shaft (2) and raise the saw arm to its maximum height. 2. Loosen the miter locks (15). 3.

  • Page 17: Exploded View

    Cleaning 1. Keep the air outlets of the tool unobstructed and clean at all times. 2. Remove dust and dirt regularly. Cleaning is best done with a soft brush or cloth. 3. Relubricate all moving parts at regular intervals. 4. Never use caustic agents to clean plastic parts. Caution Do not use cleaning agents to clean the plastic parts of the saw.
