Summary of Contents for Total TS100806

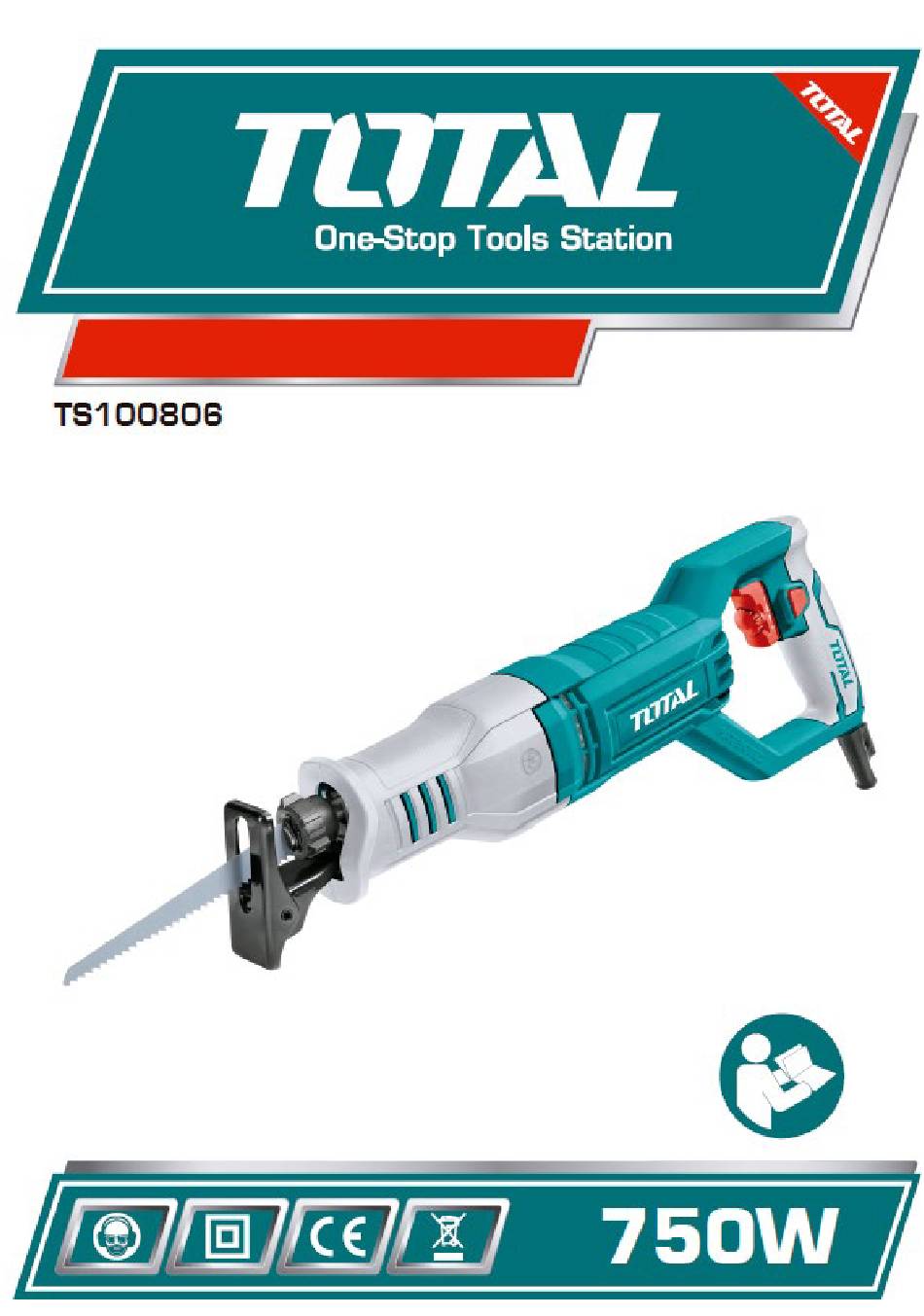

- Page 1 SABER SAW...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. Observe the relevant safety precautions when using the tool. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 d. Avoid accidentally turning the tool on. Make sure the switch is in the off position before connecting it to the power supply and moving it. e. Remove any adjusting key or wrench before turning on the power tool. A wrench or wrench attached to a rotating part of the power tool can cause serious injury.
-
Page 4: Additional Safety Warnings
Safety rules for correct use Double insulation for additional protection Read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
• Use a suitable extension cord: Use only an approved extension cord that is suitable for powering the tool. When the extension cord is on a reel, unwind the cord fully. Turn off the machine immediately in case of: • o Malfunction in the mains plug, power cord, or cable damage. -
Page 6: Technical Data
Technical data Data sheet Voltage 220-240V ~ 50 / 60Hz Power 750W No-load speed 900-3300 / min Cutting capacity: 115mm Wood 12mm Aluminum Steel Saber saw tool (x1) Saw blade (x2) Ignition brushes (x1) Hex wrench (x1) Package content Manual (x1) Note: Check the tool, parts, or accessories for damage that may have occurred during shipping. - Page 7 Set up Attention Before installing, repairing or maintaining the appliance, always turn off the operation switch and unplug the mains plug. Before initial operation, check whether the nominal frequency of the mains corresponds to the data of the type of place. Mounting Replacement and installation of the saw blade When mounting the saw blade, wear protective gloves, as there is a risk of injury from...
- Page 8 Functioning Warning Always observe the safety instructions and applicable regulations. Observe the correct mains voltage! The voltage of the power supply must match the voltage specified on the nameplate of the machine. Pivoting and retractable plate Due to its mobility, the adjustable footrest adapts to the required angular position of the surface.
-
Page 9: Maintenance And Troubleshooting
general, a higher speed will allow you to cut workpieces faster, but the life of the blade will be shortened. Stainless steel Plastic Aluminum Mild steel Lightweight, autoclaved concrete Wood Note: If the tool is operated continuously at low speeds for an extended period of time, the life of the motor will be shortened. - Page 10 o The cables from the mains plug or the socket are loose. Check or repair the plug and socket. o The switch is faulty. Replace the switch. 2. The operation switch is on, but unusual noises can be heard, the engine does not run or very slowly.
-
Page 11: Exploded View
Exploded view... - Page 12 SABER SAW...
