Summary of Contents for Total TP1016-1

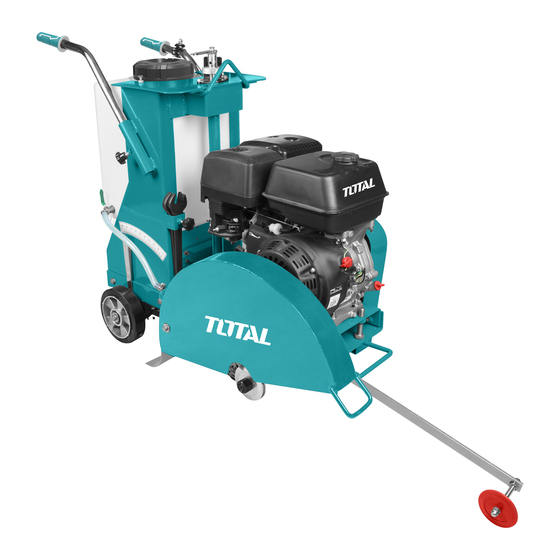

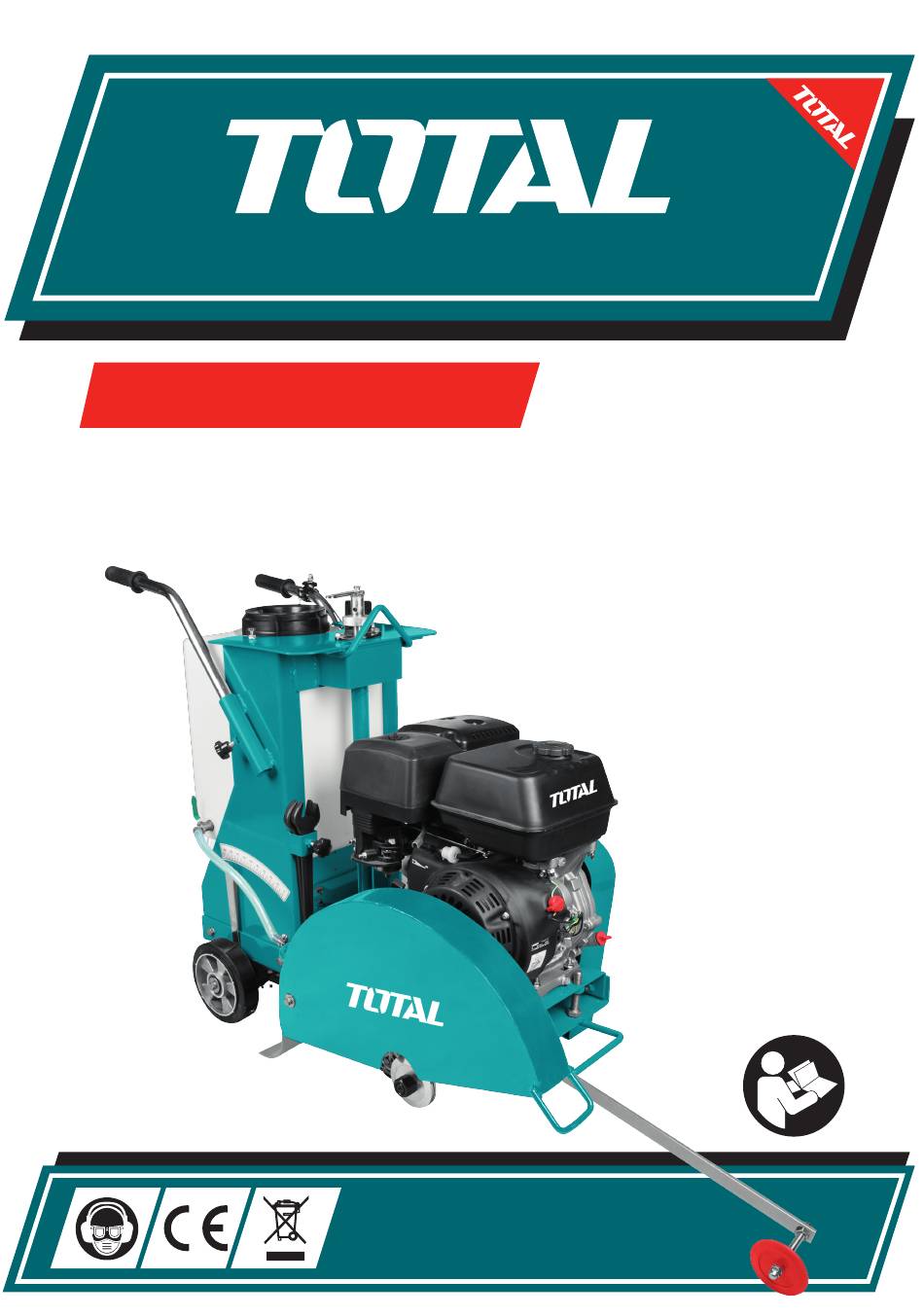

- Page 1 One-Stop Tools Station FLOOR SAW TP1016-1,TP1016-2,TP1016-2E, TP1016-3,TP1016-4...
-
Page 2: General Safety
RULES FOR SAFE OPERATION ■ ALWAYS check the machine for loosened threads or bolts before starting. WARNING: ■ NEVER touch the hot exhaust manifold, Failure to follow instructions in this manual may lead to muffler or cylinder. Allow these parts to cool serious injury or even death! This equipment is to be before servicing engine or saw. -
Page 3: Diamond Blade Safety
and cleanliness before mounting blade. ■ NEVER use fuel as a cleaning agent. Blade should fit snugly on the shaft and ■ ALWAYS read, understand, and follow procedures in against the inside/outside blade flanges. operator’s Manual before attempting to operate ■... -
Page 4: Operation
EMERGENCIES precision cutting including floors, pavements, ■ ALWAYS know the location of the nearest fire walkways, ramps and other flat sawing extinguisher and first aid kit. Know the location of the applications. nearest telephone. Also know the phone numbers of the nearest ambulance, doctor and fire department. - Page 5 INSTALLING BLADE the engine starts, open the choke and adjust the throttle as necessary to keep it running. Allow the 1. Be certain that the spark plug is disconnected or saw engine to warm up for a few minutes before is unplugged.
-
Page 6: Belts & Pulleys
Cutting/Belts & Pulleys CUTTING Lower the blade into concrete to required depth by turning TO ENGINE the tilt crank counterclockwise. Ease the saw slowly forward. Slow forward pressure if the saw begins to stall. Note: For deeper cuts (4 inches/102mm or more), several cuts should be made in incremental steps of 1-1/2 inch (38mm) to 2 inches (51mm) until the desired depth is reached. - Page 7 MAINTAINENACE - TROUBLESHOOTING UNEVEN SEGMENT WEAR (In wet cutting) Insufficient water Flush water system. ● ● (usually on one side of blade). Check flow to both sides of blade. ● Equipment defects also can cause Replace bad bearings, worn arbor ●...
- Page 8 MAINTAINENACE - TROUBLESHOOTING BLADE WOBBLES Blade is on a damaged or Check for bad bearings, bent shaft, ● ● Worn collar. Check collars/flanges to make sure ● ● Blade runs at an incorrect speed. they are clean , flat and of correct ●...
- Page 9 ● Flush clean water through the pump and spray the ● Contaminated Water/Fluids/Oils/Filters assembly every night. This prolongs the pump and must Be Disposed of Safely. blade life. SPECIFICATION Model TP1016-1 TP1016-2 TP1016-2E TP1016 -3 TP1016-4 Petrol TOTAL TOTAL Robin...
-
Page 10: Floor Saw
One-Stop Tools Station FLOOR SAW www.totaltools.cn TOTAL TOOLS CO.,LIMITED MADE IN CHINA T1216.V06...
