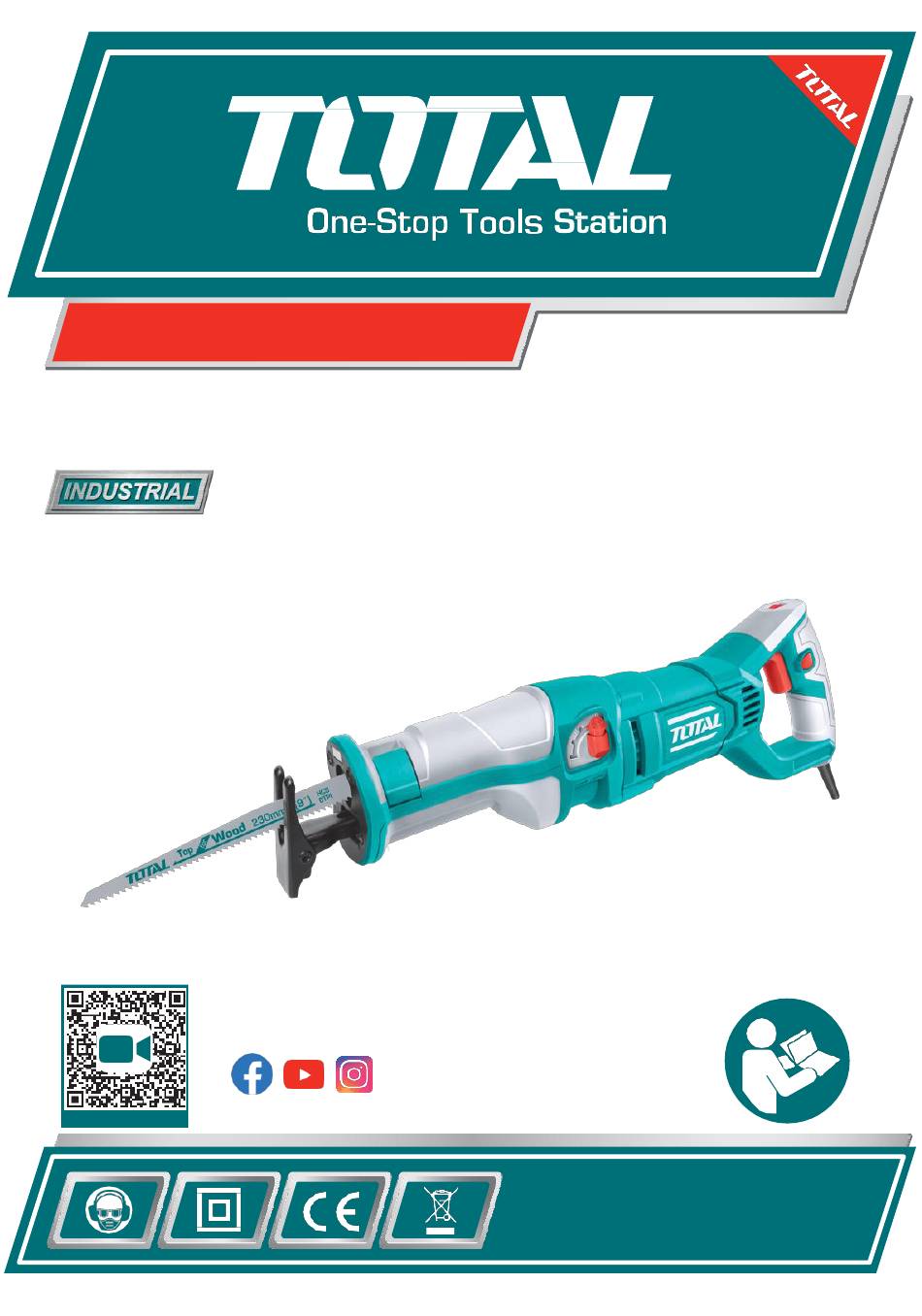

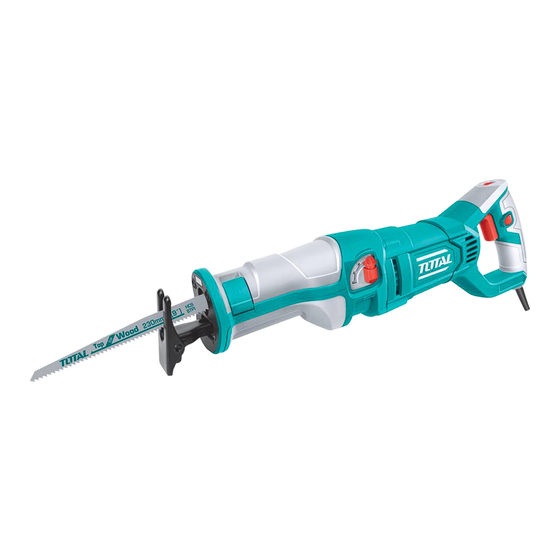

- Page 1 RECIPROCATING SAW TS1001201,TS1001201S,TS1001201-4,TS1001201-6, TS1001201-8,TS1001201M,UTS1001201 TOTAL TOOLS WORLD SCAN FOR VIDEO 1200W...
- Page 2 The symbols in instruction manual and the label on the tool Double insulated for additional protection. Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
- Page 3 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 5 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.
-
Page 6: Technical Data
1 Adjusting lever 5 Lock-on button for ON/OFF switch 2 Locking sleeve for saw blade 6 ON/OFF switch 3 Adjustable footplate 7 Speed control 4 Saw blade TECHNICAL DATA TS1001201 TS1001201S TS1001201-6 TS1001201-8 Number: UTS1001201 TS1001201M TS1001201-4 (BS Plug) -
Page 7: Electrical Safety
DUST/CHIP EXTRACTION • Dusts from materials such as lead-containing coatings, some wood types, minerals and metal Your TOTAL tool is double insulated in can be harmful to one’s health.Touching or accordance with EN 60745 ; therefore breathing-in the dusts can cause allergic reactions no earth wire is required. - Page 8 to the required position. Release the footplate •To switch off the machine, release the On/ release button and check that the footplate is Off switch or when it is locked with the lock-on firmly latched. Slide the footplate as required until button, briefly press the On/Off switch and then it is firmly latched.
- Page 9 TS1001201,TS1001201S,TS1001201-4,TS1001201-6, Exploded view TS1001201-8,TS1001201M,UTS1001201...
- Page 10 TS1001201,TS1001201S,TS1001201-4,TS1001201-6, TS1001201-8,TS1001201M,UTS1001201 Spare part list Part Description Qty NO. Part Description Knife lifting cam 1/78 Upper / lower cover gear Transparent lampshade Gear shaft gear box cover screw Reduction Gear Box screw Screw Trigger Torsion Rod Spring Baffle Trigger Shaft retainer ring 12...
-
Page 11: Reciprocating Saw
RECIPROCATING SAW www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China. MADE IN CHINA T0422.V01 1200W...
