Summary of Contents for Total TS92435526E

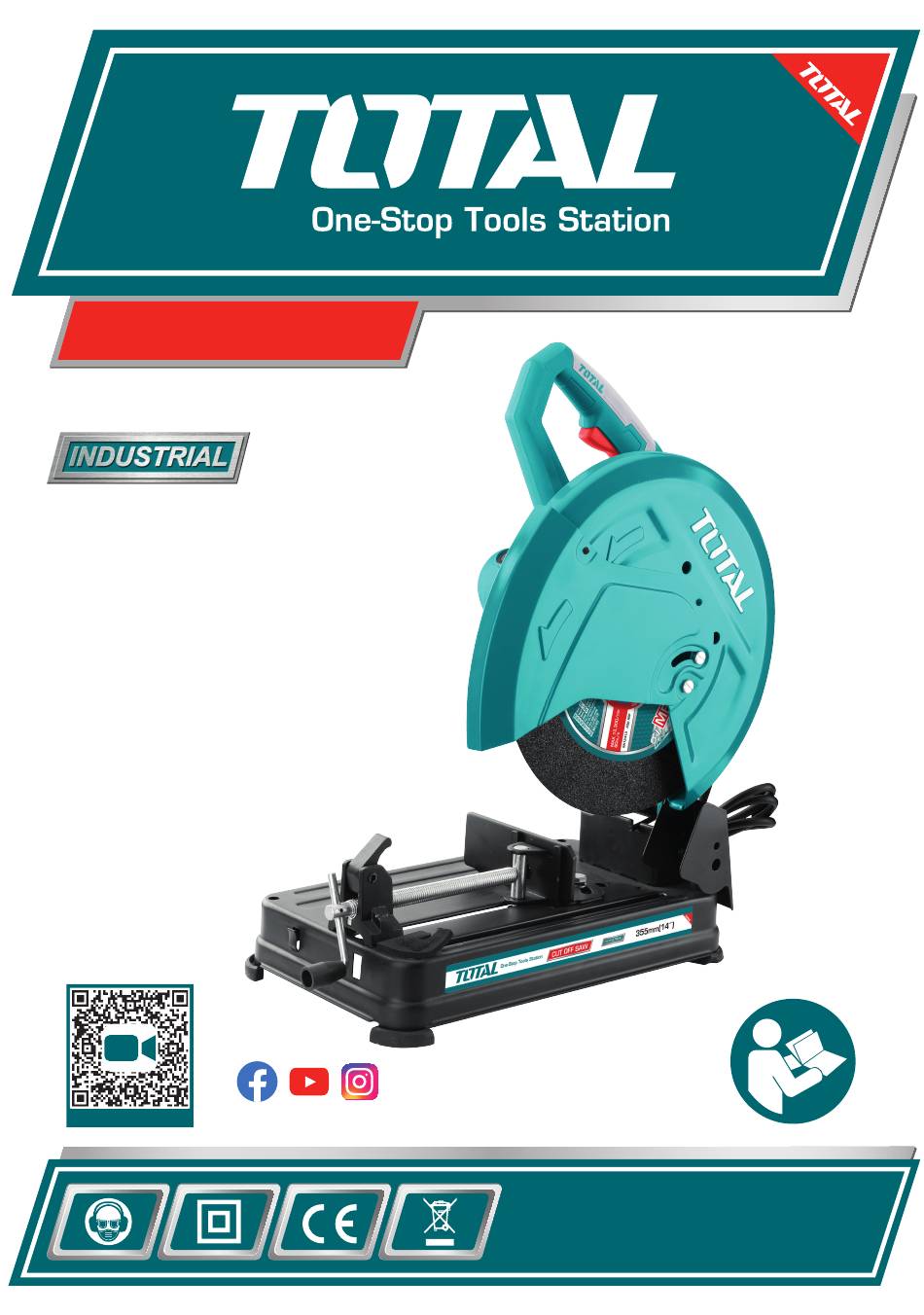

- Page 1 CUT OFF SAW TS92435526E TOTAL TOOLS WORLD SCAN FOR VIDEO 2400W...
- Page 2 The symbols in instruction manual and the label on the tool Double insulated for additional protection. Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Page 5 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
- Page 6 Additional Safety Warnings Safety instructions for cut-off machines 1) Cut-off machine safety warnings a) Position yourself and bystanders away from the plane of the rotating wheel. The guard helps to protect the operator from broken wheel fragments and accidental contact with wheel. b) Use only bonded reinforced or diamond cut-off wheels for your power tool.
- Page 7 j) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken wheel may fly away and cause injury beyond immediate area of operation. k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel.
- Page 8 e) When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the cutting unit motionless until the wheel comes to a complete stop. Never attempt to remove the wheel from the cut while the wheel is in motion otherwise kickback may occur.
- Page 9 Technical Specifications: Model TS92435526E Input power: 2400W Rated voltage: 220V-240V~50/60Hz Blade size: 355x25.4x3mm No-load speed: 3900/min Max. cutting capacity: in round pipe: 100mm in square steel: 100X100mm in rectangle: 120X100mm Max. cutting steel bar: 50mm Specific Safety Warnings a) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
- Page 10 q) Do not use damaged, out-of-center or vibrating cutting discs. Damaged cutting discs cause increased friction, binding of the cutting disc and kickback. r) Always use cutting discs with correct size and shape (diamond versus round) of arbor holes. Cutting discs that do not match the mounting hardware of the cut off grinder will run eccentrically, causing loss of control.
- Page 11 designed. It will do the job better and more safely at the rate for which it was intended. Do not modify this product, and do not use this product for a purpose for which it was not intended. People with pacemakers should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.
- Page 12 Reinstall the Outer Flange (with the concave side facing the Wheel), washer, and Screw. Make sure to firmly tighten the Screw in al clockwise direction while depressing the Spindle Lock. Reinstall the Upper Guard, and secure it in place with the Knurled Screw. The Quick Lock Vise allows for the angle of cut to be adjusted from 0 to 45 degrees to the left and 0 to 30 degrees to the right.
- Page 13 Allow the Grind Wheel to spin up to full speed. Then, slowly lower the Grind Wheel into the workpiece. If the Grind Wheel does not pass completely through the workpiece, Raise the Saw Arm, turn off and unplug the Saw, and wait until it comes to a complete stop. Remove stock being cut. Then, lower the Grind Wheel, following the instructions on page10.
- Page 14 TS92435526E Exploded view...
- Page 15 TS92435526E Spare part list Part Description Part Description Brush cover Hex nut Carton brush Screw Pan head screw Left handle Spring washer Switch Flat washer Right handle Motor housing Fixed guard Lock pin Hex nut Spring Spring retainer Stator Washer...
- Page 16 CUT OFF SAW www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road , Suzhou Industrial Park , China. MADE IN CHINA T0521.V02 2400W...
