Summary of Contents for Total TMFS7501

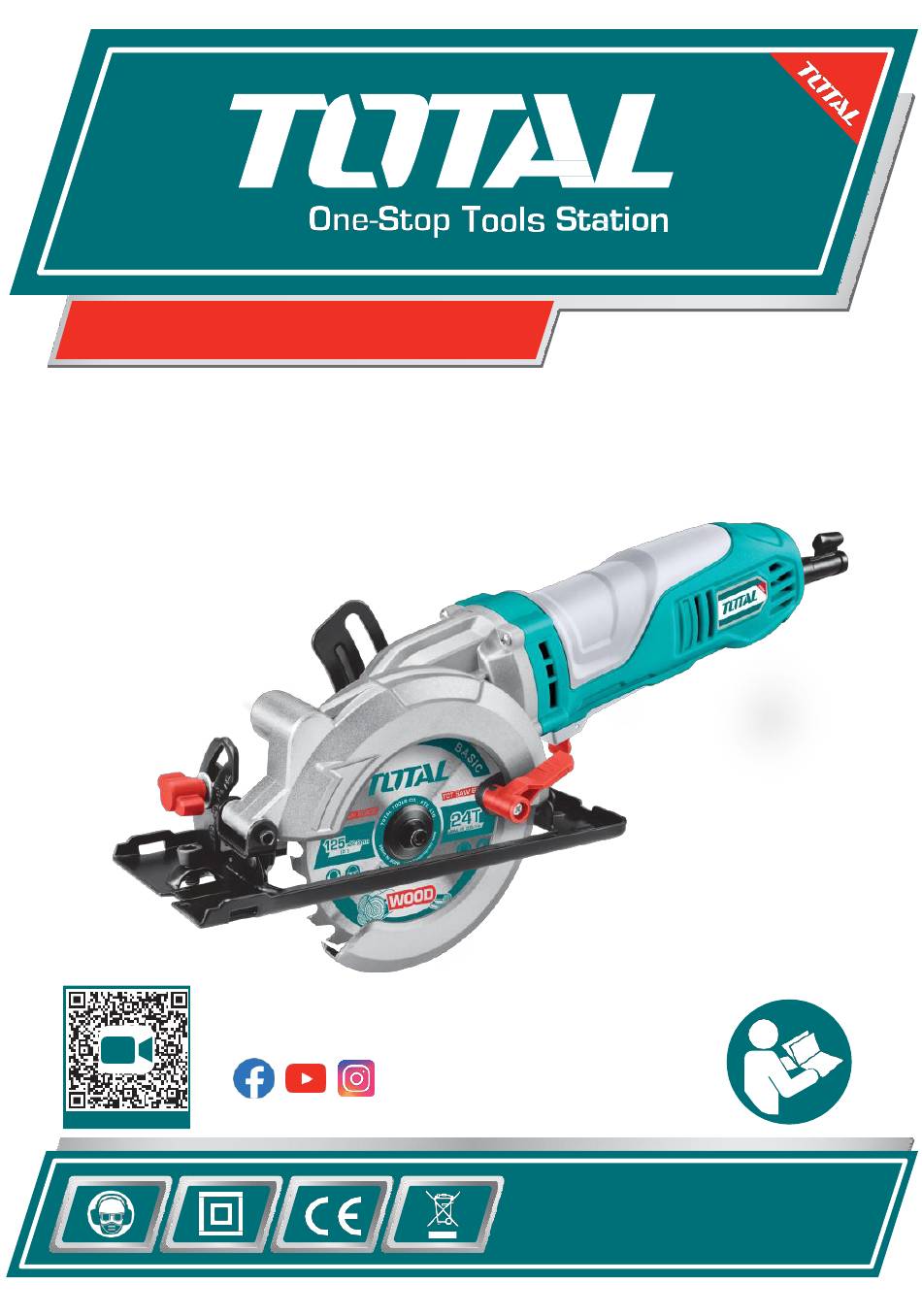

- Page 1 MULTI FUNCTION SAW TMFS7501,TMFS7501M,TMFS7501-4,TMFS7501-7, TMFS7501-8,TMFS7501-9,UTMFS7501,UTMFS7501-9 TOTAL TOOLS WORLD SCAN FOR VIDEO 750W...
- Page 2 The symbols in instruction manual and the label on the tool Double insulated for additional protection. Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Page 5 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
- Page 6 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. power tool is maintained. Additional Safety Warnings Safety instructions for all saws Cutting procedures DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing.
- Page 7 c) When restarting a saw in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted. d) Support large panels to minimise the risk of blade pinching and kickback.
- Page 8 Residual risks Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
-
Page 10: Adjusting The Cutting Depth
The rncular multipurpose tool to cut soft or hard wood, plywood, esopal covered materials, 「 This tool is not designed to cut metal or masonry, cement or bncks Turning On • Connect the plug in the power supply • Turn ON the tool pushing the switch lock backward (a), then, press lightly the... -
Page 11: Parallel Guide Adjustment
Ask to turn tool s minutes to make even contact between the carbon brushes commute 「 ·Use only original TOTAL Spare carbon brushes specifically designed with hardness resistance adequate for each type of motor. Carbon ushesthat re out of spec1f1cation 「... - Page 12 2. Applications 1. Description The hand-held circular saw is designed for sawing TMFS7501 TMFS7501-4 TMFS7501-8 TMFS7501-7 straight cuts in wood, in materials similar to wood, Model No. TMFS7501M (IRAM Plug) (CHILE Plug) (BS Plug) and in plastics. Voltage 220-240V~50/60Hz Power rating...
- Page 13 TMFS7501,TMFS7501M,TMFS7501-4,TMFS7501-7,TMFS7501-8, TMFS7501-9,UTMFS7501,UTMFS7501-9 Exploded view...
-
Page 14: Part Description
TMFS7501,TMFS7501M,TMFS7501-4,TMFS7501-7,TMFS7501-8, TMFS7501-9,UTMFS7501,UTMFS7501-9 Spare part list Part Description Part Description Saw blade pressure plate screw Bearing 608-2Z Pressure Plate Gear Pressure Plate First gear shaft Cross Screw M4x16 Bearing 607-2Z Inside cover spanner Circlip for shaft 22 Small cone gear Guard Bearing 629.2RS... - Page 15 MULTI FUNCTION SAW www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China. MADE IN CHINA T0322.V01 750W...
