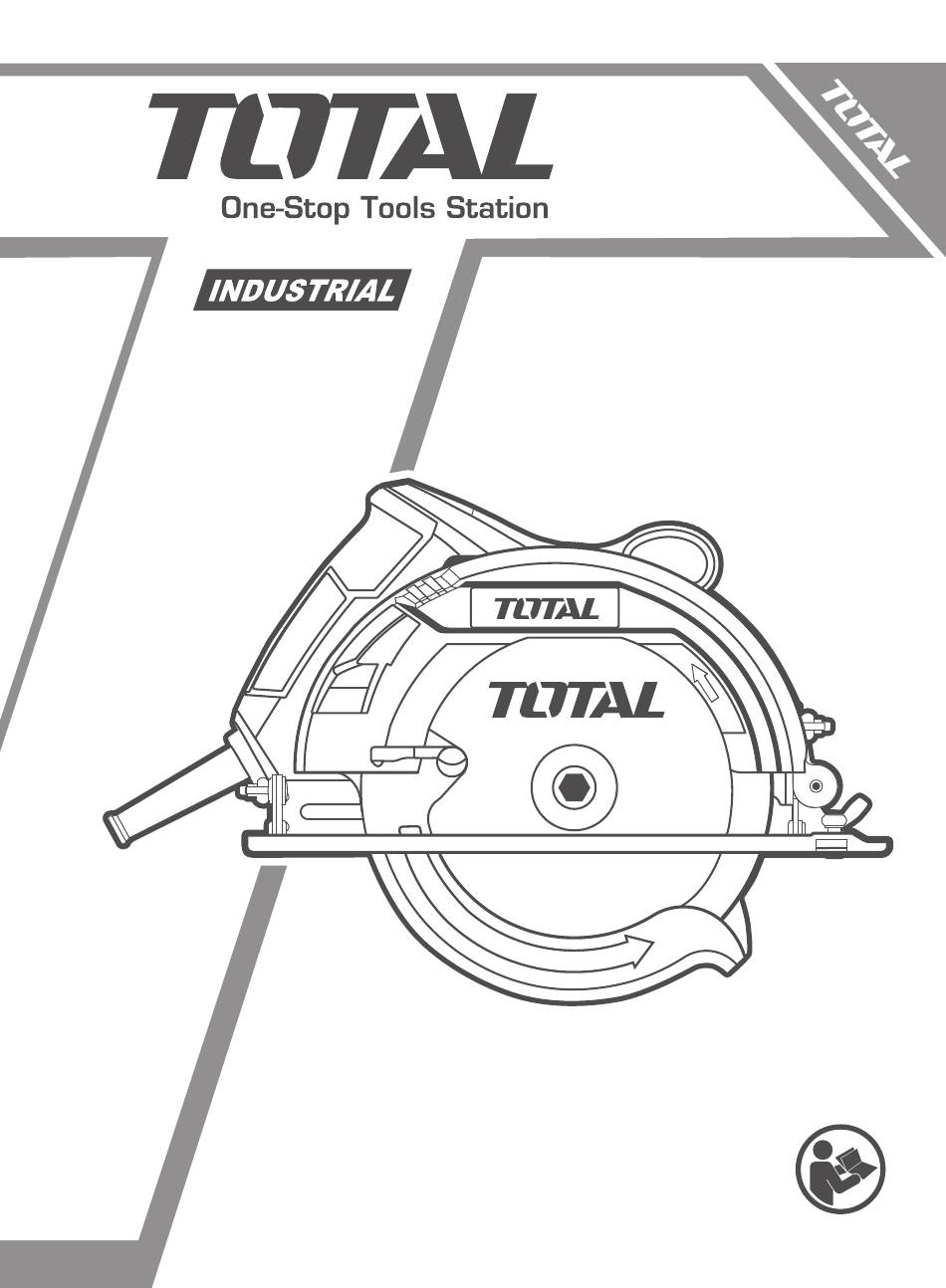

- Page 1 PRODUCT MANUAL CIRCULAR TS1161856 UTS1161856 TS1161856xy UTS1161856xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS ⚠ Warning! Work area safety Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. - Page 3 | English operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting.
- Page 4 | English breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
- Page 5 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Safety instructions for all saws Cutting procedures ⚠ Danger Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. Do not reach underneath the workpiece. - Page 7 | English out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
- Page 8 | English blade or any other part, in all angles and depths of cut. Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
-
Page 9: Residual Risks
| English function, the body of the blade must be thinner than the riving knife and the cutting width of the blade must be wider than the thickness of the riving knife. Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in preventing kickback. -
Page 10: Technical Specifications
| English SPECIFICATIONS Handle Additional handle Lower guard Lock screw for mitre cuts Flange Lock screw for the parallel stop Saw blade Parallel guide Accessories Parallel guide 1pcs 3. TCT blade 1pcs Wrench 1pcs 4. 1Set extra carbon brushes Technical specifications TS1161856 Model No. - Page 11 | English OPERATION PICTURE...
-
Page 12: Operation
| English OPERATION Applications The hand-held circular saw is designed for sawing straight cuts in wood, in materials similar to wood, and in plastics. Safety regulations The corresponding safety information can be found in the enclosed booklet. Working with the hand-held circular saw •... - Page 13 | English 45° cuts adjust the parallel guide 9 using the scale on groove B. Observe the saw blade width. Tighten the lock screw. ⚠ Important First make a trial cut. Adjustment of the cutting depth (see Figure B) 1. Release the locking lever 1. 2.
- Page 14 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 15 TOTAL TOOLS WORLD MADE IN CHINA T0623.V09 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
