ProCon — DO3000-C Series
®
Dissolved Oxygen Controller

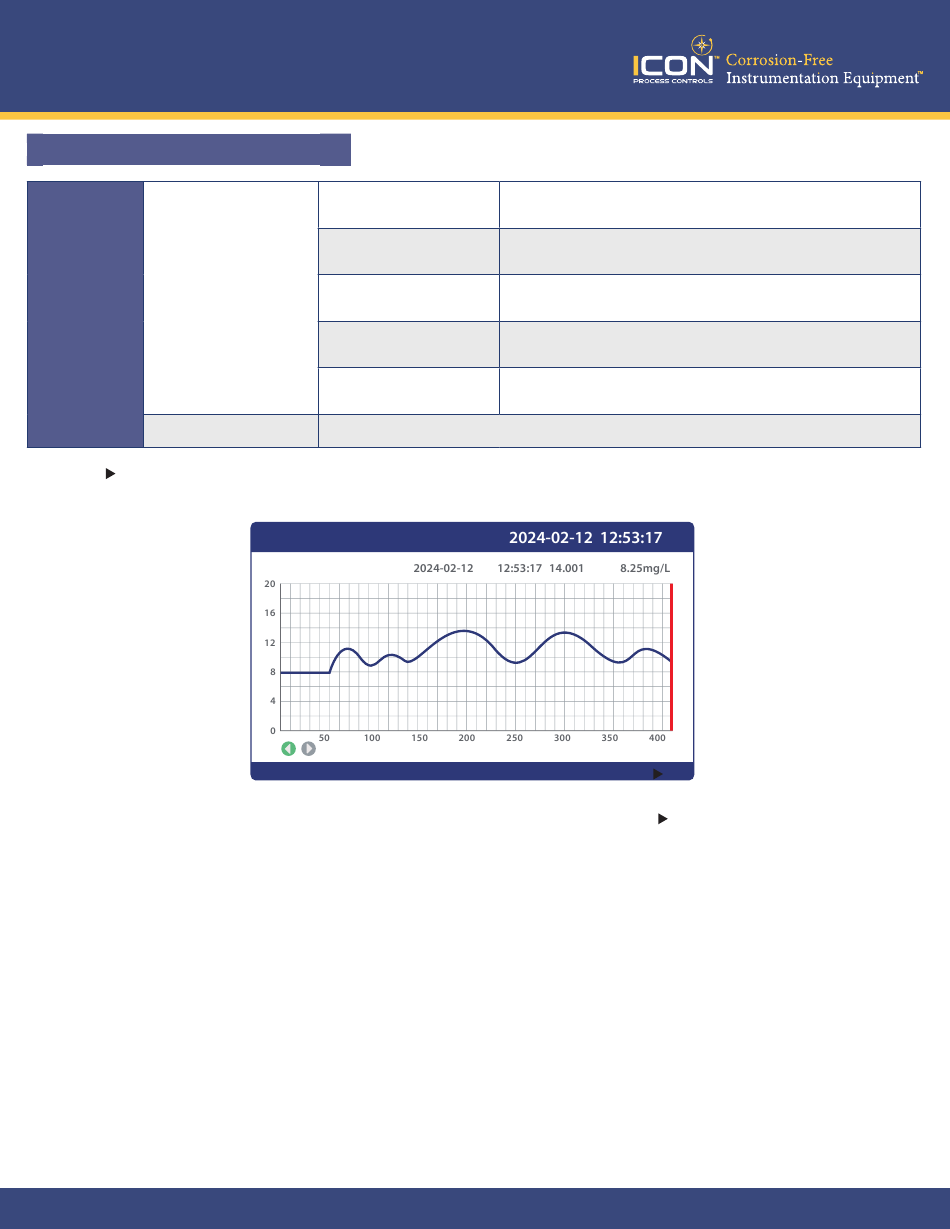

Graphic Trend (Trend Chart)
Description
Data Recording
Data Log
Data Query
Press the [ /TREND] button in the measurement mode to view the trend chart of the saved data directly. Pressing the
[ESC] button returns to the measurement screen. There are 480 sets of data record per page.
In the current screen, press the [CAL] key to move the data display line to the left and [
right. Press [INFO] to change the chart display range.
Data Recording Interval : Users can select the recording interval here. Once selected, the instrument will save the data
at the specified interval.
Data Query : Enter the number of records to query here, then press [ENT] to retrieve the historical data.
25-0671 © Icon Process Controls Ltd.
Interval
Retrieve the history based on the amount of data stored in the controller
Trend Chart Display
Fluorescence Dissolved Oxygen
7.5 s
1 min
5 min
10 min
60 min
Store Data Every 7.5 Seconds
Store Data Every 60 Seconds
Store Data Every 300 Seconds
Store Data Every 600 Seconds
Store Data Every 3600 Seconds
/TREND] key to move towards
