Icon Process Controls ProCon DO3000-C Series Quick Start Manual

Dissolved oxygen controller
Hide thumbs

Advertisement

Quick Links

Download this manual

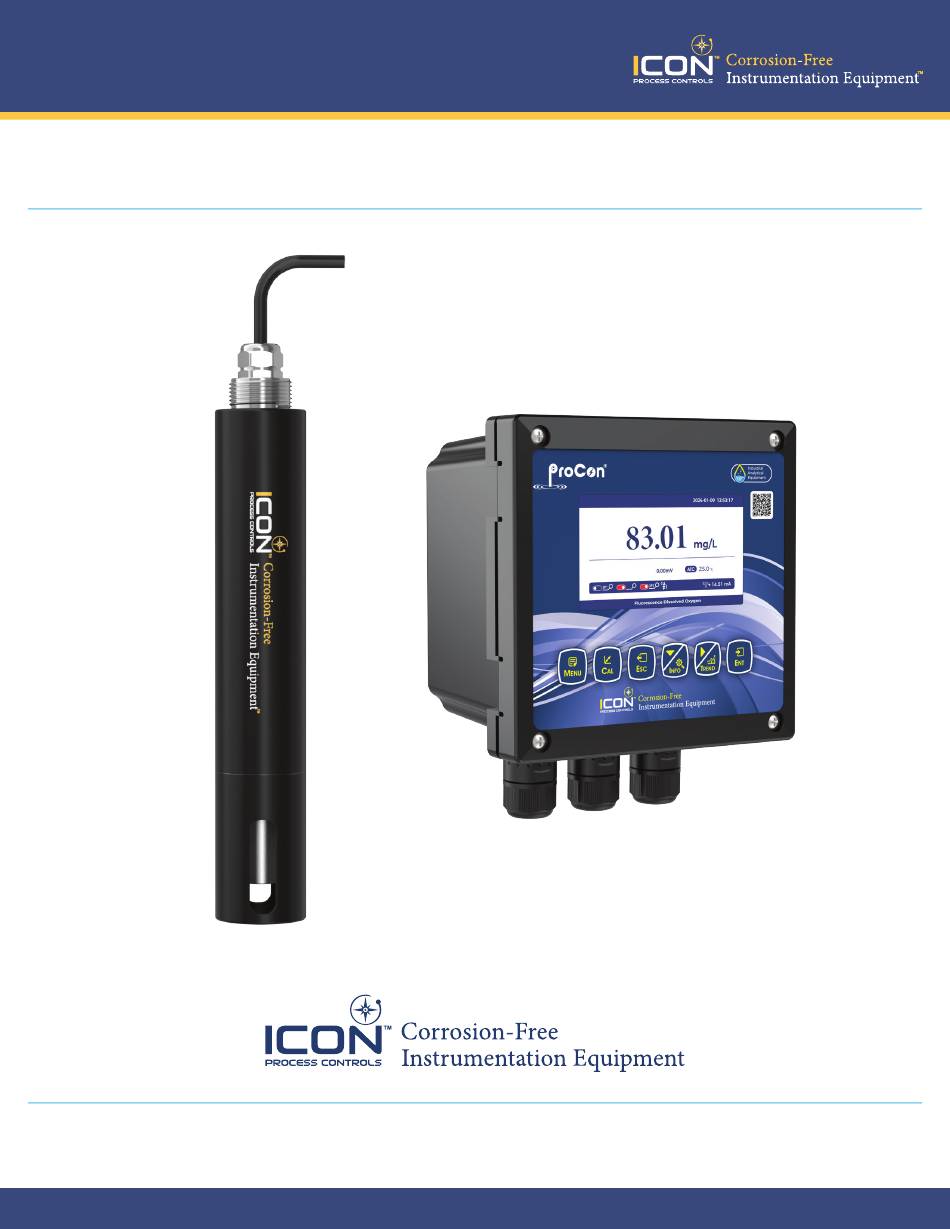

ProCon
— DO3000-C Series
®
Dissolved Oxygen Controller
Quick Start Manual
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
1
25-0671 © Icon Process Controls Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ProCon DO3000-C Series and is the answer not in the manual?

Questions and answers

Related Manuals for Icon Process Controls ProCon DO3000-C Series

Summary of Contents for Icon Process Controls ProCon DO3000-C Series

  • Page 1 ProCon — DO3000-C Series ® Dissolved Oxygen Controller Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 25-0671 © Icon Process Controls Ltd.
  • Page 2 The Dissolved Oxygen Controller is a microprocessor-based water quality online monitoring control instrument. It is widely used in drinking water treatment plants, drinking water distribution networks, swimming pools, water treatment projects, sewage treatment, water disinfection and other industrial processes. 25-0671 © Icon Process Controls Ltd.
  • Page 3 No strong magnetic field interference around except the geomagnetic field Working Temperature 14 ~ 140 -10~60°C Relative Humidity ≤90% Waterproof Rating IP65 Weight 0.8kg Dimensions 144 x 114 x 118mm Installation Opening Size 138 x 138mm Installation Methods Panel Wall Mount Pipeline *Optional 25-0671 © Icon Process Controls Ltd.
  • Page 4 ProCon — DO3000-C Series ® Dissolved Oxygen Controller Dimensions 118mm 144mm 26mm M4x4 45x45mm 138mm +0.5mm Back Fixed Hole Size Embedded Mounting Cut-out Size 25-0671 © Icon Process Controls Ltd.
  • Page 5 D+ D- Schematic of Installation Wall Mount Installation 150.3mm 6x1.5mm Schematic of Installation a) Install a mounting bracket for the instrument b) Wall screw fixation Top view of mounting bracket. Pay attention to installation direction 25-0671 © Icon Process Controls Ltd.
  • Page 6 5-10 Meters, insert the line with corresponding label or color wire on the sensor into the corresponding terminal inside the instrument and tighten it. 25-0671 © Icon Process Controls Ltd.
  • Page 7 Return Measurement | Previous Menu Keypad Operation Short Press: Release the key immediately after pressing (Default to short presses if not specified above). Long Press: Press the button for 3 seconds and then release it. 25-0671 © Icon Process Controls Ltd.
  • Page 8 (Blue is OFF & Red is ON) Measurement Mode Setting Mode Measurement Calibration Alarm Current Setting Communication System Fluorescence Dissolved Oxygen Fluorescence Dissolved Oxygen Calibration Mode Trend Chart Display Calibrating 8.25 mg/L Fluorescence Dissolved Oxygen Fluorescence Dissolved Oxygen 25-0671 © Icon Process Controls Ltd.
  • Page 9 0.00 mg/L (Default) On-site Query Slope 1.000 (Default) Main (Default) Channel Temp Low Alarm Alarm Mode High Alarm (Default) Description Alarm Relay 1 Normally Open (Default) Status Normally Closed Limit Value 20.00 mg/L Hysteresis 0.00 mg/L 25-0671 © Icon Process Controls Ltd.
  • Page 10 Limit Value 122.0ºF Hysteresis 32.0ºF Duration of Clean 000001 Min Off Time 000001Min Auto Clean Select Relay Relay 1 | Relay 2 | Relay 3 | N/A (Default) Clean Mode Hold (Default) | Real Time 25-0671 © Icon Process Controls Ltd.
  • Page 11 30 Sec | 5 min | 15 min | 30 min | Always On Year / Month / Date Description System Set Time Hr : Min : Sec Password 000000 (Default) Series No. 0000047105 Version 6.2.36 Language English 25-0671 © Icon Process Controls Ltd.
  • Page 12 Maintenance Current 2 | 20mA Enter Value Relay 1 Relay Test Relay 2 Relay 3 7.5 s 1 min Data Recording 5 min Interval Data Log 10 min 60 min Data Query Enter Value 25-0671 © Icon Process Controls Ltd.
  • Page 13 77°F. None: The instrument will not display a temperature value. The user can choose between two temperature units in the unit Unit settings: Celsius ( C) or Fahrenheit (ºF). 25-0671 © Icon Process Controls Ltd.
  • Page 14 If discrepancies are found, use this function to adjust the error. On-site Query Slope : The slope value obtained from "On-site calibration" is stored in this setting, with the factory default set to 1.0000. 25-0671 © Icon Process Controls Ltd.
  • Page 15 The Default Output Type is "4-20mA". The Upper Limit Value Corresponds to Output Type Current 1 | 2 20mA and the Lower Limit Value corresponds to 4mA. Upper Limit Set the Upper Limit Value Lower Limit Set the Lower Limit Value 25-0671 © Icon Process Controls Ltd.
  • Page 16 Important: Ensure that the multimeter has sufficient power. Insufficient power may cause deviations in current measurement data. After selecting the appropriate relay, press [ENT] to hear the tick sound, indicating that the Relay Test relay is functioning normally. 25-0671 © Icon Process Controls Ltd.
  • Page 17 Data Recording Interval : Users can select the recording interval here. Once selected, the instrument will save the data at the specified interval. Data Query : Enter the number of records to query here, then press [ENT] to retrieve the historical data. 25-0671 © Icon Process Controls Ltd.
  • Page 18 Function codes indicate the type of operation performed by the server. CRC domain is the result of the “ redundancy check” calculation, which is executed according to the information content. 25-0671 © Icon Process Controls Ltd.
  • Page 19 The entire message frame must be sent in a continuous character stream. When the pause time interval between two characters exceeds 1.5 characters, the information frame is considered incomplete and the receiver does not receive the information frame. 25-0671 © Icon Process Controls Ltd.
  • Page 20 Request: Function Code 1 byte 0x03 Start Address 2 byte 0x0000..0xfffff Read Register Number 2 byte 1...125 Fig.8 : Read and hold register request frame 25-0671 © Icon Process Controls Ltd.
  • Page 21 Number of input registers 2 byte 2 byte Number of bytes 1 byte 1 byte Register Values N x 2 bytes N x 2 bytes Fig.11 : Write Multiple Register Request Frames *N = Register Number 25-0671 © Icon Process Controls Ltd.
  • Page 22 Data Format in Instrument Floating Point Definition: Floating point, conforming to IEEE 754 (single precision) Description Symbol Index Mantissa 30...23 22...0 22...0 Index Deviation Figure 14 : Floating Point Single Precision Definition (4 bytes, 2 MODBUS Registers) 25-0671 © Icon Process Controls Ltd.
  • Page 23 (outdata + 3) stores data as 0x00 2. If the compiler used by the user does not implement the library function of this function, the following functions can be used to achieve this function: 25-0671 © Icon Process Controls Ltd.
  • Page 24 0x00, 0x00, 0x8d and 0x41. Then the user can get the decimal number of the corresponding temperature value through the following call statement. That is temperature = 17.625. Float temperature = floatTOdecimal( 0x00, 0x00, 0x8d, 0x41) 25-0671 © Icon Process Controls Ltd.
  • Page 25 The dissolved oxygen content can be calculated at different atmospheric pressures as follows. A 101.325 In formula In formula: A -- Solubility of atmospheric pressure at P(Pa); A-- Solubility at atmospheric pressure of 101.325(Pa); P-- pressure, Pa. 25-0671 © Icon Process Controls Ltd.
  • Page 26 When cleaning the plastic shell of the instrument, please use a soft cloth and a soft cleaner to clean the shell. ■ Check whether the wiring on the terminal of the instrument is firm. Pay attention to disconnect the AC or DC power before removing the wiring cover. 25-0671 © Icon Process Controls Ltd.
  • Page 27 Icon Process Controls Ltd for a period of one year from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is solely...
