Summary of Contents for hager TYBS692F

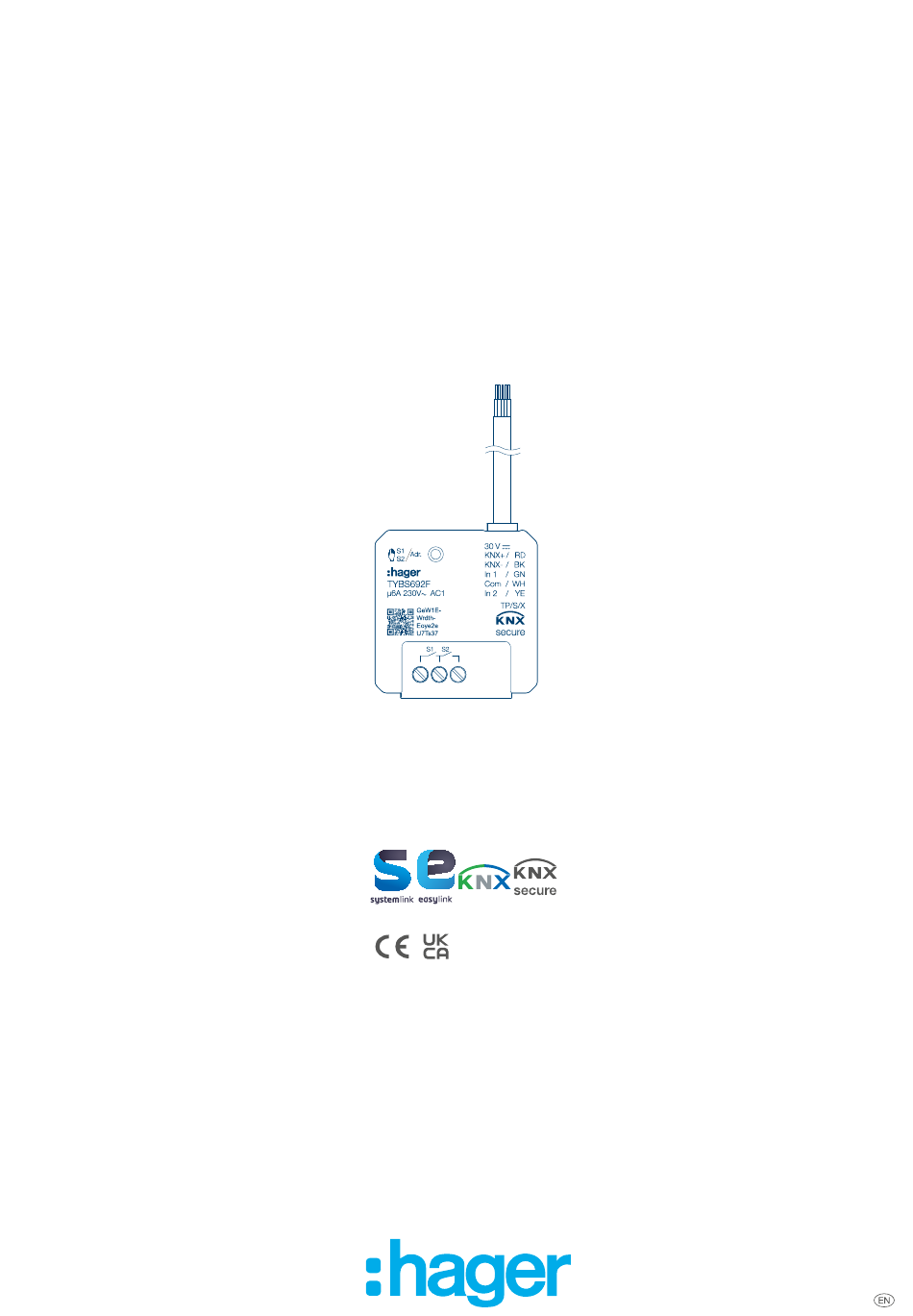

- Page 1 Operating and assembly instructions KNX building manage- ment system KNX switching/blind actu- ator with binary inputs KNX Secure switching/blind actuator 2-/1-gang + 2 binary inputs, 6 A, flush-mounted TYBS692F...
-
Page 2: Table Of Contents
Contents Contents Contents............... 2 Introduction..............3 Safety instructions............5 Scope of delivery............6 Design and layout of the device........ 8 Function................ 9 KNX system information......................9 KNX systemlink system information.................. 9 KNX easylink system information..................9 Functional description......................9 Information for qualified electricians.......11 Installation and electrical connection................ -
Page 3: Introduction
KNX-certified Supports KNX Data Secure Compatibilität with Compatibility with KNX S-mode (ETS≥ 5.6.x) Hager easyTool Suitable for use in Aus- Suitable for use in China Suitable for use in Morocco tralia and New Zealand Manufacturer’s information is in accordance with § 18... - Page 4 Introduction Symbol Warning word Consequence of non-observance Danger Leads to serious injuries or death. Warning Can lead to serious injuries or death. Caution Can lead to minor injuries. Caution Can lead to device damage. Note Can lead to physical damage. Symbol Description Warning against electric shock.
-
Page 5: Safety Instructions
Safety instructions Safety instructions Electrical devices must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, guidelines, regulations, directives, safety and accident prevention directives of the country. Hazard due to electric shock. Disconnect before working on the device or load. Take into ac- count all circuit breakers that supply dangerous voltages to the device or load. -
Page 6: Scope Of Delivery
Scope of delivery Scope of delivery https://hgr.io/r/TYBS692BF Fig. 1: Scope of delivery TYBS692F... - Page 7 Design and layout of the device...
-
Page 8: Design And Layout Of The Device
Design and layout of the device Design and layout of the device Fig. 2: Design and layout of the device TYBS692F Illuminated button for manual operation/programming button Connection of load(s) KNX bus connection cable/connection inputs... -
Page 9: Function
Function KNX system information Function KNX system information System information This device is a product of the KNX system and corresponds to the KNX guidelines. Detailed spe- cialised knowledge obtained from KNX training courses is required for understanding. The device is KNX Data Secure-compatible. KNX Data Secure can be configured in the ETS project and offers protection against manipulation in building automation. - Page 10 Function – Linking and forced control function – Central switching functions with group feedback – Time functions: on delay, off delay, stair light switch with pre-warning function – Scene function – Operating hour meter Properties of roller shutter/blind operation – Position can be started directly –...
-
Page 11: Information For Qualified Electricians
Information for qualified electricians Installation and electrical connection Information for qualified electricians Installation and electrical connection Danger Electric shock when live parts are touched! An electric shock can lead to death! Isolate all connection cables before working on the device and cover any live parts in the area! Connection and installation of the device Attention... - Page 12 Do not connect different phases (outer conductors) to the device. Fig. 3: TYBS692F lamp load connection diagram Fig. 4: TYBS692F motor load connection diagram Install a miniature circuit breaker of max. 10 A for device protection.
-
Page 13: Commissioning
Information for qualified electricians Commissioning Fig. 5: Mounting in double wall box Commissioning The device can be programmed in three ways: – KNX systemlink mode (standard ETS programming) see KNX systemlink commissioning , page 13 – KNX Secure mode see Commissioning in KNX Secure mode , page 14 –... - Page 14 Information for qualified electricians Commissioning Load the application software into the device. Switch on the mains voltage Commissioning in KNX Secure mode The device has been installed and connected so that it is ready for operation. Activate safe commissioning mode in ETS. Enter the device certificate (QR code) (Fig.
-
Page 15: Commissioning The Device
Information for qualified electricians Commissioning QR code Ref. Num. Physikal. Adresse QR code Ref. Num. Physikal. Adresse 123... Fig. 9: Storing the device certifi- Fig. 10: Noting down the article number and cate in the project documentation physical address for the device certificate easylink commissioning The function of the device is configuration-dependent. -
Page 16: Dismantling The Device
Load is activated LED flashes No load connected Table 2: Functionality of the outputs >5s TYBS692F >5s Fig. 11: Functional test Dismantling the device All the cables delivering voltage to the device are switched off. Pull device out of wall box. -
Page 17: Appendix
Appendix Technical data Appendix Technical data KNX Medium TP1 - 256 Configuration mode S-Mode, E-Controller KNX supply voltage 21 ... 32 V SELV KNX current consumption Type 5 mA Minimum switching current 230 V AC 10 mA Breaking capacity 6 A AC1 230 V~ KNX connection mode KNX connecting terminal Operating height... -
Page 18: Disposal Note
Appendix Disposal note Disposal note Disposal note Correct disposal of this product (electrical waste). (Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its documentation indicates that it should not be disposed of with other household waste at the end of its working life. - Page 19 Hager Controls BP10140 67703 Saverne Cedex France +33 (0) 3 88 02 87 00 info@hager.com hager.com 2025-04...
