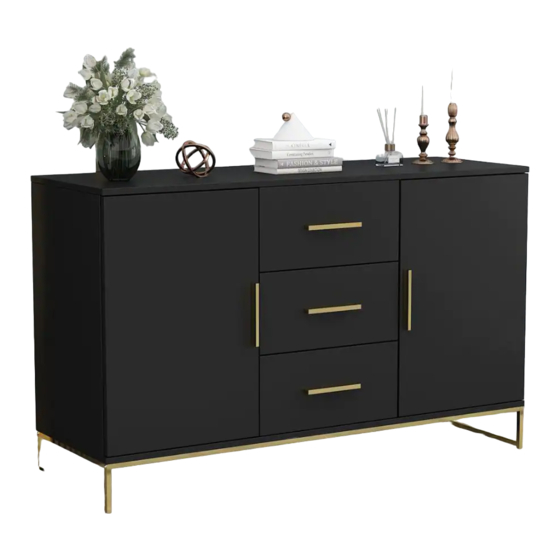

- Page 1 Sideboard Version:07/13/2022 1/16...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size E x 20 A x 24 B x 6 D x 20 C x 24 4 x 14 mm 15 x 9 mm 4 x 30 mm...
- Page 4 4/16...
- Page 5 CR x 3 CL x 3 C x 12 3 x 12 mm Fix slide rail(CL) and (CR)to No.3 and No.4 plates with screw(C) as shown. Please pay attention to the holes where the accessories are inserted. 5/16...
- Page 6 D x 8 F x 8 8 x 30 mm 6 x 35 mm Insert quickfit screw(D) and wooden dowel(F) into No.1 plate with screwdriver as shown. Please note don't use an electric screwdriver or use force to rotate, may cause crack. 6/16...
- Page 7 E x 8 15 x 9 mm Attach No.2,3,4,5 plates to No.1 plate, turn cam lock(E) clockwise to tighten as shown. 7/16...
- Page 8 F x 8 8 x 30 mm Slide No.6 plates to available slots as shown. Insert wooden dowel(F) into corresponding holes in No.2,3,4,5 plates as shown. 8/16...
- Page 9 G x 8 4 x 35 mm Cover No.7 plate to the top and fix with screw(G) as shown. Please note don't use an electric screwdriver or use force to rotate, may cause crack. H x 4 L x 1 6 x 30 mm Attach part 8 to metal bar 9 with screw(H) as shown.
- Page 10 R x 4 L x 1 B x 6 4 x 30 mm 6 x 25 mm Fix leg component to No.7 plate with screw(R) and (B) as shown. A x 8 D x 12 J x 5 K x 10 Q x 4 4 x 14 mm 6 x 35 mm...
- Page 11 A x 16 4 x 14 mm Attach No.10 to side plates by fixing hinge with screw(A) as shown. 11/16...
- Page 12 If there is misalignment after you install, adjust the screw to the best condition 12/16...
- Page 13 S x 8 Insert part(S) into side plates as shown. Put No.11 shelves. 13/16...
- Page 14 G x 12 4 x 35 mm Attach No.13 and No.14 to No.15 plate with screw(G) as shown. Slide No.16 plate to available slots as shown. 14/16...
- Page 15 E x 12 15 x 9 mm Attach No.12 plate to the component and turn cam lock(E) clockwise to tighten as shown. C x 12 DR x 3 DL x 3 3 x 12 mm Fix runner(DL) and (DR) to No.13 and No.14 plates respectively with screw(C) as shown.
- Page 16 N x 2 M x 2 P x 2 G x 2 4 x 35 mm 4 x 14 mm 6 x 30 mm Align rails, insert all drawers. Fix par(M) to back plate with screw(N) at first, and fix part(M) into part(P) with screw(G) as shown.
-
Page 17: Warranty Claims
WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part. - Page 18 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
