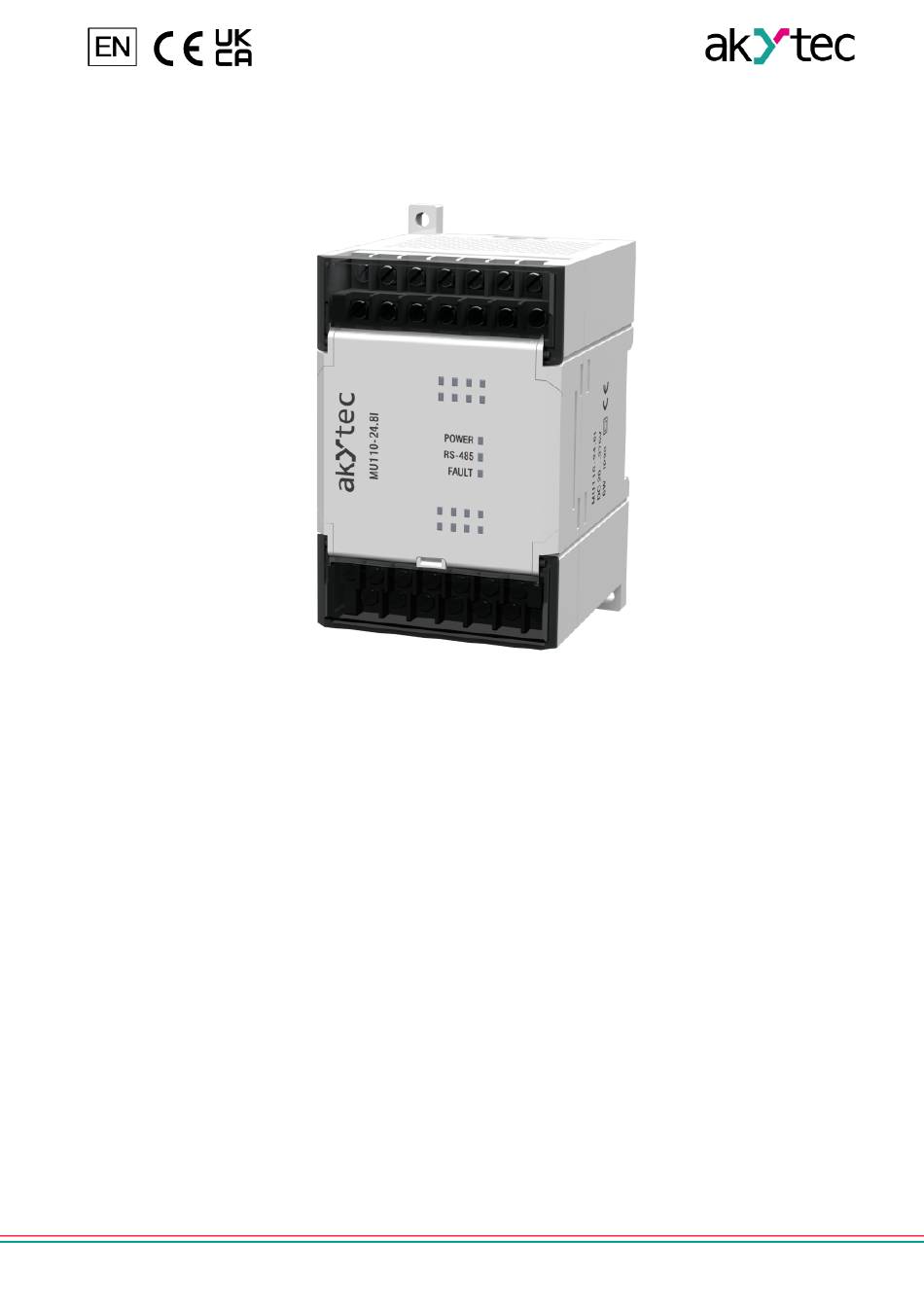

- Page 1 МU110-24.8I Analog output module 8 channel User guide МU110-24.8I_3-EN-143596-1.1 © All rights reserved Subject to technical changes and misprints akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 2: Table Of Contents
7. Maintenance........................15 8. Transportation and storage ....................16 9. Scope of delivery........................17 Appendix A. Dimensions .......................18 Appendix B. Galvanic Isolation ....................20 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 3: Introduction
If the supply voltage is lower than 20 V DC, the device cannot operate properly but will not be damaged. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 4 To avoid damage to the device, keep the device in the warm environment for at least 1 hour before powering on. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 5: Overview
– X3 – service function – X1 – DRAM write-protection All the jumpers are in OFF position by default. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 6: Specifications
Transportation and storage -25…+55°C Relative humidity up to 80% (at +25°C, non-condensing) Altitude up to 2000 m above sea level akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 7: Configuration And Operation
Network parameters 14.4 Baud rate, kbit/s 19.2 28.8 38.4 57.6 115.2 Data bits* none PrtY Parity* even none akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 8: Output Functional Test
– The functional test is successful if the voltage is within the range between 10±0.05 V at 20 mA and 2±0.05 V at 4 mA. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 9: Fault Condition
All variables and parameters in Table 4.3 are of the INT16 type. R – read access W – write access akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 10: Hardware Write Protection Of Permanent Memory
– To change the configuration parameters, jumper X1 must be removed again. – As long as jumper X1 is inserted, the input counter will be reset after any power loss. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 11: Installation
Connection to the RS485 interface is carried out via a twisted pair cable. 5.2.1 Outputs MU110-24.8I has 8 analog outputs 4-20 mA which can be controlled via RS485 network. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 12 Output 8- (AO8B) An external voltage source for analog outputs is required. The voltage is calculated as follows: where akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 13 NOTE The voltage of an external auxiliary voltage source may not exceed 36 V. Fig. 5.2 Output wiring akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 14: Factory Settings Restoration
8. The main window of the Configurator opens. Saved user parameters of the module can be read now. 9. Open folder ‘Network parameters’ and note the user network parameters akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 15 Baud rate, bit/s 9600 Data bits Parity PrtY None Stop bits Sbit Address bits A.Len Address Addr Response delay, ms Rs.dL akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 16: Maintenance
The device should be cleaned with a damp cloth only. No abrasives or solvent- containing cleaners may be used. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 17: Transportation And Storage
Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 18: Scope Of Delivery
9 Scope of delivery 9 Scope of delivery – Module MU110-24.8I – Short guide akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 19: Appendix A. Dimensions
Appendix A. Dimensions Appendix A. Dimensions Fig. A.1 External dimensions Fig. A.2 Wall mounting dimensions akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 20 Appendix A. Dimensions Fig. A.3 Replacement of terminal blocks akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 21: Appendix B. Galvanic Isolation
Appendix B. Galvanic Isolation Appendix B. Galvanic Isolation Fig. B.1 Galvanic isolation of MU110–24.8I akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
