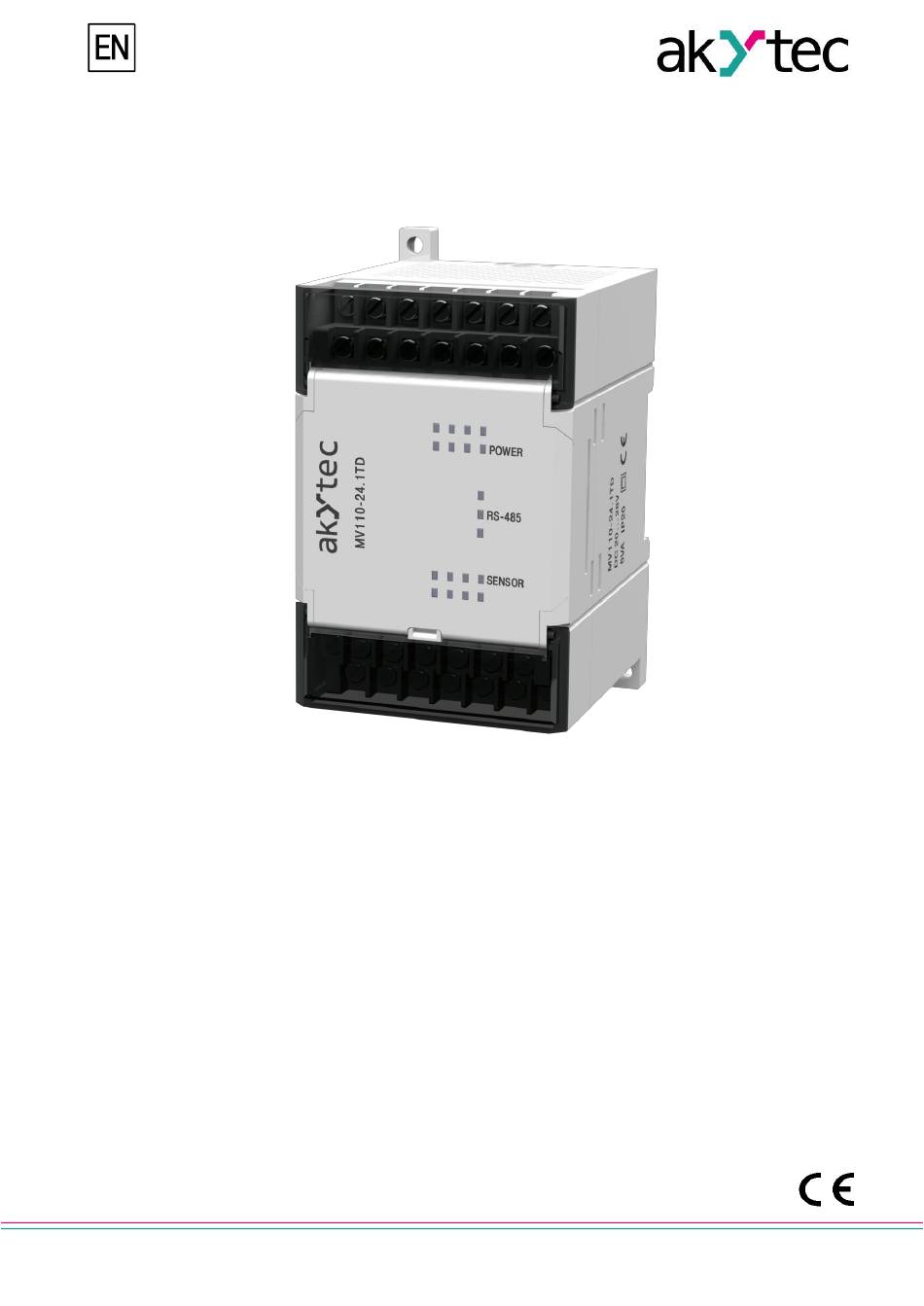

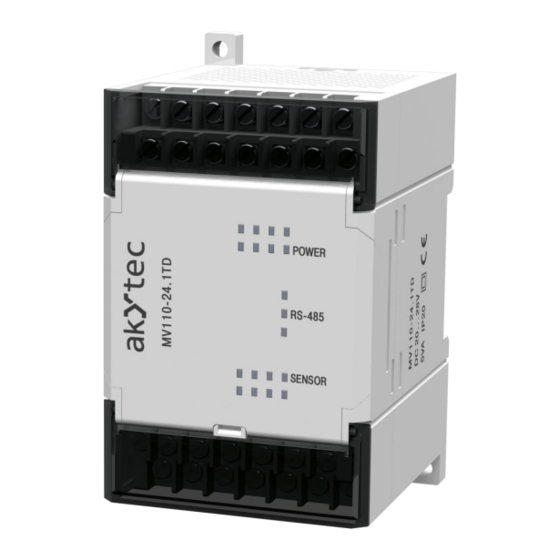

- Page 1 MV110-24.1TD Strain gauge module User guide MV110-24.1TD_2017.06_0238_EN © All rights reserved Subject to technical changes and misprints akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 2: Table Of Contents
11 Scope of delivery ............................16 Appendix A Dimensions ........................... 17 Appendix B Modbus addressing ........................18 Appendix С Calibration ............................. 21 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 3: Overview
All modules can be used as Slave devices only. Master device can be PLC, computer with SCADA software or control panel. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 4: Specifications
Sampling frequency, Hz DC excitation voltage AC excitation voltage 8.197 16.39 19.61 24.27 25.77 34.25 42.37 44.64 50.51 69.44 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 5: Environmental Conditions
95% (at +35°C, non-condensing) Relative humidity IP Code Enclosure IP20, terminals IP10 Altitude up to 2000 m above sea level akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 6: Safety
The device should not be used in an explosive environment. – The device should not be used in an atmosphere with chemically active substance. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 7: Design
– “SENSOR” LED lights if sensor break or measuring channel overload Fig. 4.1 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 8: Installation
Sensor feedback - GND_RS RS485 ground not connected RS485 D+ EXC- Excitation voltage - RS485 D- SHIELD Sensor shield akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 9 EXC (+/-) and SENS (+/-) should be bridged on the terminal block, as shown in Fig. 5.1. Fig. 5.2 6-wire connection akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 10: Configuration
Sbit Stop bits * Data bits * A.Len Address bits 1…247 Addr Device address 0…255 Rs.dL Response delay, ms akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 11 Table B2 * Invalid network parameter combinations: – prty=0; sbit=0; len=0 – prty=1; sbit=1; len=1 – prty=2; sbit=1; len=1 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 12: Operation
When three containers each 5 kg are weighed, set the parameters as follows: “Tare weight”– 5 “Tare weight multiplying” – 3 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 13: Restore Factory Settings
– start the M110 Configurator – enter the noted network settings in the “Connection to device” dialog window akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 14 Baud rate, bit/s 9600 Data bits Parity prty none Stop bits sbit Address bits a.len Address addr Response delay, ms rs.dl akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 15: Maintenance
The device should be cleaned with a damp cloth only. No abrasives or solvent-containing cleaners may be used. The safety information in section 3 must be observed when carry- ing out maintenance. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 16: Transportation And Storage
Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 17: Scope Of Delivery
Scope of delivery 11 Scope of delivery – Module MV110-24.1TD – User guide – CD with software and documentation akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 18: Appendix A Dimensions
Appendix A Dimensions Appendix A Dimensions Fig. A.1 External dimensions Fig. A.2 Wall mounting dimensions akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 19: Appendix B Modbus Addressing
0 after Command Initializing and permanent 0x08 exe- Aply saving of new settings cuting Input parameters Channel state 0x09 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 20 19.61 Sampling (60 Hz suppression) frequency 0x91 Set.F 24.27 Hz 25.77 Hz 34.25 Hz 42.37 Hz (50 Hz suppression) akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
- Page 21 Calibration error neous calibration or with a valid error calibration connected Sensor status break Jumper JP1 See section 7 removed akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 22: Appendix С Calibration
“Lower calibration point (%)” 5 (%) – “Upper calibration point (units)” 900 (kg) – “Upper calibration point (%)” 90 (%) akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
