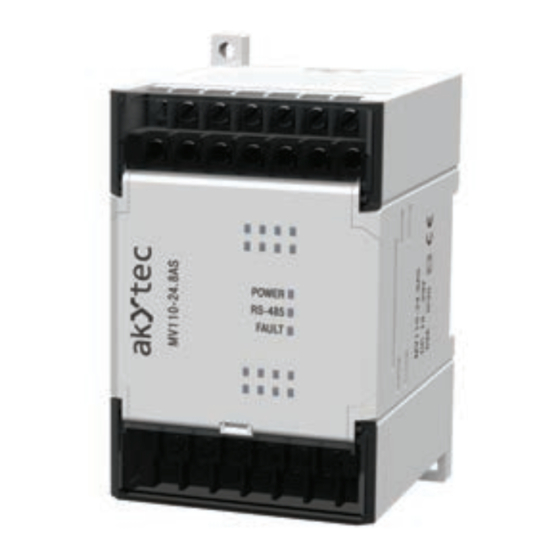

- Page 1 MV110-16D(DN) Digital input module 16 channel User guide...
-
Page 2: Table Of Contents
Configuration ........................23 Operation .......................... 26 Input and counter status ....................26 Fault condition ......................26 Memory addressing ...................... 26 Restore factory settings ....................28 akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 3 Maintenance ........................32 Transportation and Storage .................... 33 Scope of delivery ......................34 Appendix A. Dimensions ......................... 35 akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 4: Description
When switching off power, the actual count state remains retained in permanent memory. The counter is set to 0, if it has been reached an overflow, and counting continues. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 5: Rs485 Network
RS485 serial interface is designed as 2-wire system in half duplex mode. The modules support Mod- bus RTU, Modbus ASCII and akYtec protocols. A network consists of one master and can have up to 32 slaves. The maximum cable length is 1200 m. Quantity of slaves and the cable length can be increased using an RS-485 interface repeater. -
Page 6: Construction
X1 Hardware write protection of permanent memory (see 4.1.1) All 3 jumpers are not inserted as supplied. Fig. 1.1 Front view of MV110- akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 7: Specifications
Table 2.1 General technical data Power supply 24 (20…28) V DC Power consumption, max. Inputs Digital Analog ̶ Outputs Digital ̶ Analog ̶ akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 8 8.5 mA (with 27 V) Logical „1“, min. ̶ 4.5 mA Logical „0“, max. ̶ 1.5 mA Lead resistance, max. 100 ohm ̶ akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 9: Environmental Conditions
Transportation and storage -25…+55°C Relative humidity up to 80% (at +25°C, non-condensing) IP code IP20 Altitude up to 2000 m above sea level akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 10: Safety
The device should not be used in an explosive environment. – The device should not be used in an atmosphere with chemically active substance akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 11: Installation
WARNING Ensure that the mains voltage matches the voltage marked on the nameplate! Ensure that the device is provided with an electric fuse! akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 12: Hardware Write Protection Of Permanent Memory
– Open the cover on the front panel of the module (see Fig. 4.1) – Put the jumper X1 in the position “closed” akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 13: Mv110-16D
All the COM terminals are internally wired together. – The common resistor of the sensor output together with connecting cables may not exceed 100 ohm. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 14 Fig. 4.1 Electrical connections of MV110-16D akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 15 DI14 DI14 DI15 DI15 Common negative Common negative DI16 DI16 Connection variants for different signal types are shown in Figures 4.2 – 4.3. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 16 Fig. 4.2 Connection of switch contacts to the MV110-16D akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 17 Fig. 4.3 Connection of 3-wire sensors with NPN transistor outputs to the MV110-16D akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 18: Mv110-16Dn
DI1…DI4 – terminal SS1 – inputs DI5…DI8 – terminal SS2 – inputs DI9…DI12 – terminal SS3 inputs DI13…D16 – terminal SS4 – akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 19 Fig. 4.4 Electrical connections of MV110-16DN akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 20 DI15 DI15 DI16 DI16 Input voltage 13- Input voltage 5-8 Connection variants for different signal types are shown in Figures 4.5 – 4.7. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 21 Fig. 4.5 Connection of switch contacts to the MV110-16DN akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 22 Fig. 4.6 Connection of 3-wire sensors with NPN transistor outputs to the MV110-16D akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 23 Fig. 4.7 Connection of 3-wire sensors with PNP transistor outputs to the MV110-16DN akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 24: Configuration
If it does not happen, parameters of the configurator have to be changed. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 25 Baud rate, kbit/s 19.2 28.8 38.4 57.6 115.2 Data bits * none PrtY Parity * even none Sbit Stop bits * A.Len Address bits akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 26 0…45 Output parameters Tin.C Debouncing filter * Invalid network parameter combinations: – prty=0; sbit=0; len=0 – prty=1; sbit=1; len=1 – prty=2; sbit=1; len=1 akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 27: Operation
If t.out parameter is set to 0, ‘Fault Condition’ is not defined. Memory addressing All variables and parameters in the Table 6.2 are of the type UNIT16. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 28 Counter status of the input 2 0..65535 0041 0065 … … … … … Counter status of the input 16 0..65535 004F 0079 akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 29: Restore Factory Settings
In the window ‘Connection to device’ enter the values from the Table 7.1 or click the key ‘Use factory settings’ (see Fig. 7.1) akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 30 The main window of the Configurator opens. Saved user parameters of the module can be read now (see Fig. 7.2). – Open folder ‘Network parameters’ and note the user network parameters akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 31 Turn off the power supply – Take out the Jumper X2 – Close the front cover – Turn on the power supply again – Start M110 Configurator akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 32 Name Factory setting Baud rate 9600 Data bits Parity PrtY None Stop bits Sbit A.Len Address bits Address Addr Response delay, ms Rs.dL akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
-
Page 33: Maintenance
– checking the wiring (connecting leads, fastenings, mechanical damage) The safety information in section 3 must be observed when carrying out maintenance. akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 34: Transportation And Storage
The device may have been damaged during transportation. NOTICE Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 35: Scope Of Delivery
Scope of delivery – Module MV110-16D(DN) – User guide – CD with software and documentation akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... -
Page 36: Appendix A. Dimensions
Appendix A. Dimensions Fig. A.1 External dimensions akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de... - Page 37 Fig. A.2 Wall mounting dimensions akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
- Page 38 Fig. A.3 Replacement of terminal blocks akYtec GmbH Vahrenwalder Str. 269 A 30179 Hannover· Germany Tel.: +49 (0) 511 16 59 672-0 www.akytec.de...
