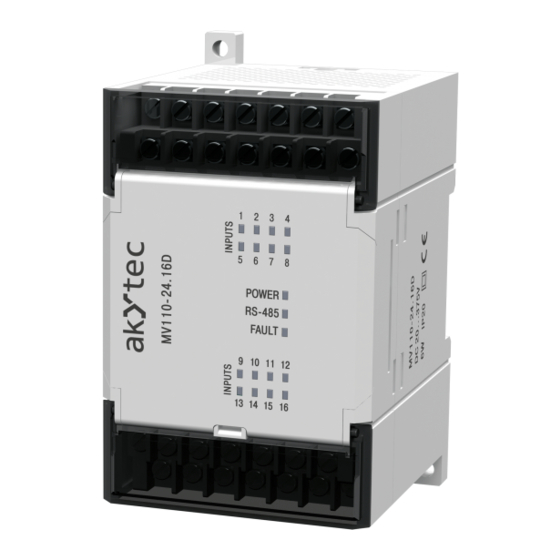

- Page 1 Analog input module 16 channel User guide MV110-16DN_2020.03_0294_EN © All rights reserved Subject to technical changes and misprints akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 2: Table Of Contents
Maintenance ............................... 14 Transportation and storage ........................15 10. Scope of delivery ............................16 Appendix A. Dimensions ..........................17 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 3: Description
16 LEDs „INPUTS“: light up, when at relative input is 1 ─ akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 4 Service function ─ Hardware write protection of permanent memory (see 4.1.1) All 3 jumpers are not inserted as supplied. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 5: Specifications
80% (at +25°C, non-condensing) Relative humidity IP code IP20 Altitude up to 2000 m above sea level akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 6: Safety
The device should not be used in an explosive environment. ─ The device should not be used in an atmosphere with chemically active substance akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 7: Installation
To the input of type DN can be connected: – potential-free contacts – NPN transistor outputs with open collector akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 8 Input voltage 5-8 Input voltage 13-16 Connection variants for different signal types are shown in Figures 4.2 – 4.4. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
- Page 9 Fig. 4.3 Connection of 3-wire sensors with NPN transistor outputs to the MV110-16DN Fig. 4.4 Connection of 3-wire sensors with PNP transistor outputs to the MV110-16DN akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 10: Configuration
Time-out, s akYtec Prot Protocol Modbus RTU Modbus ASCII 0…45 Rs.dL Response delay, ms Output parameters Tin.C Debouncing filter akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 11 Configuration * Invalid network parameter combinations: – prty=0; sbit=0; len=0 – prty=1; sbit=1; len=1 – prty=2; sbit=1; len=1 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 12: Operation
Counter status of the input 2 0..65535 0041 0065 … … … … … Counter status of the input 16 0..65535 004F 0079 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 13: Factory Settings Restoration
(see Fig. 7.2). – Open folder ‘Network parameters’ and note the user network parameters akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 14 9600 Data bits Parity PrtY none Stop bits Sbit Address bits A.Len Address Addr Response delay, ms Rs.dL akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 15: Maintenance
The safety information in section 3 must be observed when carry- ing out maintenance. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 16: Transportation And Storage
Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 17: Scope Of Delivery
Scope of delivery 10. Scope of delivery – Module MV110-24.16DN – Short guide akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 18: Appendix A. Dimensions
Appendix A. Dimensions Appendix A. Dimensions Fig. A.1 External dimensions Fig. A.2 Wall mounting dimensions akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 19 Appendix A. Dimensions Fig. A.3 Replacement of terminal blocks akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
