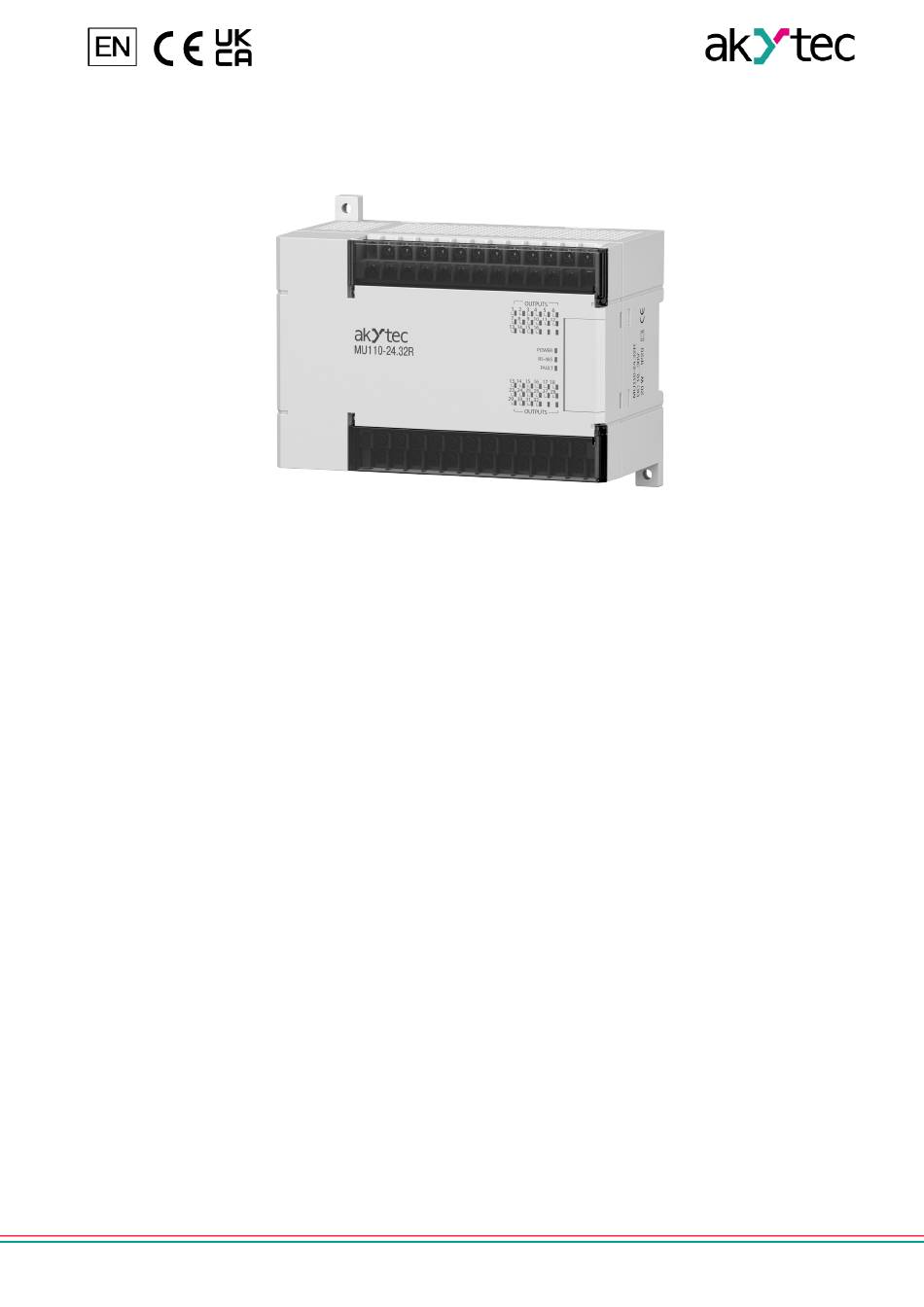

- Page 1 МU110-24.32R Digital output module 32 channel User guide МU110-24.32R_3-EN-145547-1.1 © All rights reserved Subject to technical changes and misprints akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 2: Table Of Contents
8. Transportation and storage ....................17 9. Scope of delivery........................18 Appendix A. Appendix A. Dimensions ...................19 Appendix B. Galvanic isolation ....................20 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 3: Introduction
If the supply voltage is lower than 20 V DC, the device cannot operate properly but will not be damaged. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 4 To avoid damage to the device, keep the device in the warm environment for at least 1 hour before powering on. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 5: Overview
– 2 – service function – 3 – DRAM write-protection (see Section 4.8) All switches are in OFF position by default. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 6: Specifications
Transportation and storage -25…+55°C Relative humidity up to 80% (at +25°C, non-condensing) Altitude up to 2000 m above sea level akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 7: Configuration And Operation
Baud rate, kbit/s 19.2 28.8 38.4 57.6 115.2 Data bits* none PrtY Parity* even none Sbit Stop bits* A.Len Address bits akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 8: Operation Modes
Table 4.2 Pulse width modulation Duty cycle Output status in configuration in Modbus command akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 9: Group Control
All modules can be used as Slave devices only. The Master device can be a PLC, a computer with SCADA software or a control panel. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 10: Modbus Registers
Table 4.4 Output status binary addresses for Modbus function 15 Address Output Access 0000 0000 0001 0001 … … … 001F 0031 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 11: Hardware Write Protection Of Permanent Memory
Thereby the following is to be observed: – In order to change configuration parameters, the switch should be set to OFF. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 12: Installation
If voltage rises, especially when inductive load (relay, coil etc.) is connected, keep the voltage peaks limited by protective measures. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 13 Output 24 COM2 Common COM6 Common negative for negative for outputs 5-8 outputs 21-24 Output 9 DO25 Output 25 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 14 DO32 Output 32 COM4 Common COM8 Common negative for negative for outputs 13-16 outputs 29-32 Fig. 5.2 MU110-24.32R outputs akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 15: Factory Settings Restoration
8. The main window of the Configurator opens. Saved user parameters of the module can be read now (see Fig. 6.2). 9. Open folder ‘Network parameters’ and note the user network parameters akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 16 Baud rate, bit/s 9600 Data bits Parity PrtY None Stop bits Sbit Address bits A.Len Address Addr Response delay, ms Rs.dL akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 17: Maintenance
The device should be cleaned with a damp cloth only. No abrasives or solvent- containing cleaners may be used. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 18: Transportation And Storage
Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 19: Scope Of Delivery
9 Scope of delivery 9 Scope of delivery – Module MU110-24.32R – Short guide akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 20: Appendix A. Appendix A. Dimensions
Appendix A. Appendix A. Dimensions Appendix A. Appendix A. Dimensions Fig. A.1 Dimensions Fig. A.2 Replacement of terminal blocks akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 21: Appendix B. Galvanic Isolation
Appendix B. Galvanic isolation Appendix B. Galvanic isolation Fig. B.1 MU110–24.32R galvanic isolation akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
