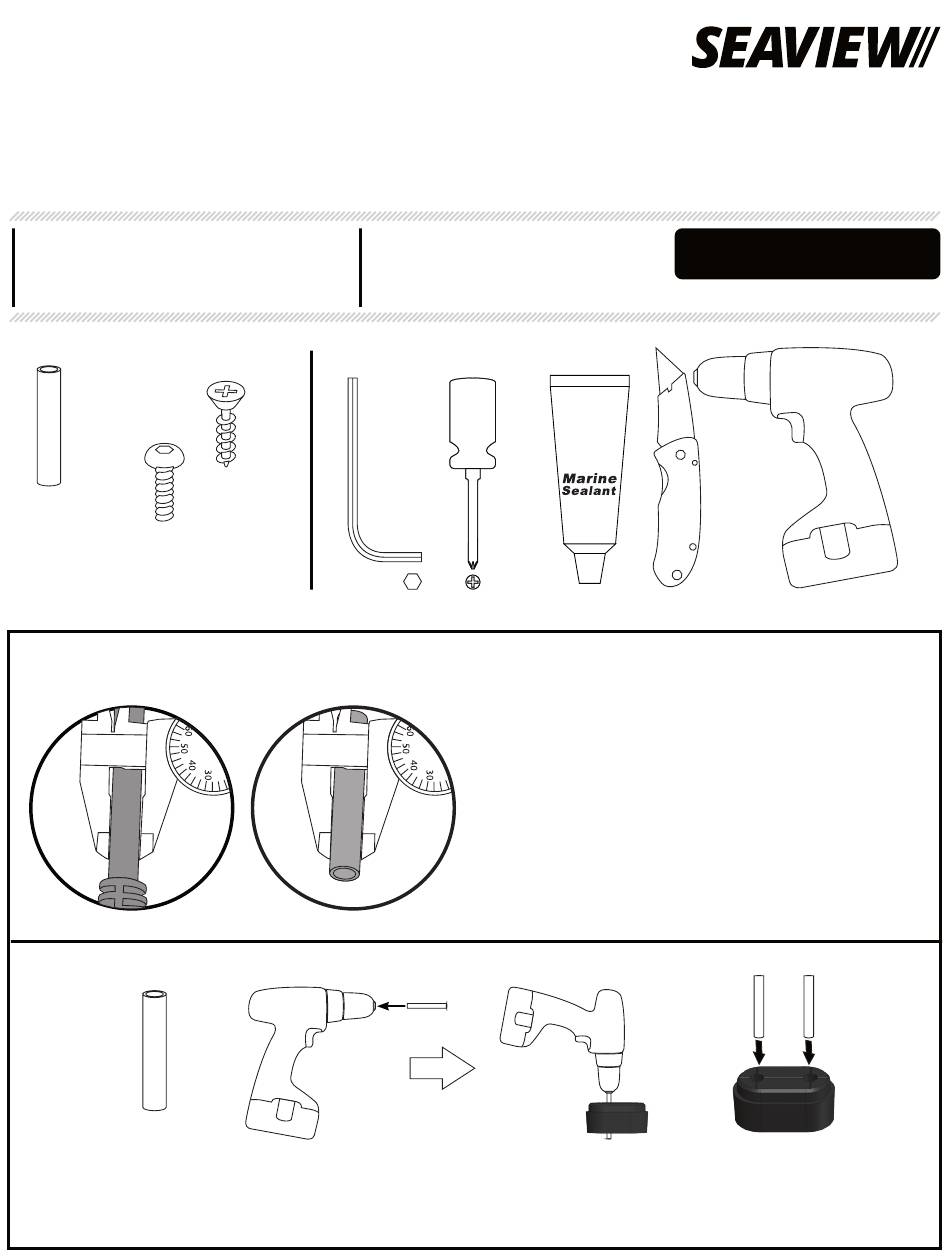

MULTI-HORIZONTAL
CABLE SEAL
INSTRUCTIONS
For Cable Seal Part Numbers
CGM90 | CGM90W
PARTS INCLUDED
x2
(CGDTKIT)
x1
1x 6mm
1x 8mm
(M4710BHCS)
1
2A
Take one of the two drill tubes
(included with the Cable Seal).
Double check to make sure the
tube is the right diameter for
your installation.
SUGGESTED TOOLS
x4
(6100SMS316)
2.5mm
Insert drill tube into drill motor, and leave enough length to get
through the tapered plug.
Measure your cable diameter and select the appropriate drill tube
provided. Cable diameter +.01/-.03
Drill tube is recommended. However, if using a drill bit, a
slightly larger drill bit is needed for drilling the rubber.
Apply a small amount of soapy water to the
drill tube and or the top of the rubber bung.
Then drill through the rubber while applying
pressure. Ensure there is at least 1/8" (3.2
mm) of rubber between each wire hole
Refer to website for most up to
date instructions and videos.
www.seaviewglobal.com
Advertisement
Related Manuals for SeaView CGM90
Summary of Contents for SeaView CGM90
- Page 1 MULTI-HORIZONTAL CABLE SEAL INSTRUCTIONS Refer to website for most up to For Cable Seal Part Numbers date instructions and videos. CGM90 | CGM90W www.seaviewglobal.com PARTS INCLUDED SUGGESTED TOOLS (6100SMS316) (CGDTKIT) 1x 6mm 1x 8mm (M4710BHCS) 2.5mm Measure your cable diameter and select the appropriate drill tube provided.
- Page 2 Intersection Intersection Ø0.25” Ø0.16” When routing two cables, the When routing three cables, the maximum diameter for each cable maximum diameter for each cable is Ø0.25”. is Ø0.16”. *The line intersections on the plug locate the drill tube center (do not move drill tube center any further left or right) Using a sharp razor blade Place the plastic base onto Drill pilot holes and secure...
