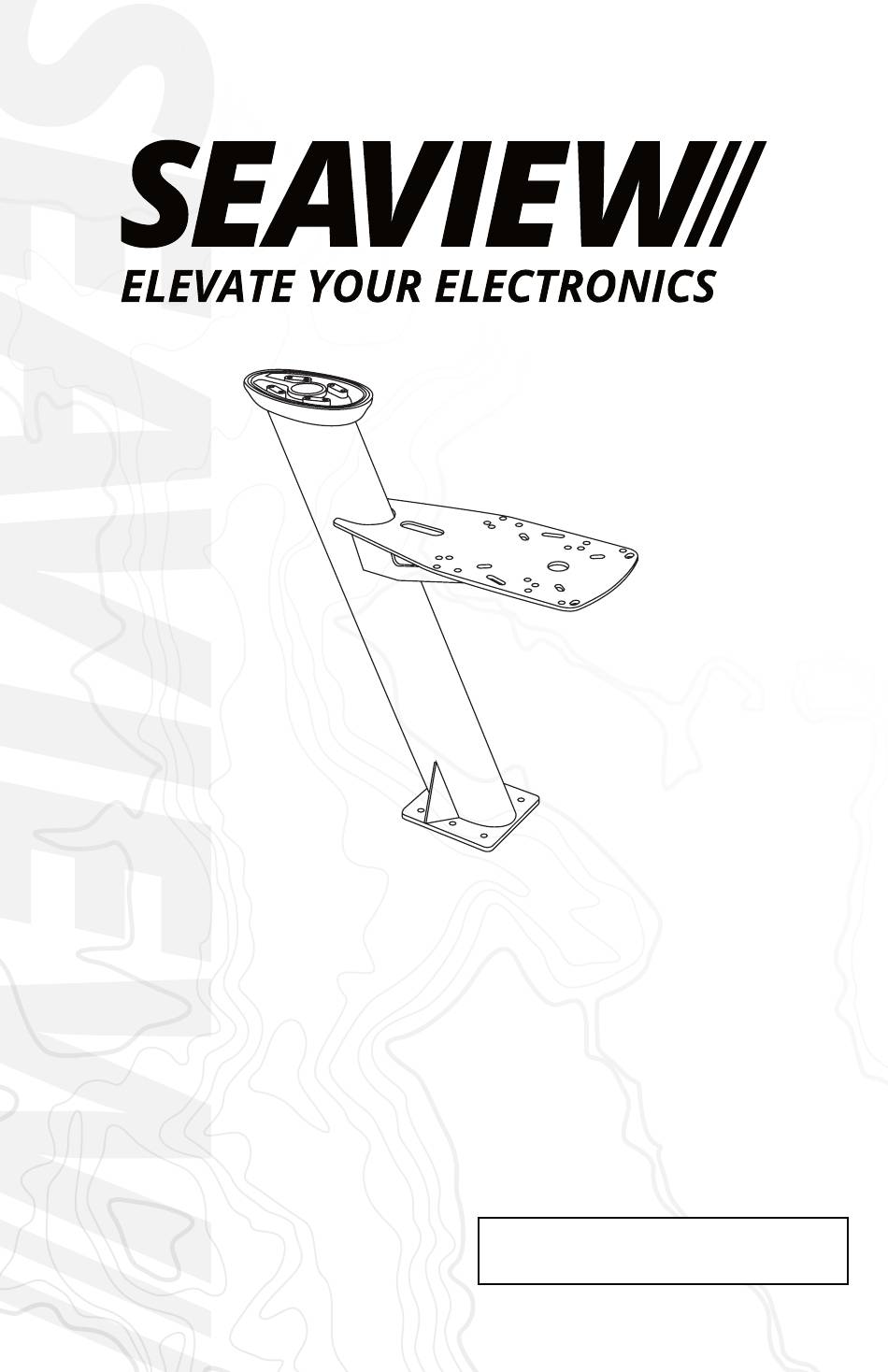

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Dual Mounts: PMA-DM124-M2 Refer to website for most up to date instructions and videos.
-
Page 2: Parts Included
PARTS INCLUDED TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 If you are using a Seaview Light Bar with your Dual Mount you do not use the pin. If you are not using a Seaview Light Bar then insert the pin as shown below. Insert the white Light Bar Plug and o-ring into the Light Bar hole in the back of the mount.
- Page 4 Mount the Seaview Modular Top Plate to the Dual Mount with the eight bolts that come with the Modular Top Plate. Then insert the rubber cable grommet into the Modular Top Plate. Refer to the provided Seaview Top Plate installation instructions for more information.
- Page 5 Using a hole saw, drill a hole to run the cabling through. Insert the rubber cable grommet under the lower platform as shown. Route all cables through the Dual Mount.
- Page 6 Route the additional cables through the lower platform. Apply to marine adhesive sealant to the base of the mount. Place the Dual Mount onto the mounting surface.
- Page 7 Apply marine adhesive sealant to the six nylon shoulder washers and insert them into the base. Use the provided backing plate and your own hardware to secure the Dual Mount. Apply marine adhesive sealant to all bolt holes.
- Page 8 Attach the marine electronics to the Dual Mount. Use the remaining four nylon shoulder washers with marine adhesive sealant when securing the closed dome radar. Use the hardware provided with your electronics to secure.
-
Page 9: Optional Accessories
Attwood LED Light Bar Top Light Bar Top Light. Light. with Perko with Attwood Incandescent LED Light, can fit Light, can fit GPS. GPS. SPREADER KIT SP2-MOD Allows user to mount GPS units or antennas on to a Seaview Modular Mount. -
Page 10: Cable Glands
OPTIONAL ACCESSORIES Call 800-655-7922 or visit www.seaviewglobal.com for available accessories. CABLE GLANDS Seaview Cable Glands provide waterproof cable routing. - Page 11 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 12 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
